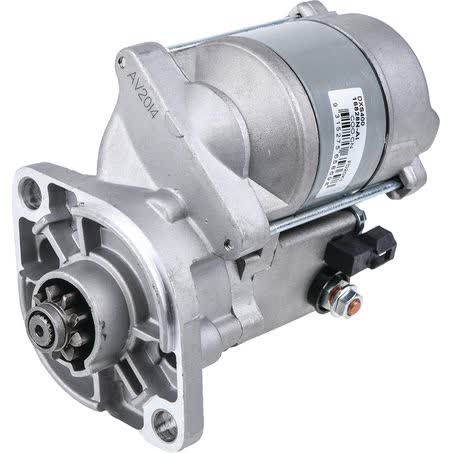

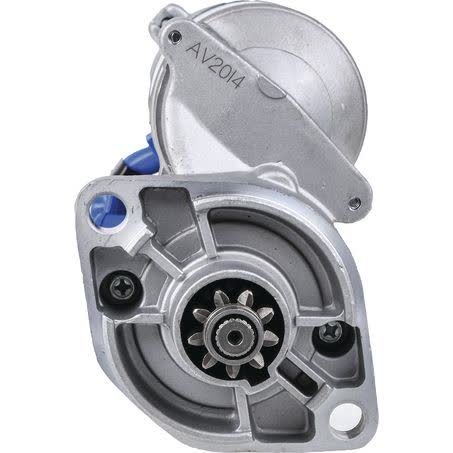

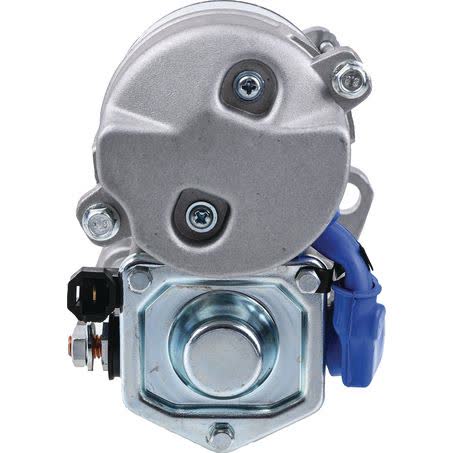

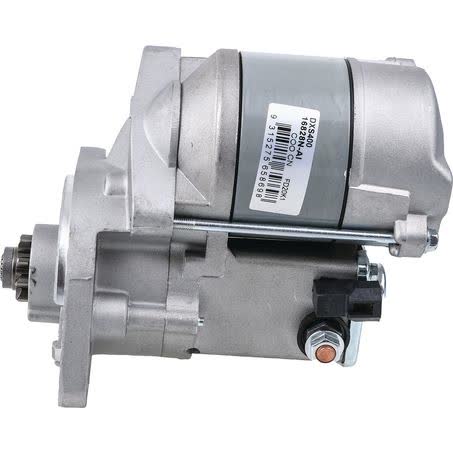

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS400

The OEX Starter Motor DXS400 is a new 12V starter motor in Denso style, set up for clockwise rotation with a 9 tooth pinion. It is listed with a 2 hole starter mount, 105mm mount centres, and a 194mm overall length, so it is important to check the physical dimensions as well as the application before ordering.

Key measurements include an 82.5mm flange diameter, 12mm mount hole diameter, 29mm pinion diameter, and 21mm pinion at rest. The unit is rated at 1.2kW and weighs 3.5kg, which makes the electrical and mounting details worth confirming against the original starter on the vehicle.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. This starter motor is backed by a 3 year passenger and 1 year commercial warranty, so it suits buyers looking for a new replacement with clear specification details and a defined warranty structure.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Denso style unit
• 2 hole starter mount
• New replacement part

Specifications

• Brand: OEX
• Part number: DXS400
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.2kW
• Suits unit make: Denso

Fitment guidance

• Fitment information supplied references Toyota Land Cruiser applications.
• Toyota Land Cruiser is listed in the fitment data, with model years shown from 1960 through 1972 in the preview provided.
• Do not rely on year alone; confirm the original starter design, mounting layout, and part number against the vehicle before purchase.

Application and Buying Notes

This starter is identified as OEX part number DXS400 and is described as a 12V, 9 tooth, clockwise Denso style unit. Those details matter because starter motors are matched by electrical rating, rotation, pinion design, and mounting pattern as much as by the vehicle nameplate.

The listed physical dimensions are 105mm mount centres, 82.5mm flange diameter, 12mm mount holes, and 194mm overall length. If the original starter differs in any of those points, it may not install correctly even if the vehicle family looks similar on paper.

The 1.2kW power rating and 3.5kg weight give a useful comparison point when checking against the removed unit. The pinion at rest is 21mm and the pinion diameter is 29mm, which are both worth checking if you are replacing a starter that has been modified, repaired, or sourced second-hand before.

Although Toyota Land Cruiser appears in the fitment data, the supplied preview is limited to a range of Land Cruiser model years and does not by itself confirm every engine, chassis, or trim variant. The safest approach is to match the part number, mount type, tooth count, rotation, and dimensions with the old starter before ordering.

This unit is new and covered by a 3 year passenger or 1 year commercial warranty. Warranty terms are useful, but they do not replace fitment verification, and they do not cover a mismatch between the vehicle application and the starter specification.

As with any starter motor replacement, check the battery condition, cable ends, earth connections, and ring gear condition when fitting. A correctly specified starter still needs the electrical system and mounting surfaces to be in good order for proper operation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS400 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 21mm, Power Rating 1.2kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.5kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS400, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 82.5mm, Mount Hole Diameter 12, Overall Length 194mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS400 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS400, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1960, TOYOTA LAND CRUISER 1961, TOYOTA LAND CRUISER 1962. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number DXS400, 12V clockwise Denso style configuration, 9 tooth pinion, 2 hole mount, and the listed measurements against the original starter and vehicle application before buying.

FAQ

Is this starter motor new or reconditioned?

It is listed as new, not remanufactured.

What is the part number for this starter motor?

The part number is DXS400.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 9 teeth.

What mounting details are listed?

It has a 2 hole starter mount, 105mm mount centres, 12mm mount hole diameter, and an 82.5mm flange diameter.

What warranty is supplied?

The warranty is 3 years for passenger use and 1 year for commercial use.
