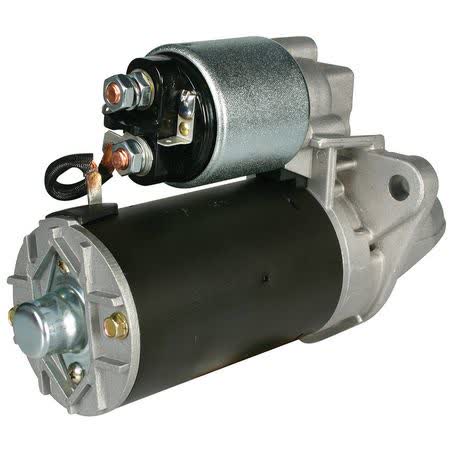

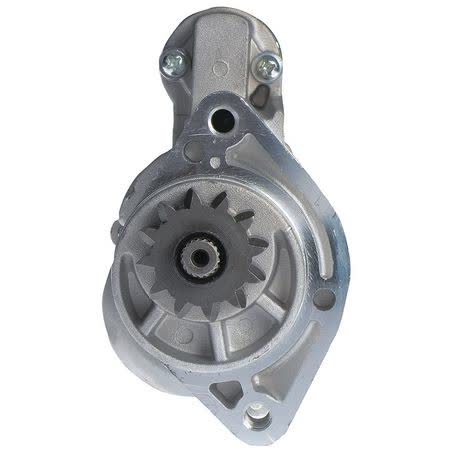

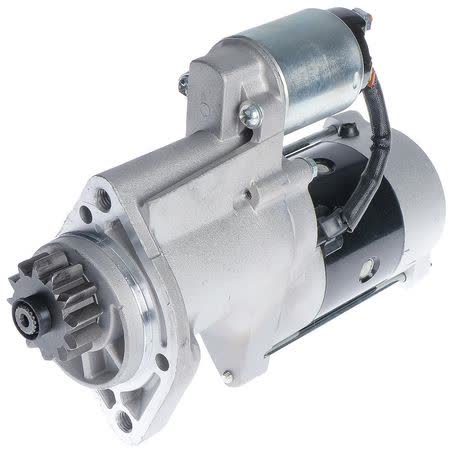

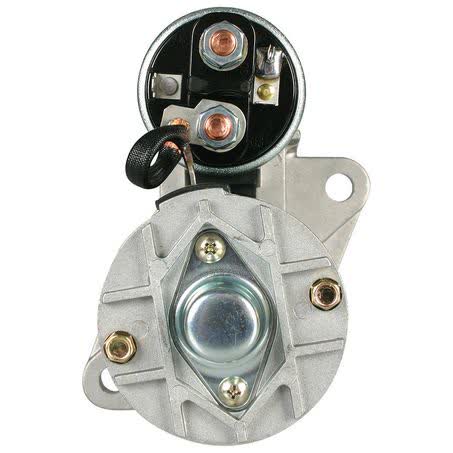

OEX Starter Motor 12V 12T CW Mitsubishi Style MXS314

The OEX Starter Motor MXS314 is a new 12V, clockwise rotating starter motor with a 12 tooth pinion and 2.2kW power rating. It is described as a Mitsubishi style unit and uses a 2 hole starter mount with 108mm mount centres, so the physical layout needs to match the original starter before purchase.

This unit has a 70mm flange diameter, M10x1.5 mount holes, an overall length of 265mm and a 46mm pinion diameter. The pinion sits 30mm at rest, and the note supplied with the part confirms it is an offset reduction geared unit.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories and backed by a nationwide warranty. For this starter motor, the listed warranty is 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• 12 tooth pinion
• Clockwise rotation
• 2.2kW power rating
• 2 hole mounting arrangement
• New unit, not remanufactured

Specifications

• Part number: MXS314
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Power rating: 2.2kW
• Mount centres A: 108mm

Confirmed fitment guidance

• Suits unit make: Mitsubishi
• Interchangeable with 10 and 12 tooth units
• Fitment note: confirm the position of the solenoid in relation to the mounting flange against the original unit

Application and Buying Notes

Before ordering, match the part number MXS314 and compare the mounting details on your original starter. The important checks here are 12V voltage, clockwise rotation, 2 hole mounting, 108mm mount centres, M10x1.5 mounting holes and the 70mm flange diameter.

The pinion specification matters as well. This unit is a 12 tooth starter with a 46mm pinion diameter and 30mm pinion at rest, and the supplied note says it is interchangeable with 10 and 12 tooth units. That interchange note still does not remove the need to compare the solenoid position to the original starter assembly.

Because this is a Mitsubishi style starter motor, the safest way to confirm suitability is to compare the physical unit on the vehicle with the listed dimensions and layout. Overall length is 265mm and the unit weighs 5.04kg, which can help when checking against the old starter during removal or replacement.

The warranty listed is 3 years for passenger use and 1 year for commercial use. Warranty coverage does not replace the need to verify application, and any starter motor should be checked carefully for voltage, rotation, tooth count and mount pattern before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS314 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 108mm, Number of Teeth 12, Pinion at Rest 30mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, Note 12 tooth. Interchangeable with 10 & 12 tooth units. Offset reduction geared unit. Position of solenoid in relation to mounting flange to be confirmed against original unit., Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5.04kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS314, Brand OEX, Description OEX Starter Motor 12V 12Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.5, Overall Length 265mm, Pinion Diameter 46mm, Rotation CW.

OEX Starter Motor 12V 12Th CW Mitsubishi Style. Part number MXS314 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS314, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003, NISSAN NAVARA 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number MXS314, the 12V CW specification, 2 hole mount, 108mm mount centres, and the solenoid position relative to the mounting flange against your original unit.

FAQ

What is the part number for this starter motor?

The listed part number is MXS314. For this listing, part number MXS314 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS314 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS314 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 12 teeth, and the note says it is interchangeable with 10 and 12 tooth units. For this listing, part number MXS314 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What are the key mounting dimensions?

The starter has a 2 hole mount, 108mm mount centres, M10x1.5 mount holes and a 70mm flange diameter. For this listing, part number MXS314 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS314 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.
