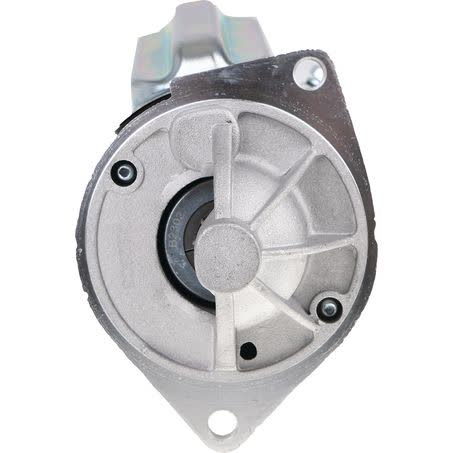

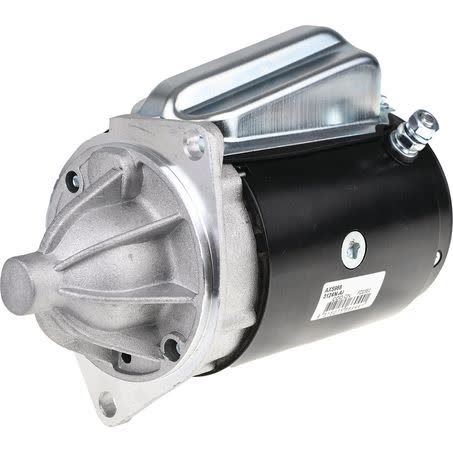

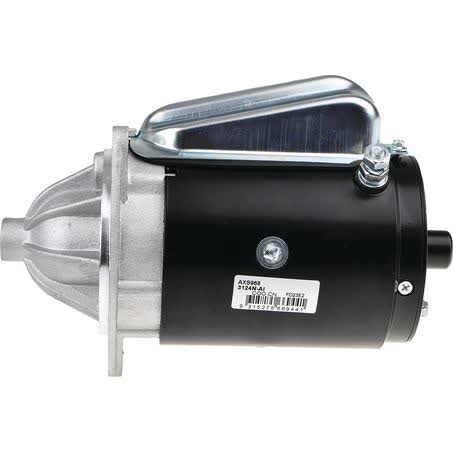

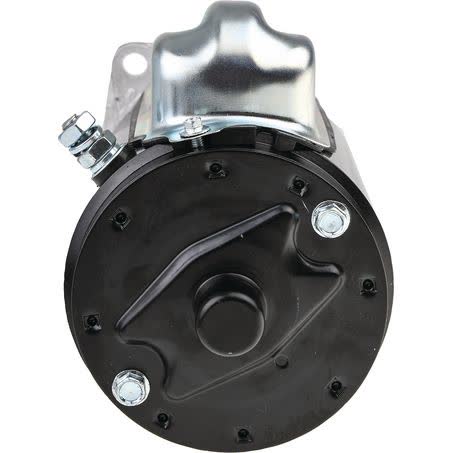

OEX Starter Motor 12V 9 Tooth CW Autolite Style AXS968

The OEX starter motor AXS968 is a 12V unit with clockwise rotation, 9 teeth, and an Autolite style suitment. It is supplied new, not remanufactured, and is listed with a 1.1kW power rating for applications that match the mounting and pinion dimensions provided.

Key dimensions include a 134mm mount centre spacing, 103mm flange diameter, 252mm overall length, and a 10mm mount hole diameter. The pinion diameter is 25mm and pinion at rest is 16mm, so checking the physical layout against the existing starter is important before purchase.

This starter is fitted with a 2 hole starter mount and is noted as suitable for dry clutch applications. The listed weight is 7.62kg, and the part is covered by a 3 year passenger / 1 year commercial warranty.

A note is supplied for manual applications: use AXS962. As with any starter motor replacement, the correct part number, rotation, tooth count, and mounting arrangement should be confirmed against the vehicle and the removed unit before ordering.

Key Features

• 12V starter motor
• Clockwise rotation
• 9 tooth pinion
• Autolite style suitment
• New unit
• 2 hole starter mount

Specifications

• Power rating: 1.1kW
• Mount centres A: 134mm
• Flange diameter: 103mm
• Overall length: 252mm
• Mount hole diameter: 10mm
• Pinion diameter: 25mm
• Pinion at rest: 16mm
• Weight: 7.62kg

Fitment guidance

• Fitment is listed against Ford applications in the provided data.
• Ford Bronco appears in the fitment list, including model years 1981 to 1987 in the preview shown.
• Ford F-100 appears in the fitment list, including model years 1977 to 1979 in the preview shown.
• Ford F-150, Ford F-250, Ford Fairlane, Ford Fairmont, Ford Falcon, Ford Landau, and Ford LTD are also listed in the fitment data.
• Because only a preview is supplied here, confirm the exact application against the part number AXS968 and the vehicle’s starter type before ordering.

Application and Buying Notes

Start by matching the part number AXS968, then compare the key physical details: 12V, clockwise rotation, 9 teeth, 1.1kW, and the 2 hole mount. Those basics matter more than appearance alone, because starter motors that look similar can differ in flange diameter, mount centres, pinion size, and rotation.

The listed mount centres are 134mm, with a 103mm flange diameter and a 252mm overall length. If the existing starter sits differently in the bellhousing or uses a different mounting pattern, the unit may not be suitable even if it is from the same vehicle family.

This starter is specified for Autolite style applications and the note directs manual applications to AXS962. That is a useful checkpoint when the vehicle has had engine, transmission, or starter changes over time. Always compare the old starter, the vehicle application, and the service requirements before buying.

The pinion dimensions are also worth checking carefully. A 25mm pinion diameter and 16mm pinion at rest can affect engagement and clearance. If you are replacing a starter because of intermittent engagement or noise, the correct tooth count and pinion geometry should be verified rather than assuming a universal match.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That does not replace correct application matching, but it does give a clear service benchmark for the intended use category when the part is installed in the right application.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS968 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 134mm, Number of Teeth 9, Pinion at Rest 16mm, Power Rating 1.1kW, Suits Unit Make Autolite, Note For manual applications use AXS962, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 7.62kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXS968, Brand OEX, Description OEX Starter Motor 12V 9Th CW Autolite Style, Flange Diameter 103mm, Mount Hole Diameter 10, Overall Length 252mm, Pinion Diameter 25mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Autolite Style. Part number AXS968 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS968, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number AXS968, the 12V clockwise 9 tooth specification, the 2 hole mount, and the vehicle’s starter style before ordering. Where the vehicle has been modified or the transmission is different, check the manual application note and compare the removed starter against the listed dimensions.

FAQ

What is the part number for this starter motor?

The part number is AXS968.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 9 teeth.

What mounting details are listed?

It has a 2 hole starter mount, 134mm mount centres, a 103mm flange diameter, and a 10mm mount hole diameter.

Is this a new or remanufactured starter motor?

It is listed as new.

Are there any application notes to watch for?

Yes. The note states that for manual applications, use AXS962. Fitment should still be confirmed against the part number and the vehicle’s starter type.
