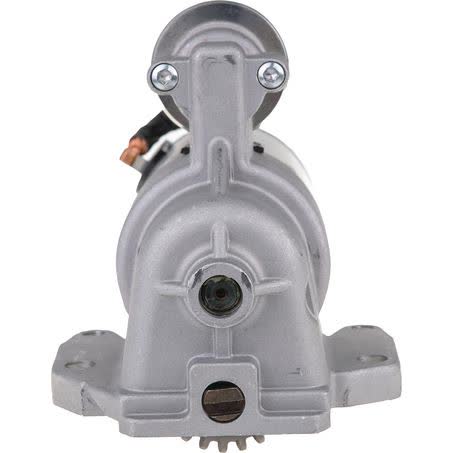

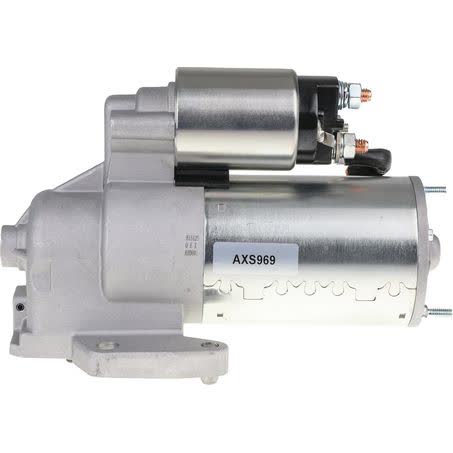

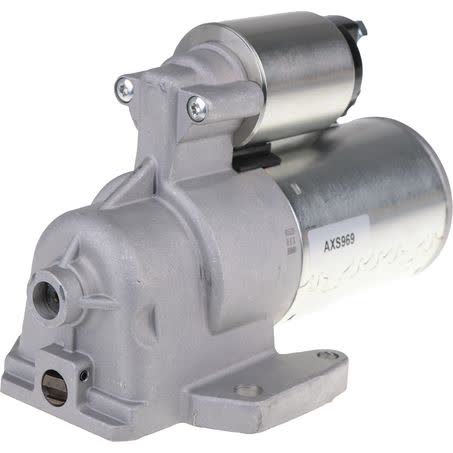

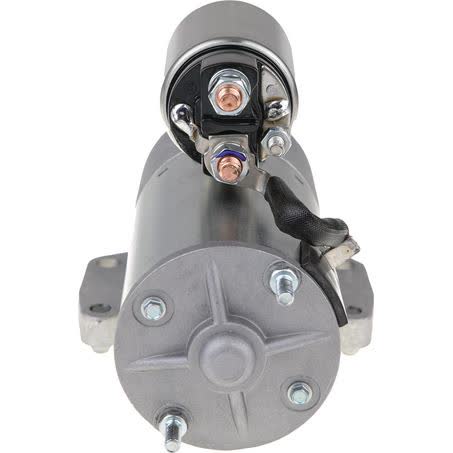

OEX Starter Motor 12V 22 Tooth CCW Autolite Style AXS969

The OEX Starter Motor AXS969 is a new 12V starter motor in Autolite style, built with 22 teeth and CCW rotation. It uses a pad starter mount type and measures 226mm overall length, with a 52mm pinion diameter and 105mm mount centres A.

This unit is listed at 1.4kW and weighs 4.16kg. The pinion at rest measures 77mm, and the mount hole diameter is 11mm. These dimensions matter when comparing against the original starter, especially where physical clearance and mounting alignment need to match the vehicle exactly.

OEX identifies this starter as part of its rotating electrical range, supplied new and backed by a 3 year passenger / 1 year commercial warranty. The product is described as suitable for Autolite applications, so checking the original unit style and part number is an important step before ordering.

Key Features

• 12V starter motor
• 22 tooth pinion
• CCW rotation
• Autolite style
• Pad mount type
• New unit

Specifications

• Brand: OEX
• Type: Starter motor
• Part No.: AXS969
• Voltage: 12V
• Number of teeth: 22
• Rotation: CCW
• Starter mount type: Pad
• Mount hole diameter: 11mm

Fitment guidance

• Verified fitment references include Ford Cougar, Ford Escape, FPV Falcon, Jaguar X-Type, Jaguar XJ, Mazda MPV and Mazda Tribute.
• Application data shown includes model years such as Ford Cougar 1999 to 2003, Ford Escape 2001 to 2005, FPV Falcon 2003 to 2013, Jaguar X-Type 2001 to 2009, Jaguar XJ 2003, Mazda MPV 2002 to 2006 and Mazda Tribute 2001 to 2005.
• Fitment should still be confirmed against the original starter part number, mounting style, tooth count and rotation before purchase.

Application and Buying Notes

Before ordering, confirm that your original starter is an Autolite style unit and compare it with the listed Part No. AXS969, 12V voltage, 22 tooth count and CCW rotation. Those details are the quickest way to rule in or rule out a match before you get into physical installation.

The physical measurements are just as important as the electrical details. This starter has a 226mm overall length, 52mm pinion diameter, 105mm mount centres A and 11mm mount hole diameter, so it needs to suit the space and mounting pattern on the vehicle. The 77mm pinion at rest is another useful check when comparing against the removed unit.

If you are replacing a worn starter, compare the old unit side by side where possible. The listed 1.4kW rating, pad mount type and dry clutch note provide useful confirmation, but they do not replace a direct match on fitment points. A starter that looks close can still differ in mounting, rotation or engagement details.

This part is supplied new and the warranty is stated as 3 years for passenger use and 1 year for commercial use. Warranty terms are helpful, but they do not confirm application by themselves, so the safest approach is to verify the part number, unit make and the physical dimensions before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS969 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 11, Overall Length 226mm, Pinion Diameter 52mm, Rotation CCW, Voltage 12, Starter Mount Type Pad, Weight 4.16kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. AXS969, Brand OEX, Description OEX Starter Motor 12V 22Th CCW Autolite Style, Mount Centres A 105mm, Number of Teeth 22, Pinion at Rest 77mm, Power Rating 1.4kW, Suits Unit Make Autolite, New / Reman. New.

OEX Starter Motor 12V 22Th CCW Autolite Style. Part number AXS969 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS969, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000, FORD COUGAR 2001, FPV FALCON, FPV FALCON 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using the original part number, Autolite-style application details, 12V specification, 22 tooth count, CCW rotation and the listed mounting dimensions before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is AXS969. For this listing, part number AXS969 is the main reference point. Listed voltage is 12. Published fitment references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number AXS969 is the main reference point. Listed voltage is 12. Published fitment references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number AXS969 is the main reference point. Listed voltage is 12. Published fitment references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

The rotation is CCW. For this listing, part number AXS969 is the main reference point. Listed voltage is 12. Published fitment references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000. These details should still be checked against the original unit before ordering.

Which unit make does it suit?

It is listed as suiting Autolite unit make. For this listing, part number AXS969 is the main reference point. Listed voltage is 12. Published fitment references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number AXS969 is the main reference point. Listed voltage is 12. Published fitment references include FORD COUGAR, FORD COUGAR 1999, FORD COUGAR 2000. These details should still be checked against the original unit before ordering.
