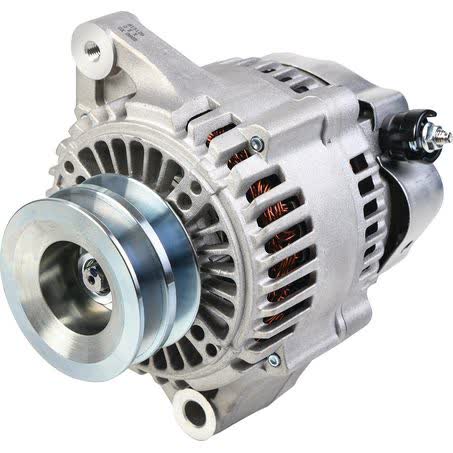

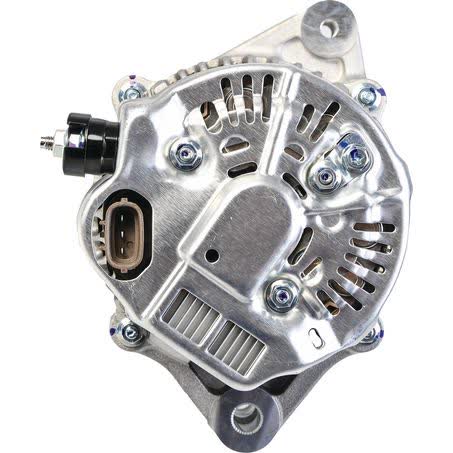

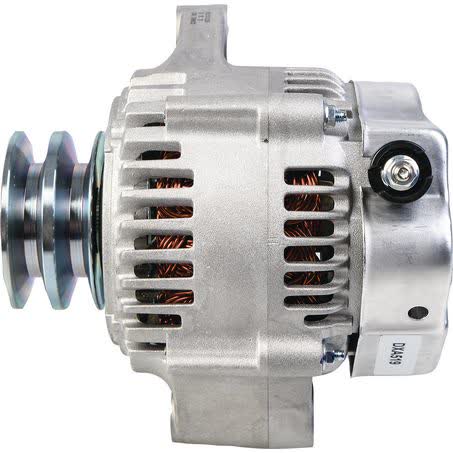

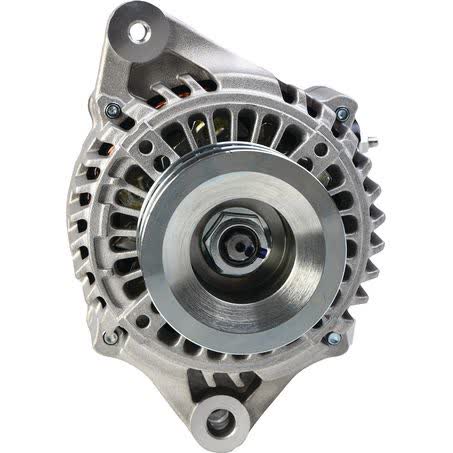

OEX Alternator 12V 80A Denso Style DXA519

The OEX Alternator DXA519 is a new 12V, 80 amp unit in Denso style with an internal regulator and single leg mount. It is listed as a replacement alternator for vehicles that use a Denso unit, and the key mounting and pulley details are available to help with a proper match before ordering.

Important physical details on this alternator include a 58mm mount leg thickness, 165mm mount centre to centre, an 11mm pivot hole diameter, and an M8 x 1.25 adjusting hole. The pulley outside diameter is 73mm with an AA pulley section, so those dimensions should be checked carefully against the original unit.

This alternator is supplied new, not remanufactured, and is supported by a 3 year passenger / 1 year commercial warranty. The unit weighs 5.5kg and is identified by part number DXA519, which is the best reference point when comparing against the vehicle’s original alternator or any existing replacement documentation.

Key Features

• 12V alternator rated at 80 amps
• Denso style unit
• Internal regulator
• Single leg mount
• New unit, not remanufactured
• Part number DXA519

Specifications

• Brand: OEX
• Product type: Alternator
• Part number: DXA519
• Voltage: 12V
• Power rating: 80A
• Regulator type: Internal
• Suits unit make: Denso
• Alternator mount: Single leg

Fitment guidance

• Fitment is listed against Toyota applications including 4 Runner, Granvia, Hiace, Hilux, Hilux Surf, Land Cruiser and Land Cruiser Prado.
• Known application references include Toyota 4 Runner 1993, 1994, 1995 and 1996, and Toyota Granvia 1995 through 2000.
• The alternator is intended for vehicles using a Denso-style unit, so the original mount layout, pulley style and electrical connection should be checked before purchase.
• Confirm that the vehicle’s original alternator matches the Denso style, single leg mount, 12V system and 80A output where applicable.

Application and Buying Notes

Before buying, compare the original alternator against the DXA519 part number and check the physical mounting points. The listed 58mm mount leg thickness, 165mm mount centre to centre, 11mm pivot hole diameter and M8 x 1.25 adjusting hole are all important when confirming that the new unit will bolt up correctly.

The pulley details matter just as much as the electrical rating. This alternator has a 73mm outside diameter pulley with an AA section, and it is described as a Denso style unit with an internal regulator. If the original alternator differs in pulley size, section or regulator arrangement, the replacement may not be suitable even if the vehicle family appears similar.

There is also a specific note that the L terminal does not drive choke, and that an adaptor suits HXK-30, HXK-22 and HXK-17. That makes it sensible to verify the connector arrangement and any adaptor needs before fitting, especially if the existing wiring or charger-control setup has been altered.

The warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear indication of the intended duty profile. As with any rotating electrical part, final confirmation should be made against the vehicle’s original unit, the part number and the mounting and connector details rather than vehicle name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA519 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 58mm, Pivot Hole Diameter 11, Pulley Outside Diameter 73mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

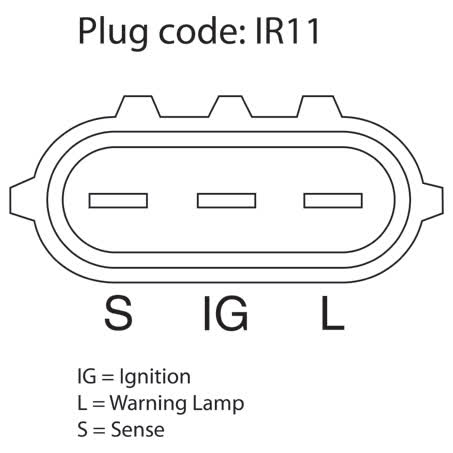

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA519, Brand OEX, Description OEX Alternator 12V 80A Denso Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR11, Power Rating (Amp) 80, Pulley Section AA, Suits Unit Make Denso.

OEX Alternator 12V 80A Denso Style. Part number DXA519 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA519, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number DXA519, the Denso style specification, and the listed mounting, pulley and terminal details before purchase. Vehicle application references are provided, but the final match should be checked against the original alternator on the vehicle.

FAQ

What is the part number for this alternator?

The part number is DXA519.

What voltage and output does this alternator have?

It is a 12V alternator rated at 80A.

Is this alternator new or remanufactured?

It is listed as new.

What type of regulator does it use?

It uses an internal regulator.

What vehicles are listed in the fitment information?

The listed fitment includes Toyota 4 Runner, Granvia, Hiace, Hilux, Hilux Surf, Land Cruiser and Land Cruiser Prado. Specific references shown include Toyota 4 Runner 1993 to 1996 and Toyota Granvia 1995 to 2000.

What should I check before ordering?

Check the part number DXA519, the Denso style match, the single leg mount, the 58mm mount leg thickness, 165mm mount centre to centre, 11mm pivot hole, M8 x 1.25 adjusting hole, and the 73mm AA pulley section.
