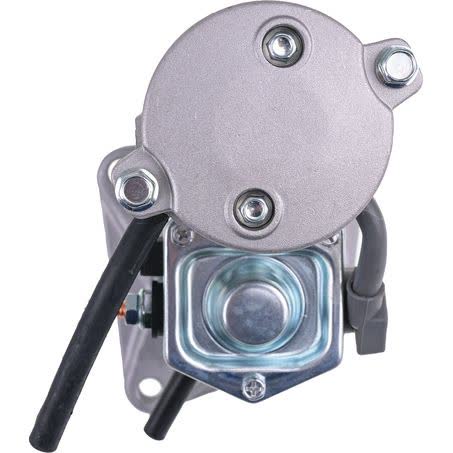

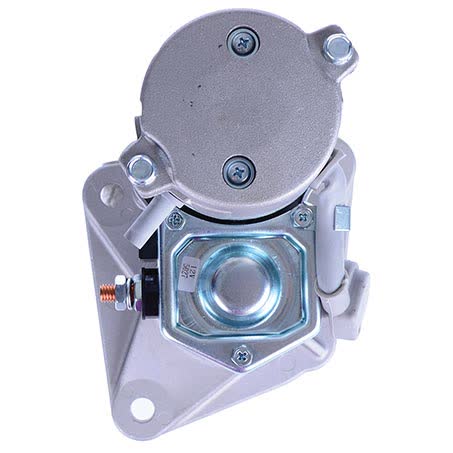

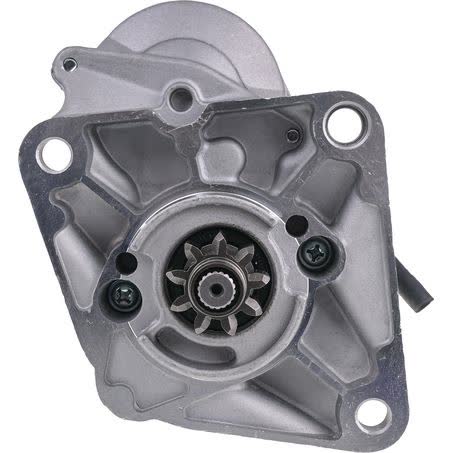

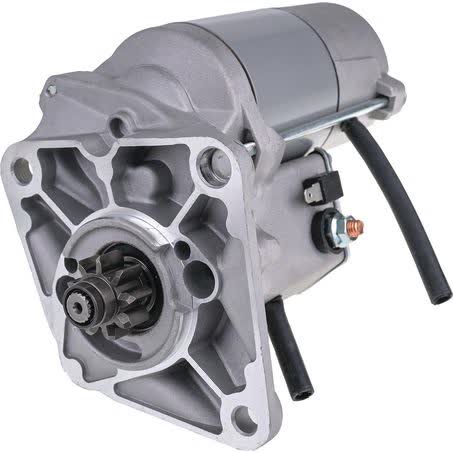

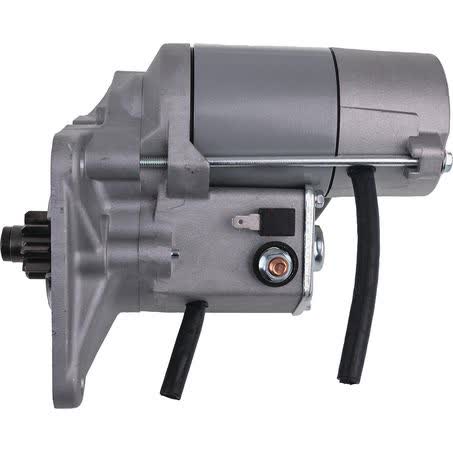

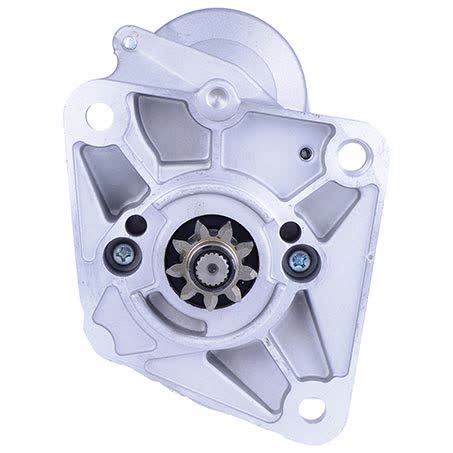

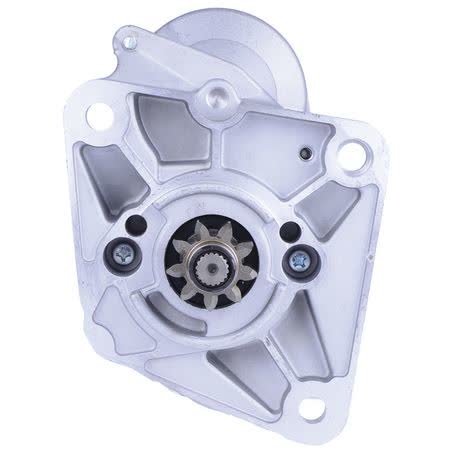

OEX Starter Motor 12V 9TH CW Denso Style DXS560

The OEX DXS560 is a new 12V starter motor with a 9 tooth pinion, clockwise rotation, and Denso style fitment. It is listed at 2kW and uses a 3 hole starter mount, which makes the key identification points clear when matching it to the vehicle application.

This unit has a 66mm flange diameter, 146mm mount centres A, 103mm mount centres C, and 11 / 12mm mount hole diameter. The overall length is 222mm, the pinion diameter is 35mm, and the pinion sits 22mm at rest, so the physical dimensions can be checked before ordering.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The part is backed by a 3 year passenger / 1 year commercial warranty, which gives useful cover depending on the vehicle use category.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Denso style
• New unit
• 3 hole starter mount

Specifications

• Brand: OEX
• Part No.: DXS560
• Product type: Starter motor
• Voltage: 12V
• Power rating: 2kW
• Rotation: CW
• Number of teeth: 9
• Suits unit make: Denso

Fitment guidance

• Fitment information supplied includes Land Rover Defender applications.
• Land Rover Defender is listed across multiple model years, including 1990 through 2000 in the provided fitment preview.
• Land Rover Discovery is included in the supplied fitment data, but no detailed model-year breakdown is shown in the preview.

Application and Buying Notes

Before ordering, confirm the part number DXS560 and compare the starter’s 12V rating, 9 tooth pinion, and clockwise rotation with the unit currently fitted to the vehicle. The Denso style design and 3 hole mount are useful identification points, but the dimensions still need to line up with the existing starter and mounting arrangement.

The listed measurements are worth checking carefully: 146mm mount centres A, 103mm mount centres B and C, 66mm flange diameter, 11 / 12mm mount hole diameter, and 222mm overall length. These dimensions help confirm whether the starter will physically suit the application, especially where space around the bellhousing is limited.

The 2kW power rating and 35mm pinion diameter are also practical reference points when comparing units. If the old starter is missing, damaged, or unreadable, matching the mounting style, rotation, tooth count, and dimensions is the safest way to narrow the correct replacement.

Warranty cover differs by vehicle use, with 3 years for passenger use and 1 year for commercial use. If the starter is being fitted to a commercial or work vehicle, it is worth checking that the intended use aligns with the warranty category before purchase.

Fitment listings can be broad, particularly across Land Rover applications, so the part number and physical measurements should always take priority. Where possible, compare the old unit side by side with this starter, including the pinion at rest measurement of 22mm and the 3 hole mount layout, before final installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS560 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 146mm, Mount Centres C 103mm, Number of Teeth 9, Pinion at Rest 22mm, Power Rating 2kW, Suits Unit Make Denso, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS560, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 66mm, Mount Centres B 103mm, Mount Hole Diameter 11 / 12, Overall Length 222mm.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS560 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS560, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility by matching the part number DXS560, the Denso style application, the 12V clockwise 9 tooth specification, and the supplied mounting dimensions against the vehicle and the original starter motor.

FAQ

What is the part number for this starter motor?

The part number is DXS560. For this listing, part number DXS560 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990, LAND ROVER DEFENDER 1991. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

It is listed as a new starter motor. For this listing, part number DXS560 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990, LAND ROVER DEFENDER 1991. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V unit with clockwise rotation. For this listing, part number DXS560 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990, LAND ROVER DEFENDER 1991. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has a 9 tooth pinion. For this listing, part number DXS560 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990, LAND ROVER DEFENDER 1991. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed measurements are 146mm mount centres A, 103mm mount centres B and C, 66mm flange diameter, and 11 / 12mm mount hole diameter. For this listing, part number DXS560 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990, LAND ROVER DEFENDER 1991. These details should still be checked against the original unit before ordering.

What warranty applies to this starter motor?

Warranty cover is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS560 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990, LAND ROVER DEFENDER 1991. These details should still be checked against the original unit before ordering.
