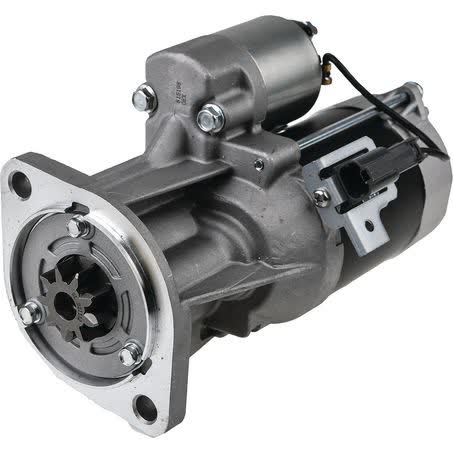

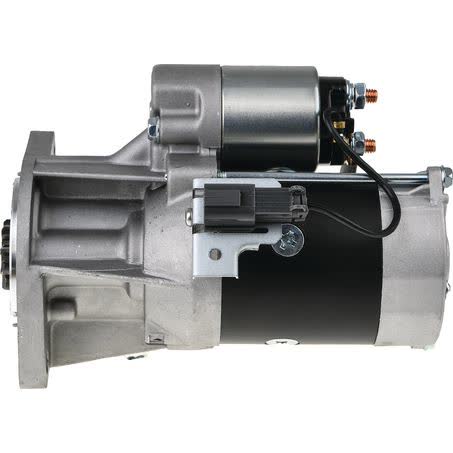

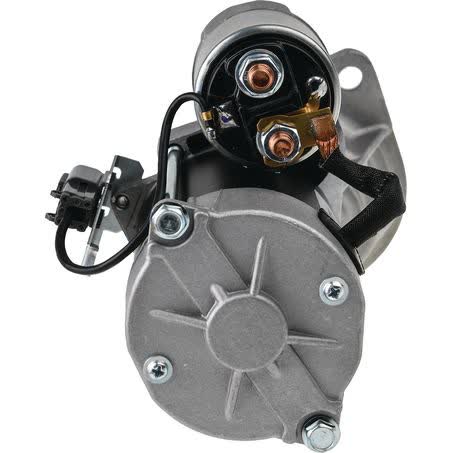

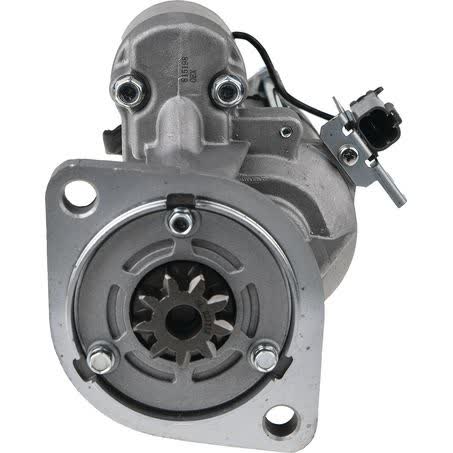

OEX Starter Motor 12V 9 Tooth CW Hitachi Style HXS076

The OEX starter motor HXS076 is a new 12V unit built in Hitachi style, with clockwise rotation and a 9 tooth pinion. It is a reduction gear starter motor with a 2 hole mount, 110mm mount centres, and an 82mm flange diameter.

This unit is rated at 2.5kW and suits applications listed against Hitachi style starters. Key dimensions include an overall length of 212mm, a pinion diameter of 36mm, and a pinion at rest measurement of 11mm.

OEX notes this product is sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. It is supplied new, sold each, and carries a 3 year warranty for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• Hitachi style application
• Clockwise rotation
• 9 tooth pinion
• Reduction gear design
• New unit

Specifications

• Part number: HXS076
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Power rating: 2.5kW
• Rotation: CW
• Number of teeth: 9
• Mount centres A: 110mm

Known fitment references

• ISUZU ELF
• NISSAN CARAVAN
• NISSAN ELGRAND
• NISSAN PATROL
• TCM FG35.40

Application and Buying Notes

Check the part number HXS076 first, then compare the physical details against the removed unit. The important matching points here are 12V, 9 tooth, clockwise rotation, 2 hole mount, 110mm mount centres, and 82mm flange diameter.

The 2.5kW rating and 212mm overall length are useful checks when comparing a replacement starter motor, especially where the original unit has been changed before or the vehicle has had previous repairs. The 11mm mount hole diameter and 4.56kg weight can also help confirm you are looking at the same style of starter.

This starter is listed as Hitachi style, so the application needs to align with that format as well as the electrical and mounting details. Even when the vehicle name appears in fitment references, it is still best practice to verify the starter housing, tooth count, rotation, and pinion measurements before ordering.

The warranty is 3 years for passenger use and 1 year for commercial use, so it is worth confirming the vehicle use category before purchase. A commercial application can have different expectations from a passenger vehicle, even when the starter looks physically similar.

Because starter motors can share similar shapes across different makes and models, do not rely on appearance alone. Matching the 12V system, tooth count, mount centres, flange diameter, and part number gives a much more reliable check than general visual similarity.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS076 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion at Rest 11mm, Power Rating 2.5kW, Suits Unit Make Hitachi, Note Reduction Gear, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.56kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXS076, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 82mm, Mount Hole Diameter 11, Overall Length 212mm, Pinion Diameter 36mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number HXS076 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS076, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number HXS076, the 12V 9 tooth clockwise specification, and the listed mounting and dimension details before purchase. Vehicle fitment should always be checked against the application and the removed starter motor.

FAQ

What is the part number for this starter motor?

The part number is HXS076. For this listing, part number HXS076 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 2007, NISSAN CARAVAN. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number HXS076 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 2007, NISSAN CARAVAN. These details should still be checked against the original unit before ordering.

What voltage does it use?

It is a 12V starter motor. For this listing, part number HXS076 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 2007, NISSAN CARAVAN. These details should still be checked against the original unit before ordering.

What rotation does it have?

The rotation is clockwise, shown as CW. For this listing, part number HXS076 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 2007, NISSAN CARAVAN. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number HXS076 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 2007, NISSAN CARAVAN. These details should still be checked against the original unit before ordering.

Which fitment references are provided?

Fitment references include ISUZU ELF, NISSAN CARAVAN, NISSAN ELGRAND, NISSAN PATROL, and TCM FG35.40. These should still be checked against the part number and the starter’s mounting and dimension details before buying. For this listing, part number HXS076 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 2007, NISSAN CARAVAN. These details should still be checked against the original unit before ordering.
