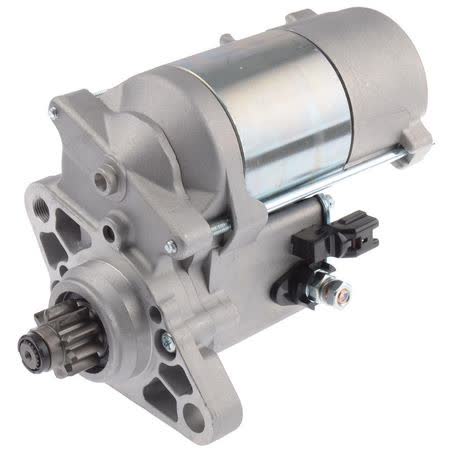

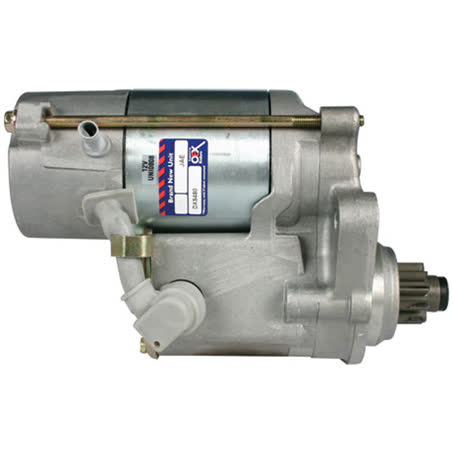

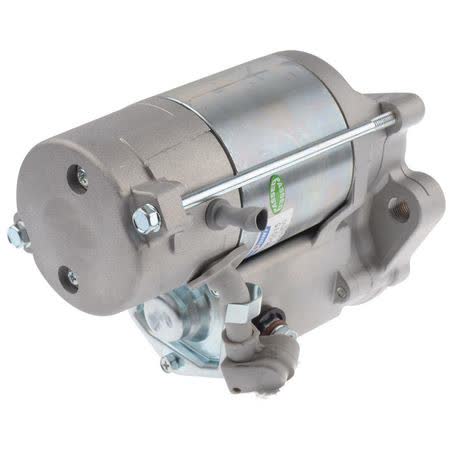

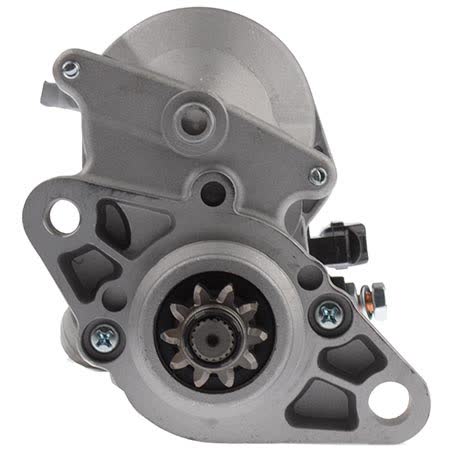

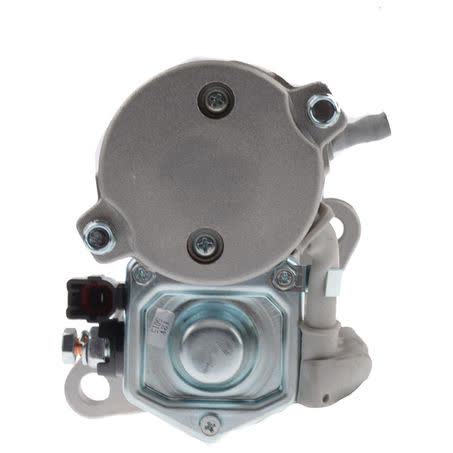

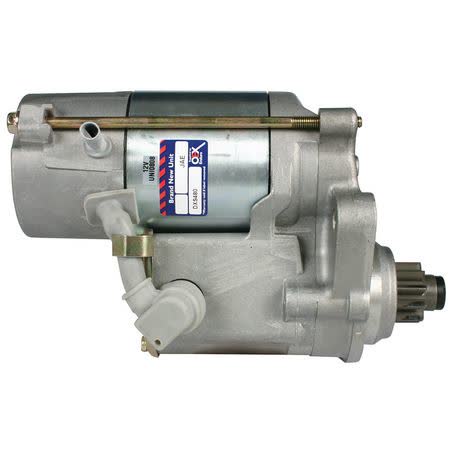

OEX Starter Motor 12V 10T CW Denso Style DXS480

The OEX DXS480 is a new 12V starter motor with a 10 tooth pinion, clockwise rotation and a Denso style fitment. It is rated at 1.4kW and uses a 2 hole starter mount, so the key mounting and electrical details are clearly defined before you compare it against the vehicle or equipment you are working on.

This unit has a mount centres measurement of 118mm, a flange diameter of 55mm, an overall length of 188mm and a pinion at rest measurement of 33mm. The mount hole diameter is listed as M12 / 13, which is useful when checking the physical fit against the original starter position.

OEX describes this starter motor as being sourced from market leading original equipment manufacturers and aftermarket suppliers, with products supplied from ISO certified factories. It is backed by a 3 year passenger and 1 year commercial warranty, which gives buyers a clear warranty framework for the intended application.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Denso style unit
• 2 hole starter mount
• New unit

Specifications

• Voltage: 12V
• Power rating: 1.4kW
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 2 hole
• Mount centres A: 118mm
• Flange diameter: 55mm
• Overall length: 188mm

Fitment guidance

• No vehicle-specific fitment has been confirmed here beyond the supplied Denso style reference and the Toyota-related application data provided.
• Fitment references include Toyota, Toyota Industrial, Toyota Industrial Forklift and Toyota Land Cruiser applications in the supplied data.
• Toyota Land Cruiser applications are listed across multiple model years in the supplied fitment preview, including 1992 to 1999.
• Use the part number, mounting pattern and starter dimensions to confirm the match before ordering.

Application and Buying Notes

The most important checks for this starter are the 12V system requirement, the 10 tooth pinion, clockwise rotation and the Denso style configuration. If your original starter differs in any of those core points, the unit may not be suitable even if it looks similar at a glance.

Physical measurements matter on starters because the mounting face, bolt pattern and engagement depth all need to line up. Here the key figures are 118mm mount centres, a 55mm flange diameter, 188mm overall length and a 33mm pinion at rest, so compare those with the removed unit rather than relying on shape alone.

The mount hole diameter is listed as M12 / 13 and the starter mount type is 2 hole. Those details help confirm whether the starter will physically bolt up in the same position and with the same fasteners as the original assembly.

The 1.4kW power rating is a useful reference when you are matching an OE-style replacement, but it should be checked alongside the vehicle or equipment application rather than used on its own. The part number DXS480 is the safest identifier to use when cross-checking against an existing starter or parts listing.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS480 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 118mm, Number of Teeth 10, Pinion at Rest 33mm, Power Rating 1.4kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5.38kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS480, Brand OEX, Description OEX Starter Motor 12V 10Th CW Denso Style, Flange Diameter 55mm, Mount Hole Diameter M12 / 13, Overall Length 188mm, Pinion Diameter 32mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Denso Style. Part number DXS480 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS480, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994, TOYOTA LAND CRUISER. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking the part number DXS480, the 12V rating, 10 tooth pinion, clockwise rotation, Denso style fitment and the supplied mounting dimensions against the original starter on the vehicle or equipment.

FAQ

Is this starter motor 12 volt?

Yes. The listed voltage is 12V. For this listing, part number DXS480 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994. These details should still be checked against the original unit before ordering.

What is the part number for this starter motor?

The part number listed is DXS480. For this listing, part number DXS480 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994. These details should still be checked against the original unit before ordering.

Does this starter rotate clockwise?

Yes. The rotation is listed as CW, which means clockwise. For this listing, part number DXS480 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994. These details should still be checked against the original unit before ordering.

What type of mount does it use?

It uses a 2 hole starter mount, with mount centres listed at 118mm. For this listing, part number DXS480 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This starter motor is listed as new. For this listing, part number DXS480 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS480 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA INDUSTRIAL, TOYOTA INDUSTRIAL FORKLIFT, TOYOTA INDUSTRIAL FORKLIFT 1994. These details should still be checked against the original unit before ordering.
