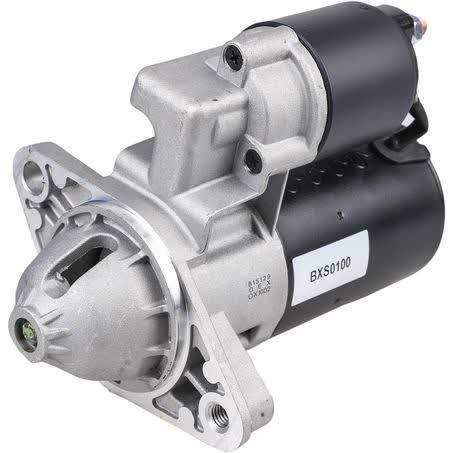

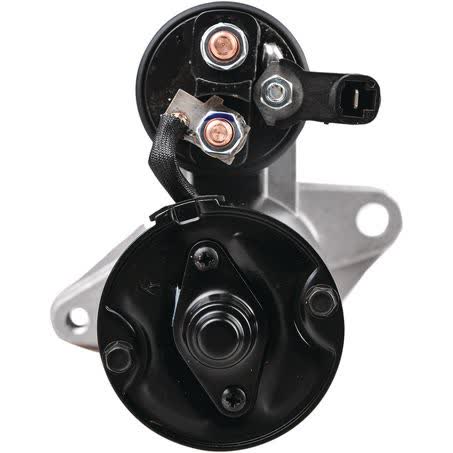

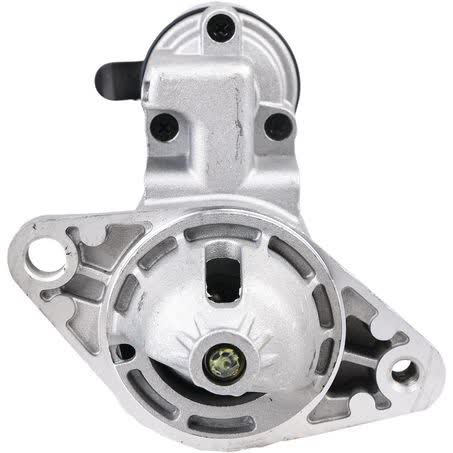

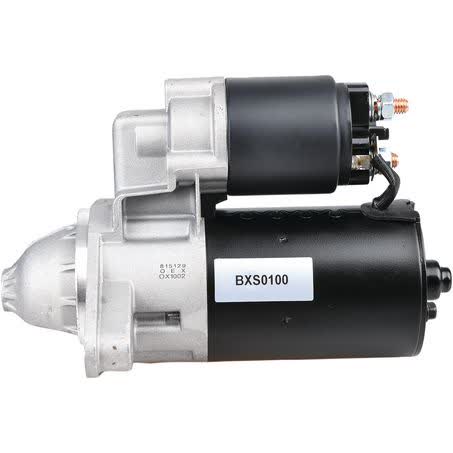

OEX Starter Motor 12V 8TH CW Bosch Style BXS0100

The OEX starter motor in this listing is a 12V unit with clockwise rotation, an 8-tooth pinion and a 1.4kW power rating. It is described as Bosch style, suits Bosch applications, and carries part number BXS0100.

This is a new starter motor, supplied each, with a 2 hole starter mount, 118mm mount centres, a 74mm flange diameter and M10x1.5 / 13 mount hole diameter. Overall length is 210mm, with a 27mm pinion diameter and 8mm pinion at rest.

OEX positions this as a quality replacement starter motor for the Australian automotive aftermarket. The brand notes new units are supported by a 3 year or 75,000 kilometre warranty, while re-manufactured units carry a different warranty arrangement for passenger vehicle use.

Key Features

• 12V starter motor
• Clockwise rotation
• 8 tooth pinion
• Bosch style, suits Bosch applications
• 1.4kW power rating
• New unit, supplied each

Specifications

• Part No.: BXS0100
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 8
• Power Rating: 1.4kW
• Mount Centres A: 118mm

Fitment guidance

• Fitment data provided includes Chrysler Neon applications.
• Listed applications include Chrysler Neon 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 and 2002.
• Confirm the part number BXS0100, Bosch style specification, 12V rating, 8 tooth count and clockwise rotation against the vehicle before ordering.

Application and Buying Notes

A starter motor needs to match more than just the vehicle badge. For this unit, the key checks are the 12V rating, 8 tooth pinion, clockwise rotation, 2 hole mounting pattern and the 118mm mount centres. If any of those details differ from the original part, fitment should be checked carefully before purchase.

The Bosch style designation and the stated suitability for Bosch applications are important when comparing replacements. The mounting details also matter: 74mm flange diameter, M10x1.5 / 13 mount hole diameter, 210mm overall length and 27mm pinion diameter all need to line up with the original starter arrangement.

This starter is listed as new and weighs 3.92kg. It is specified for dry clutch applications. If you are comparing it to an existing starter, use the part number BXS0100 and the physical measurements together, rather than relying on appearance alone.

Warranty coverage differs depending on whether a unit is new or re-manufactured, so it is worth confirming you are ordering the correct version. The new unit warranty stated for OEX is 3 years or 75,000 kilometres, and the passenger vehicle warranty reference for re-manufactured units is different.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0100 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 118mm, Number of Teeth 8, Pinion at Rest 8mm, Power Rating 1.4kW, Suits Unit Make Bosch, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.92kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0100, Brand OEX, Description OEX Starter Motor 12V 8Th CW Bosch Style, Flange Diameter 74mm, Mount Hole Diameter M10x1.5 / 13, Overall Length 210mm, Pinion Diameter 27mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Bosch Style. Part number BXS0100 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0100, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995, CHRYSLER NEON 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number BXS0100, the 12V Bosch style application, 8 tooth clockwise configuration, and all mounting measurements before ordering. Vehicle fitment should always be checked against the original starter and application details.

FAQ

What type of starter motor is this?

It is an OEX starter motor, listed as a new 12V unit with clockwise rotation, 8 teeth and a 1.4kW power rating. For this listing, part number BXS0100 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is BXS0100. For this listing, part number BXS0100 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This listing is for a new starter motor. For this listing, part number BXS0100 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995. These details should still be checked against the original unit before ordering.

What mounting details are supplied?

The supplied mounting details are 2 hole starter mount, 118mm mount centres, 74mm flange diameter and M10x1.5 / 13 mount hole diameter. For this listing, part number BXS0100 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The provided fitment data includes Chrysler Neon applications, including model years 1994 through 2002. For this listing, part number BXS0100 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995. These details should still be checked against the original unit before ordering.

What warranty is stated for this OEX starter motor?

The stated warranty for new OEX units is 3 years or 75,000 kilometres. A different warranty applies to re-manufactured units when used in passenger vehicle applications. For this listing, part number BXS0100 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER NEON, CHRYSLER NEON 1994, CHRYSLER NEON 1995. These details should still be checked against the original unit before ordering.
