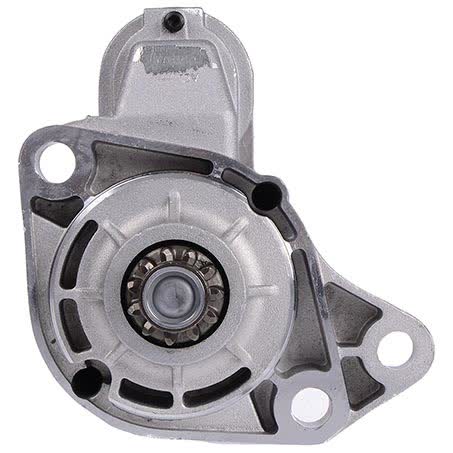

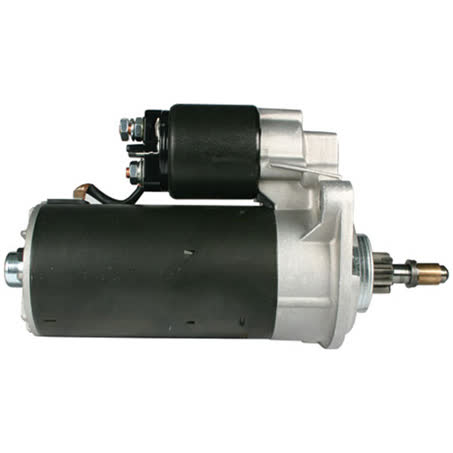

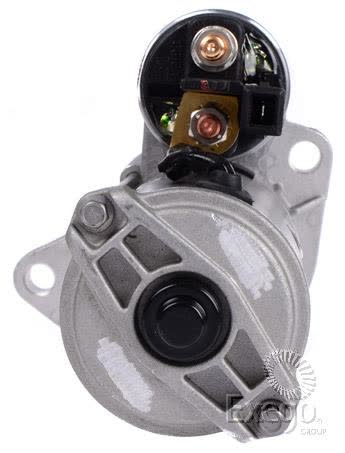

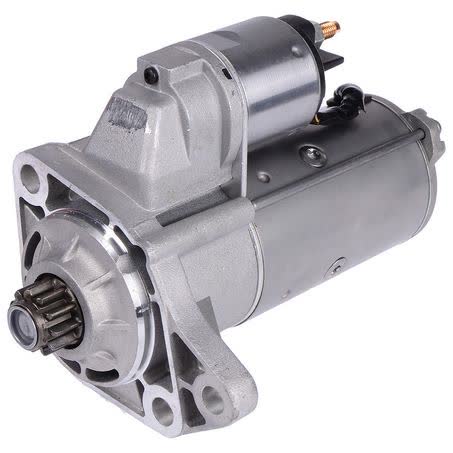

OEX Starter Motor 12V 11 Tooth CCW Bosch Style BXS0108

The OEX Starter Motor BXS0108 is a 12V starter motor in Bosch style, set up with 11 teeth, counter-clockwise rotation, and a 3-hole starter mount. Key dimensions include a 76mm flange diameter, 111mm mount centres, a 13mm mount hole diameter, and an overall length of 266mm.

This unit is listed as new, with a 2.2kW power rating, 25mm pinion diameter, and 33mm pinion at rest. It suits Bosch applications and uses a dry clutch arrangement. The listed weight is 4.82kg, which is useful when comparing against the unit being replaced.

OEX identifies this as a quality replacement starter motor for the Australian automotive aftermarket. The part number is BXS0108, and the note supplied with the listing states that 9 and 11 tooth units will interchange. That interchange note is important, but the rest of the match still needs to be checked carefully against the vehicle and the removed starter.

Key Features

• 12V starter motor
• Bosch style application
• 11 tooth pinion
• Counter-clockwise rotation
• 3-hole starter mount
• New unit

Specifications

• Brand: OEX
• Part No.: BXS0108
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CCW
• Number of teeth: 11
• Power rating: 2.2kW
• Flange diameter: 76mm

Fitment guidance

• No vehicle fitment has been verified for this listing.
• The supplied fitment preview references SEAT Cordoba, SEAT Toledo, Volkswagen Bora, Volkswagen Golf, Volkswagen Passat, Volkswagen Transporter, and Volkswagen Transporter/Caravelle, but these applications are not confirmed here for all variants.
• Confirm the removed starter against the Bosch style, 12V rating, CCW rotation, 11 tooth count, 3-hole mount, and the listed measurements before ordering.

Application and Buying Notes

Starter motors are often close in appearance but differ in tooth count, rotation, mount pattern, and physical dimensions. For the OEX BXS0108, the critical checks are 12V, CCW rotation, 11 teeth, Bosch style, 3-hole mounting, 76mm flange diameter, and 111mm mount centres.

The note that 9 and 11 tooth units will interchange is useful, but it should not replace a full match check. Compare the pinion diameter of 25mm, pinion at rest of 33mm, overall length of 266mm, and mount hole diameter of 13mm against the original unit before fitting.

If you are matching by vehicle, use the exact application details from the vehicle build and the original starter rather than assuming all models in a family take the same part. The fitment preview includes several SEAT and Volkswagen models, but the safe approach is to confirm by part number and physical specification.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That makes the intended use important at the point of purchase, especially where the vehicle is used differently from a standard passenger application. The unit is also listed as new, so it is being supplied as a replacement starter motor rather than a remanufactured item.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0108 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 111mm, Number of Teeth 11, Pinion at Rest 33mm, Power Rating 2.2kW, Suits Unit Make Bosch, Note 9 and 11 tooth units will interchange, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. BXS0108, Brand OEX, Description OEX Starter Motor 12V 11Th CCW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter 13, Overall Length 266mm, Pinion Diameter 25mm.

OEX Starter Motor 12V 11Th CCW Bosch Style. Part number BXS0108 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0108, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994, SEAT CORDOBA 1995, VOLKSWAGEN BORA, VOLKSWAGEN BORA 1999. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking the part number BXS0108, Bosch style application, 12V rating, 11 tooth count, CCW rotation, 3-hole mount, and all listed measurements against the vehicle and the original starter motor before purchase.

FAQ

What is the part number for this starter motor?

The part number is BXS0108. For this listing, part number BXS0108 is the main reference point. Listed voltage is 12. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The listed voltage is 12V. For this listing, part number BXS0108 is the main reference point. Listed voltage is 12. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. The listing also notes that 9 and 11 tooth units will interchange. For this listing, part number BXS0108 is the main reference point. Listed voltage is 12. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is listed as CCW, which means counter-clockwise rotation. For this listing, part number BXS0108 is the main reference point. Listed voltage is 12. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This item is listed as new. For this listing, part number BXS0108 is the main reference point. Listed voltage is 12. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty listed is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0108 is the main reference point. Listed voltage is 12. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.
