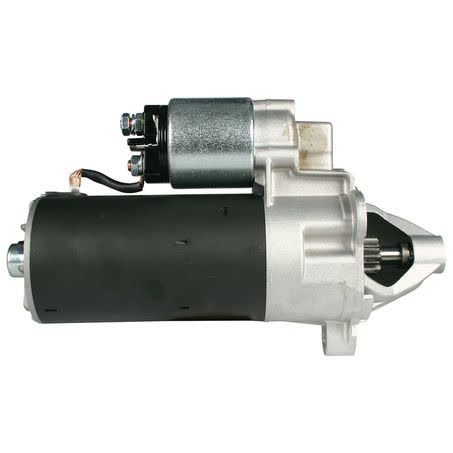

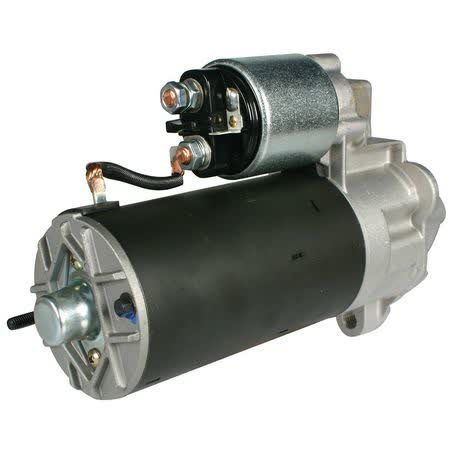

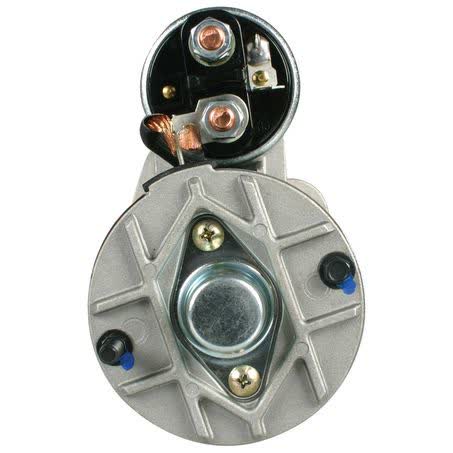

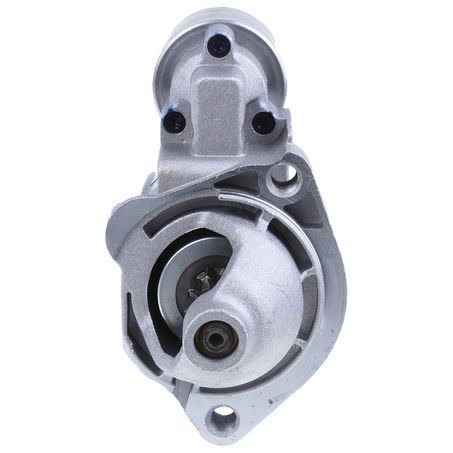

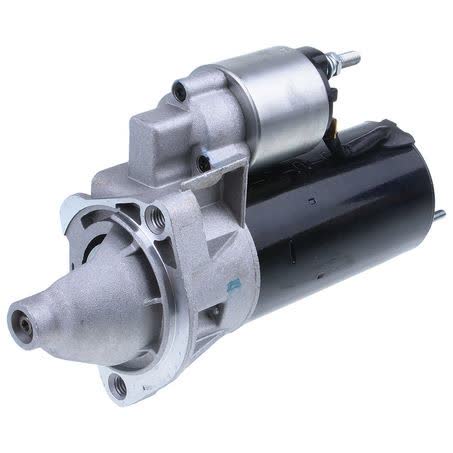

OEX Starter Motor 12V 9TH CW Bosch Style BXS0116

The OEX BXS0116 is a 12V starter motor in Bosch style, set up with clockwise rotation, 9 teeth, and a 2 hole starter mount. Key fitment measurements include 101mm mount centres, an 82mm flange diameter, M12 mount hole diameter, 270mm overall length, 25mm pinion diameter, and 15mm pinion at rest.

This unit is listed as new, weighs 5.671kg, and carries a power rating of 1.8kW. It is specified for dry clutch applications and is identified as suit unit make Bosch. Those details matter when comparing against the original starter or checking an application catalogue, because the mounting pattern and pinion dimensions need to line up correctly.

OEX positions this starter motor for the Australian automotive aftermarket as a replacement rotating electrical part. The listed warranty is 3 years for passenger use and 1 year for commercial use, which is useful to note when selecting a replacement for a vehicle or machine that needs the correct Bosch-style starter specification.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 9-tooth pinion
• Bosch style replacement
• 2 hole starter mount
• New unit

Specifications

• Part number: BXS0116
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Power rating: 1.8kW
• Rotation: CW
• Number of teeth: 9
• Starter mount type: 2 hole

Fitment guidance

• No verified vehicle fitment is supplied with this listing.
• Use the Bosch-style specification, part number BXS0116, and the measured dimensions above to compare against the unit being replaced.
• Confirm the 2 hole mounting arrangement, 101mm mount centres, 82mm flange diameter, and M12 mount holes before ordering.
• Check that the 9-tooth pinion, 25mm pinion diameter, and 15mm pinion at rest match the original starter.
• This starter is specified for 12V, clockwise rotation, and dry clutch applications only.

Application and Buying Notes

When replacing a starter motor, the most important checks are the electrical rating, rotation, mounting style, and pinion details. This OEX unit is 12V, 1.8kW, clockwise rotation, and has a 9-tooth pinion, so it should only be considered where those exact specifications match the original application.

Physical dimensions are just as important as the electrical details. The listed 2 hole starter mount, 101mm mount centres, 82mm flange diameter, M12 mount hole diameter, and 270mm overall length give you a practical way to compare the replacement to the removed unit before purchase.

The unit is described as Bosch style and suits unit make Bosch, which is useful when the original starter is an OEM Bosch type or an equivalent replacement. Even when the general style matches, the pinion diameter of 25mm and pinion at rest measurement of 15mm should still be checked carefully against the existing part.

Warranty is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle or machine is used commercially, confirm that this warranty context suits your expectations before fitting. For any starter replacement, matching the part number BXS0116 remains the safest way to verify the correct unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0116 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 101mm, Number of Teeth 9, Pinion at Rest 15mm, Power Rating 1.8kW, Suits Unit Make Bosch, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5.671kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0116, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 82mm, Mount Hole Diameter M12, Overall Length 270mm, Pinion Diameter 25mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS0116 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0116, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A4, AUDI A4 2000, AUDI A4 2001, AUDI A4 2002, FERRARI 456 GT/GTA, FERRARI 456 GT/GTA 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number BXS0116, Bosch-style application details, 12V clockwise rotation, 9 teeth, and the mounting and pinion measurements against the removed starter or vehicle catalogue before ordering.

FAQ

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number BXS0116 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2000, AUDI A4 2001. These details should still be checked against the original unit before ordering.

What is the part number for this unit?

The part number is BXS0116. For this listing, part number BXS0116 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2000, AUDI A4 2001. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is listed as clockwise rotation, abbreviated CW. For this listing, part number BXS0116 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2000, AUDI A4 2001. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 9 teeth. For this listing, part number BXS0116 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2000, AUDI A4 2001. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

This unit is listed as new. For this listing, part number BXS0116 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2000, AUDI A4 2001. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0116 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2000, AUDI A4 2001. These details should still be checked against the original unit before ordering.
