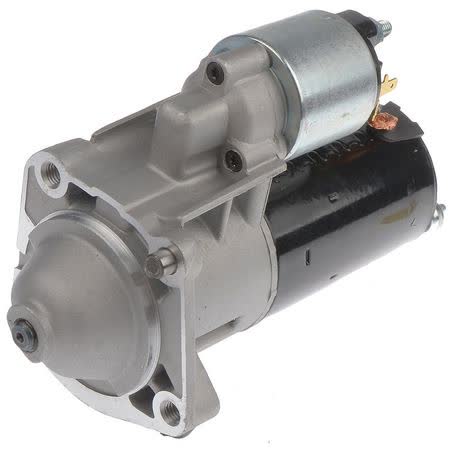

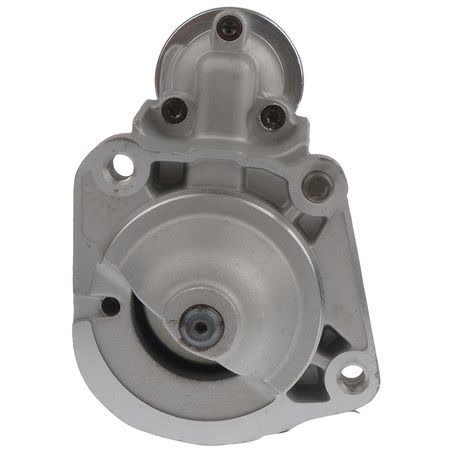

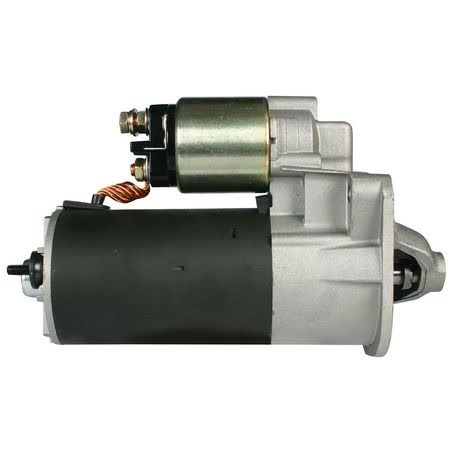

OEX Starter Motor 12V 9 Tooth CW Bosch Style BXS0122

The OEX BXS0122 is a 12V starter motor with a 9 tooth pinion, clockwise rotation and Bosch style fitment. It is a new unit in the rotating electrical range, with a 1.4kW power rating, 3 hole starter mount type and a 231mm overall length.

This starter motor suits Bosch applications and uses an M10 mount hole diameter with mount centres of 106mm at A and 66mm at C, with B also listed at 66mm. The flange diameter is 76mm and the pinion diameter is 25mm, so matching the mounting and nose dimensions is important before purchase.

OEX lists this unit under part number BXS0122 and as a dry clutch starter motor. It weighs 4.32kg and carries a warranty of 3 years for passenger use or 1 year for commercial use, which should be considered alongside the intended application and duty cycle.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Bosch style fitment
• 3 hole starter mount
• New unit

Specifications

• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.4kW
• Suits unit make: Bosch

Fitment guidance

• Fitment details supplied reference Volvo applications, including Volvo 260, 850, C70, S40, S60, S70, S80, V40, V50, V70, XC70 and XC90.
• The fitment list includes Volvo 260 model years from 1974 through 1982, and Volvo 850 model year coverage begins at 1992 in the supplied preview.
• Because the application data is grouped and model-specific, confirm the part number, mounting pattern, rotation, tooth count and overall dimensions against the vehicle before ordering.

Application and Buying Notes

When matching this starter motor, the most important checkpoints are the part number BXS0122, 12V system voltage, clockwise rotation and the 9 tooth pinion. The mounting arrangement also matters, with a 3 hole starter mount, 106mm mount centres at A, 66mm at B and C, plus an M10 mount hole diameter.

The Bosch style designation and the stated suit make of Bosch are useful identifiers, but they should still be checked against the vehicle’s existing starter and mounting face. The 76mm flange diameter, 231mm overall length and 25mm pinion diameter are practical dimensions that help confirm the unit will physically match the original installation.

This is a new OEX starter motor with a 1.4kW power rating and dry clutch configuration. The warranty is listed as 3 years for passenger applications and 1 year for commercial applications, so it is worth confirming how the vehicle is used before purchase.

If you are comparing against the original starter, check the tooth count, pinion at rest measurement of 1mm and the clockwise rotation carefully. Those details can differ between apparently similar Bosch style units, and they are often the difference between a direct replacement and a mismatch.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0122 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Mount Centres C 66mm, Number of Teeth 9, Pinion at Rest 1mm, Power Rating 1.4kW, Suits Unit Make Bosch, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 4.32kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0122, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 76mm, Mount Centres B 66mm, Mount Hole Diameter M10, Overall Length 231mm.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS0122 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0122, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975, VOLVO 260 1976. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Always confirm fitment using part number BXS0122, the Bosch style application, and the measured mounting and dimensional details before ordering. Vehicle compatibility should be checked against the existing unit and the listed application data, especially where model year, engine variant or prior replacement history may affect the starter used.

FAQ

What is the part number for this starter motor?

The part number listed is BXS0122. For this listing, part number BXS0122 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The voltage is listed as 12V. For this listing, part number BXS0122 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

It is listed as clockwise rotation, shown as CW. For this listing, part number BXS0122 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number BXS0122 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number BXS0122 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger applications and 1 year for commercial applications. For this listing, part number BXS0122 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO 260, VOLVO 260 1974, VOLVO 260 1975. These details should still be checked against the original unit before ordering.
