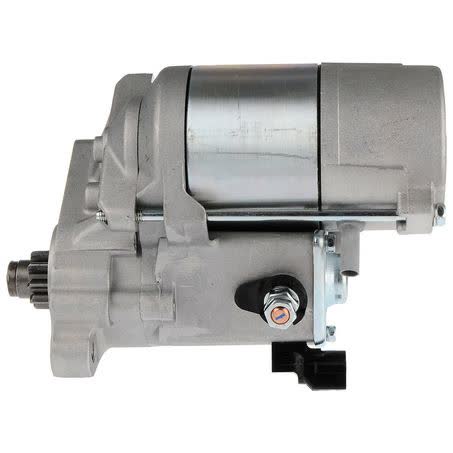

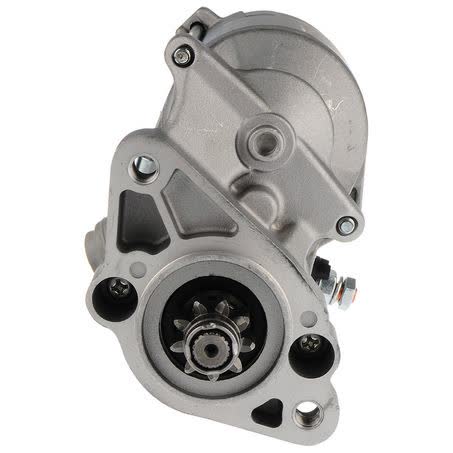

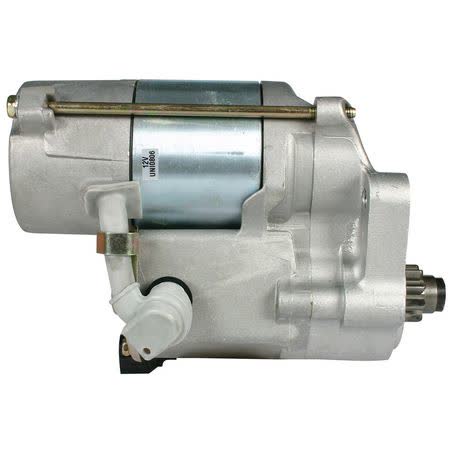

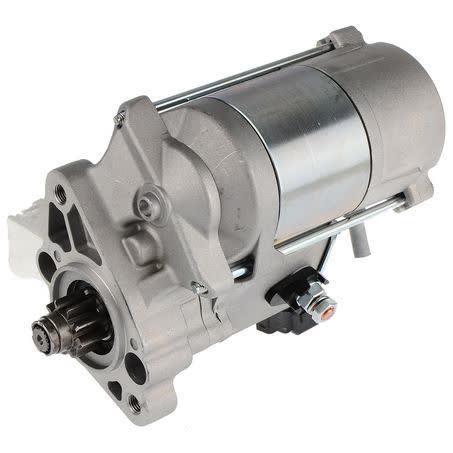

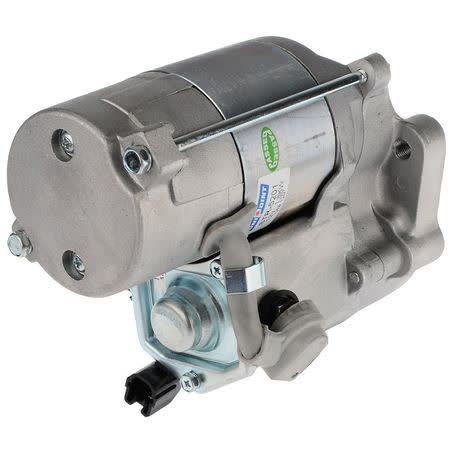

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS533

The OEX starter motor DXS533 is a new 12V unit with 9 teeth, clockwise rotation, and a 1.8kW power rating. It is listed as a Denso style starter motor and suits Denso applications, with a 2 hole starter mount, M10x1.25 mount hole diameter, and a 105mm mount centres A measurement.

This unit measures 210mm overall length, has a 55mm flange diameter, a 29mm pinion diameter, and a 17mm pinion at rest. The starter weighs 5kg and is classed as a dry clutch unit, which are all useful checkpoints when comparing against the vehicle’s original starter.

OEX supplies this starter motor as a replacement part for the Australian automotive aftermarket. The brand identifies this range as Original Equipment Xchange, and this new unit carries a 3 year passenger / 1 year commercial warranty as listed, so it is important to confirm the application details before ordering.

Key Features

• New OEX starter motor for 12V systems
• 9 tooth pinion with clockwise rotation
• Denso style unit suited to Denso applications
• 2 hole starter mount
• 1.8kW power rating
• Dry clutch design

Specifications

• Brand: OEX
• Part No.: DXS533
• Voltage: 12V
• Type: Starter Motor
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.8kW
• Starter mount type: 2 hole

Fitment guidance

• Toyota
• Toyota 4 Runner
• Toyota Granvia
• Toyota Hiace
• Toyota Hilux
• Toyota Hilux Surf
• Toyota Land Cruiser Prado

Application and Buying Notes

Before ordering, compare the DXS533 part number, the 12V rating, 9 tooth count, and clockwise rotation against the starter already fitted to the vehicle. The mount centres A measurement is 105mm, the mount hole diameter is M10x1.25, and the starter uses a 2 hole mount, so these dimensions need to line up with the original unit.

The Denso style designation matters because this starter is suited to Denso applications. The flange diameter is 55mm, the overall length is 210mm, and the pinion diameter is 29mm, so checking clearances and physical match-up is sensible before fitting.

This starter is listed as new and dry, with a 1.8kW power rating. Those details help when matching like for like, especially where the original starter specification is known and the vehicle uses a Denso type unit.

If you are working from a vehicle list rather than the old starter, use the application details carefully and confirm them against the vehicle and the existing part. Starter motors can vary by mounting style, tooth count, rotation, and dimensions, even within the same model range.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. Make sure the intended use of the vehicle matches the warranty category, and keep the purchase record and part number DXS533 for reference.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS533 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 17mm, Power Rating 1.8kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS533, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 55mm, Mount Hole Diameter M10x1.25, Overall Length 210mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS533 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS533, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1990, TOYOTA 4 RUNNER 1991, TOYOTA 4 RUNNER 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number DXS533, 12V specification, 9 tooth count, clockwise rotation, Denso style application, and the listed mounting dimensions before purchase. Vehicle application details should always be checked against the original starter and the vehicle build.

FAQ

What type of starter motor is this?

It is an OEX starter motor, part number DXS533, listed as a new 12V unit with 9 teeth, clockwise rotation, and a 1.8kW power rating.

Is this a new or remanufactured part?

This starter motor is listed as new.

What mounting details are listed?

The starter uses a 2 hole mount, with 105mm mount centres A and M10x1.25 mount hole diameter.

What are the key size measurements?

Listed measurements include 55mm flange diameter, 210mm overall length, 29mm pinion diameter, and 17mm pinion at rest.

What warranty applies?

The listed warranty is 3 years for passenger applications and 1 year for commercial applications.

What vehicles is it listed against?

The provided fitment guidance lists Toyota applications, including Toyota 4 Runner, Toyota Granvia, Toyota Hiace, Toyota Hilux, Toyota Hilux Surf, and Toyota Land Cruiser Prado. Always confirm the exact application with the part number and mounting details before buying.
