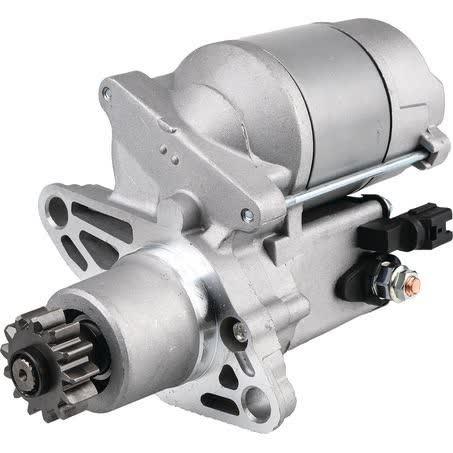

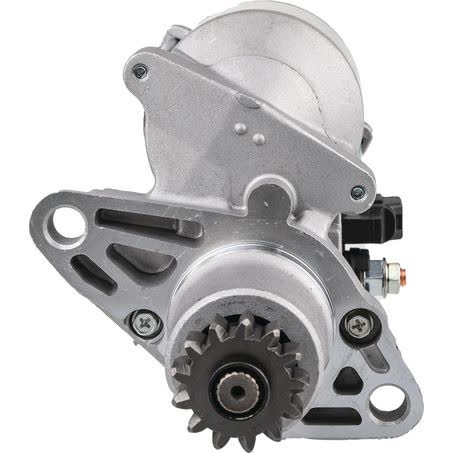

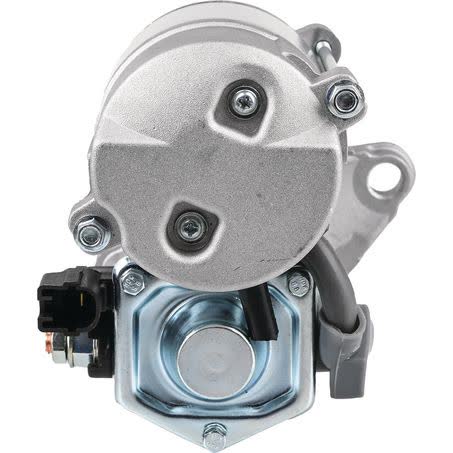

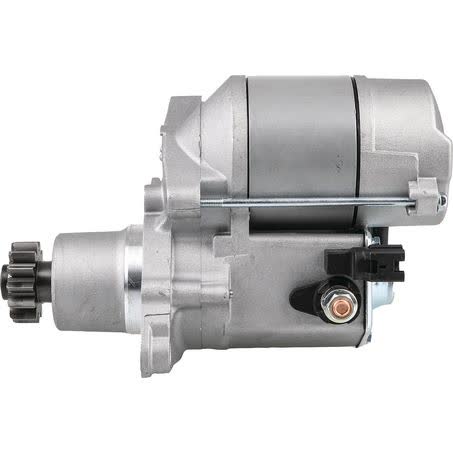

OEX Starter Motor 12V 13 Tooth CCW Denso Style DXS460

The OEX DXS460 is a 12V starter motor with a 13-tooth pinion, CCW rotation and Denso suitability. It is listed as a new unit with a 1.4kW power rating, 2-hole starter mount type and a 55mm flange diameter, so the physical match can be checked against the vehicle’s original starter before ordering.

Key dimensions for identification include a 122mm mount centres A measurement, 11mm mount hole diameter, 208mm overall length, 40mm pinion diameter and 66mm pinion at rest. Those measurements matter when confirming that the replacement starter will sit correctly and engage as intended in the application.

OEX positions this unit as a quality replacement starter motor for the Australian automotive aftermarket. The part number is DXS460, and the product is described as a Denso style starter motor with dry clutch setup, which makes the identifier, rotation and mounting details important checks when matching the replacement to the vehicle.

Key Features

• 12V starter motor
• 13-tooth pinion
• CCW rotation
• Denso style / suits Denso unit make
• New unit
• 2-hole starter mount type

Specifications

• Power rating: 1.4kW
• Voltage: 12V
• Rotation: CCW
• Number of teeth: 13
• Starter mount type: 2 hole
• Mount centres A: 122mm
• Mount hole diameter: 11mm
• Flange diameter: 55mm

Verified application guidance

• Fitment information supplied includes HOLDEN APOLLO.
• Fitment information supplied includes Toyota and Lexus applications, including Lexus ES, Lexus NX and Lexus RX families.
• Fitment information supplied includes Toyota Alphard and Alphard / Vellfire applications, with listed year references shown in the supplied data.
• Other fitment groupings supplied include Toyota Altezza, Aurion, Avalon, Avensis Verso, Blade, Caldina, Camry, Crown, Harrier, Kluger, Mark X, Mark X Zio, MR2, Noah/Voxy, RAV 4 and Tarago.
• Use the vehicle’s original starter details, part number and measured mounting dimensions to confirm the correct application before purchase.

Application and Buying Notes

When matching a starter motor, the most important checks are voltage, rotation, tooth count, mounting style and physical dimensions. This unit is 12V, CCW, 13-tooth, 2-hole mounted and specified with a 122mm mount centres A measurement, so it should only be considered where those details align with the original part.

The DXS460 is listed as a Denso style starter motor with a 55mm flange diameter, 11mm mount hole diameter and 208mm overall length. Those measurements are useful because starters can differ even within the same vehicle range, particularly where engines, transmissions or production updates change the fitment.

If your existing starter differs in pinion diameter, pinion at rest, mounting pattern or rotation direction, do not assume interchangeability. This starter has a 40mm pinion diameter and 66mm pinion at rest, and those dimensions should be checked against the removed unit or the vehicle application details before ordering.

The warranty supplied is 3 years for passenger use and 1 year for commercial use on new units. That warranty detail is relevant when comparing options, but it does not replace fitment checking. The safest approach is to confirm the part number DXS460 together with the starter dimensions and the listed application group for the vehicle.

For older vehicles or vehicles with prior repairs, it is worth comparing the original starter carefully rather than relying only on model name. The supplied fitment coverage includes Toyota, Lexus and Holden applications, but the exact engine and starter arrangement still need to line up with the replacement unit’s 12V, CCW, 13-tooth, Denso style specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS460 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 122mm, Number of Teeth 13, Pinion at Rest 66mm, Power Rating 1.4kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS460, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Denso Style, Flange Diameter 55mm, Mount Hole Diameter 11, Overall Length 208mm, Pinion Diameter 40mm, Rotation CCW.

OEX Starter Motor 12V 13Th CCW Denso Style. Part number DXS460 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS460, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN APOLLO, LEXUS ES, LEXUS ES 2002, LEXUS ES 2003, LEXUS ES 2004, TOYOTA ALPHARD. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by comparing part number DXS460, 12V CCW rotation, 13-tooth pinion, 2-hole mounting and the listed dimensions against the vehicle’s original starter and application details before ordering.

FAQ

Is this starter motor new or re-manufactured?

This OEX starter motor is listed as new.

What is the part number for this starter motor?

The part number supplied is DXS460.

What voltage and rotation does this starter have?

It is a 12V starter motor with CCW rotation.

What type of unit does it suit?

It is described as Denso style and suits Denso unit make.

What are the main mounting dimensions?

The listed mounting details are 2-hole starter mount type, 122mm mount centres A, 11mm mount hole diameter and a 55mm flange diameter.

What warranty is supplied with this unit?

The supplied warranty is 3 years for passenger applications and 1 year for commercial applications.
