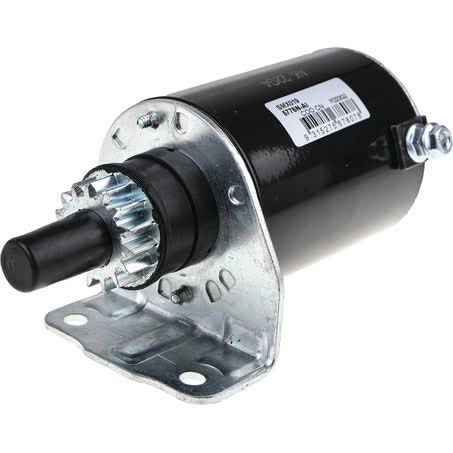

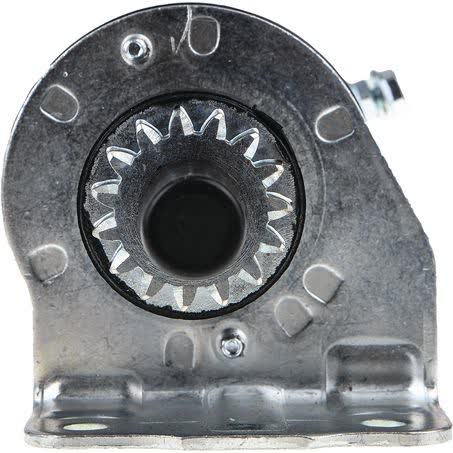

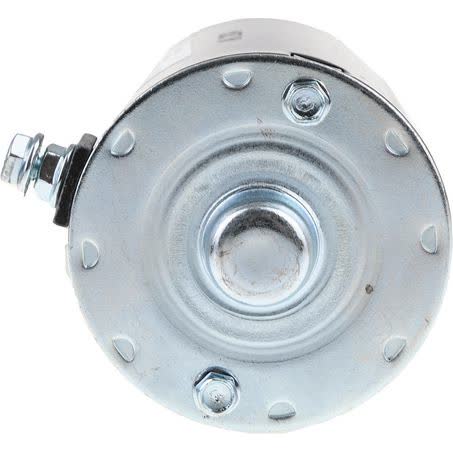

OEX Starter Motor 12V 15T CCW United Technologies Style SMX019

The OEX starter motor listed here is a 12V, 15-tooth unit with counter-clockwise rotation, pad mount type, and part number SMX019. It is supplied new and weighs 2.34kg, with an overall length of 186mm and a 0.7kW power rating.

It is described as a United Technologies style starter motor and suits United Technologies units. Key physical checks include an 8mm mount hole diameter, 58mm mount centres, a 38mm pinion diameter, and 39mm pinion at rest.

The starter is a dry clutch design and is sold as each. For buyers matching an existing starter, the tooth count, rotation, mount style, and pinion dimensions are the main checks to confirm before ordering.

Key Features

• 12V starter motor
• 15-tooth pinion
• Counter-clockwise rotation
• Pad mount type
• New unit
• Suits United Technologies units

Specifications

• Part number: SMX019
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Power rating: 0.7kW
• Number of teeth: 15
• Rotation: CCW
• Starter mount type: Pad

Verified fitment references

• Ditch Witch C16X
• John Deere Hydro Bunker & Rake
• John Deere LT166
• John Deere LT170
• John Deere LTR166
• John Deere SST16
• John Deere SST18
• Kanga KK216V

Application and Buying Notes

Before ordering, match the part number SMX019 and compare the physical details on your existing starter: 12V, 15 teeth, CCW rotation, pad mount, 8mm mount hole diameter, and 58mm mount centres. These are the most useful identifiers for a proper swap, especially where the machine uses a United Technologies style starter.

The pinion measurements also matter. This unit is listed with a 38mm pinion diameter and 39mm pinion at rest, so it is sensible to compare the gear end of the starter carefully rather than relying on appearance alone. The 186mm overall length and 2.34kg weight give further reference points when checking a replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SMX019 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 8, Overall Length 186mm, Pinion Diameter 38mm, Rotation CCW, Voltage 12, Starter Mount Type Pad, Weight 2.34kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. SMX019, Brand OEX, Description OEX Starter Motor 12V 15Th CCW United Tech Style, Mount Centres A 58mm, Number of Teeth 15, Pinion at Rest 39mm, Power Rating 0.7kW, Suits Unit Make United Technologies, New / Reman. New.

OEX Starter Motor 12V 15Th CCW United Tech Style. Part number SMX019 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SMX019, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DITCH WITCH C16X, DITCH WITCH C16X 2018, JOHN DEERE HYDRO BUNKER & RAKE, JOHN DEERE HYDRO BUNKER & RAKE 1980, JOHN DEERE LT166, JOHN DEERE LT166 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number SMX019, 12V system voltage, 15-tooth CCW configuration, and the pad-mount dimensions before purchase. Where the original starter differs in rotation, tooth count, mount centres, or pinion size, it should not be assumed to interchange.

FAQ

What is the part number for this starter motor?

The part number is SMX019. For this listing, part number SMX019 is the main reference point. Listed voltage is 12. Published fitment references include DITCH WITCH C16X, DITCH WITCH C16X 2018, JOHN DEERE HYDRO BUNKER & RAKE. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number SMX019 is the main reference point. Listed voltage is 12. Published fitment references include DITCH WITCH C16X, DITCH WITCH C16X 2018, JOHN DEERE HYDRO BUNKER & RAKE. These details should still be checked against the original unit before ordering.

Does this starter rotate clockwise or counter-clockwise?

This unit is listed as counter-clockwise (CCW) rotation. For this listing, part number SMX019 is the main reference point. Listed voltage is 12. Published fitment references include DITCH WITCH C16X, DITCH WITCH C16X 2018, JOHN DEERE HYDRO BUNKER & RAKE. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 15 teeth. For this listing, part number SMX019 is the main reference point. Listed voltage is 12. Published fitment references include DITCH WITCH C16X, DITCH WITCH C16X 2018, JOHN DEERE HYDRO BUNKER & RAKE. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a pad mount type with 8mm mount holes and 58mm mount centres. For this listing, part number SMX019 is the main reference point. Listed voltage is 12. Published fitment references include DITCH WITCH C16X, DITCH WITCH C16X 2018, JOHN DEERE HYDRO BUNKER & RAKE. These details should still be checked against the original unit before ordering.

Which machines are listed as fitment references?

Listed fitment references include Ditch Witch C16X, John Deere Hydro Bunker & Rake, John Deere LT166, John Deere LT170, John Deere LTR166, John Deere SST16, John Deere SST18, Kanga KK216V, Kanga TK216V, Toro Greenmaster, Toro Grounds Pro, Toro Infield Pro, Toro Sand Pro, and Toro Twister.
