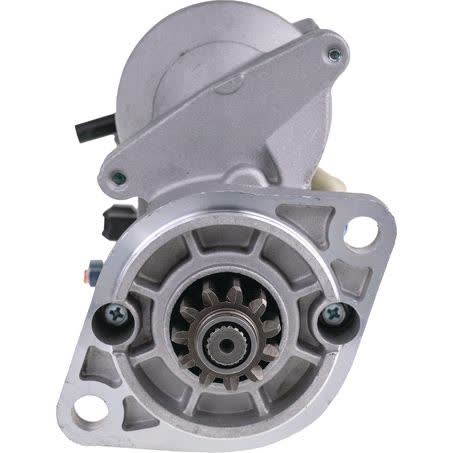

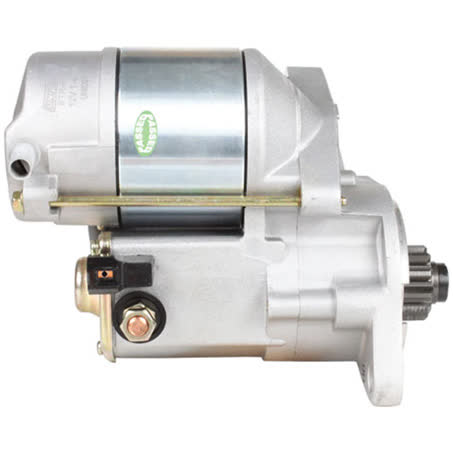

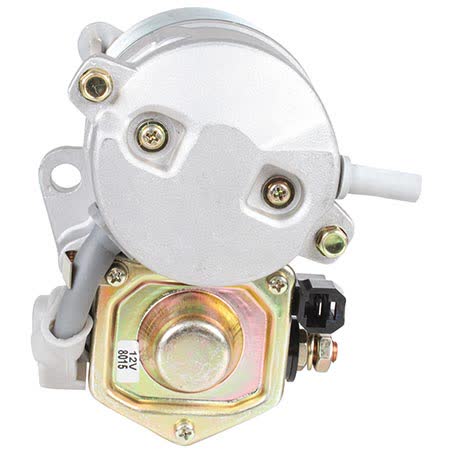

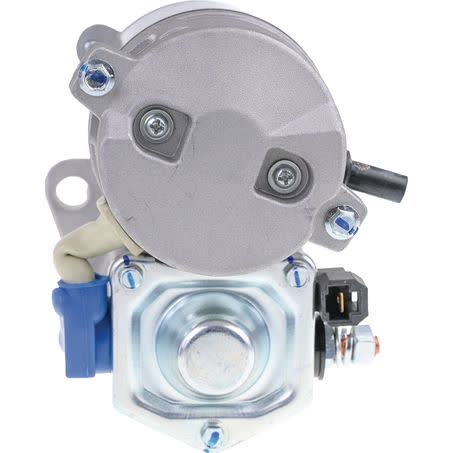

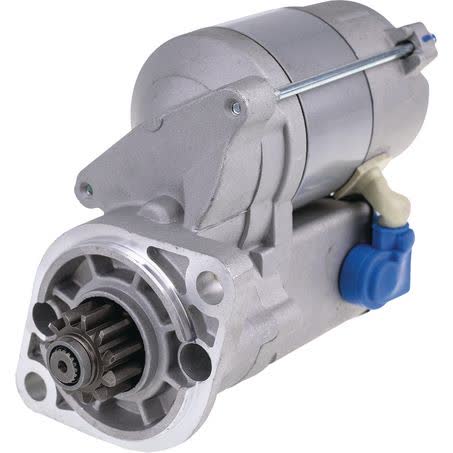

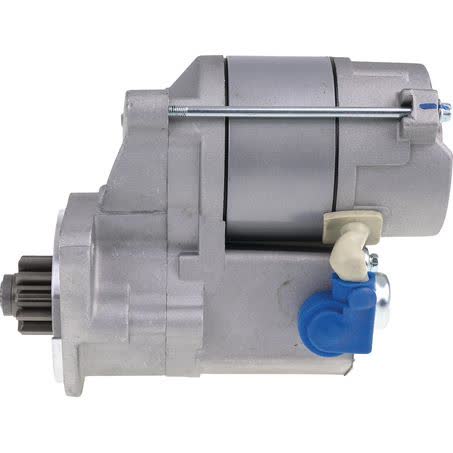

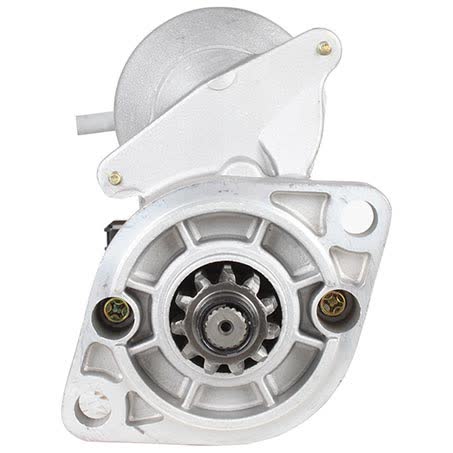

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS274

The OEX MXS274 is a new 12V starter motor in Mitsubishi style, built as an 11 tooth, clockwise rotation unit with a 1.4kW power rating. It uses a 2 hole starter mount, measures 104mm across the mount centres, and has an overall length of 182mm.

Key physical dimensions include a 74mm flange diameter, 11mm mount hole diameter, 34mm pinion diameter, and 19mm pinion at rest. The unit weighs 3.44kg, which can be useful when comparing against an existing starter during identification.

OEX lists this starter as suitable for Mitsubishi applications, and notes that 8 tooth and 11 tooth units will interchange in the relevant application. That makes the tooth count important, along with rotation, voltage, mount style, and the dimensions already listed.

This starter motor is supplied new, not remanufactured, and is covered by OEX's 3 year passenger / 1 year commercial warranty stated for this product family. The part number is MXS274, which should be checked against the vehicle or equipment application before ordering.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: MXS274
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 1.4kW
• Starter mount type: 2 hole

Confirmed fitment guidance

• Suits unit make: Mitsubishi
• 8 tooth and 11 tooth units will interchange in the relevant application

Application and Buying Notes

Before ordering, match the part number MXS274 and confirm the main dimensions against your existing starter, especially the 104mm mount centres, 2 hole mount type, 74mm flange diameter, and 182mm overall length. Those measurements are often the quickest way to avoid a mismatch when the vehicle is not listed in full.

The 12V electrical setup and clockwise rotation must also match the original unit. If the removed starter is an 8 tooth unit, OEX notes that 8T and 11T units will interchange in the relevant application, but the tooth count still needs to be checked carefully before fitment.

The 1.4kW power rating, 34mm pinion diameter, and 19mm pinion at rest are all useful comparison points when assessing replacement compatibility. Even when the application is Mitsubishi style, a starter should be selected by physical match as well as part number.

This unit is supplied new and is covered by the stated OEX warranty of 3 years for passenger use and 1 year for commercial use. If the vehicle or equipment has been modified, or if the old starter differs in tooth count, mount pattern, or rotation, confirm the application details before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS274 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 104mm, Number of Teeth 11, Pinion at Rest 19mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Note 8 and 11T units will interchange, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.44kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS274, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Hole Diameter 11, Overall Length 182mm, Pinion Diameter 34mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS274 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS274, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE, HYSTER MAZDA ENGINE 1980, KOMATSU FG20, KOMATSU FG20 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number MXS274, the listed Mitsubishi application, and the recorded dimensions and tooth count. Do not rely on appearance alone, as 8 tooth and 11 tooth units are only noted as interchangeable in the relevant application.

FAQ

What is the part number for this starter motor?

The part number is MXS274. For this listing, part number MXS274 is the main reference point. Listed voltage is 12. Published fitment references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number MXS274 is the main reference point. Listed voltage is 12. Published fitment references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is a clockwise, or CW, rotation starter motor. For this listing, part number MXS274 is the main reference point. Listed voltage is 12. Published fitment references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

This unit has 11 teeth. For this listing, part number MXS274 is the main reference point. Listed voltage is 12. Published fitment references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter?

It is listed as new. For this listing, part number MXS274 is the main reference point. Listed voltage is 12. Published fitment references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS274 is the main reference point. Listed voltage is 12. Published fitment references include HYSTER H-25XM/35XM, HYSTER H-25XM/35XM 1998, HYSTER MAZDA ENGINE. These details should still be checked against the original unit before ordering.
