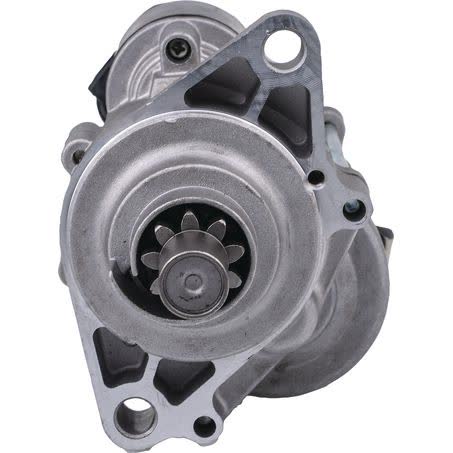

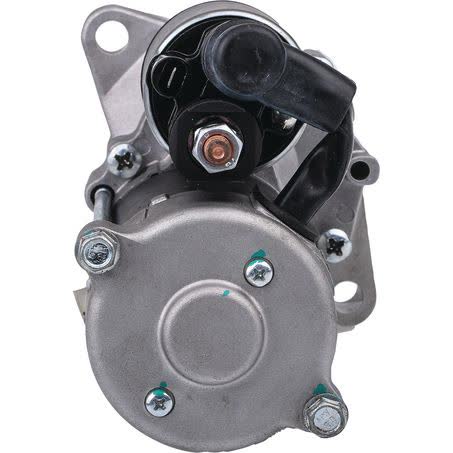

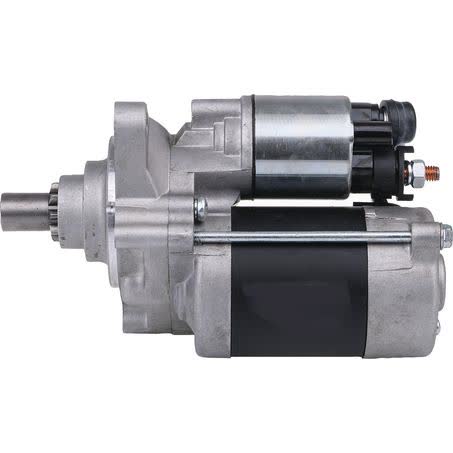

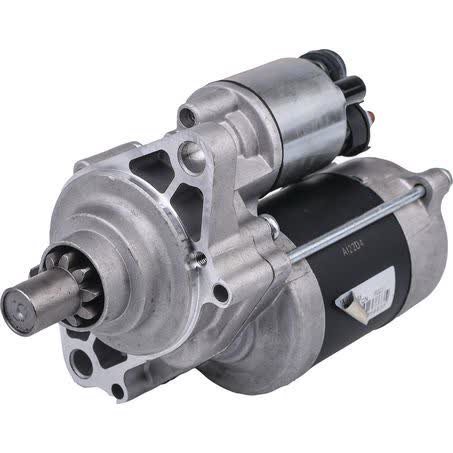

OEX Starter Motor 12V 9TH CW Mitsuba Style MXS804

The OEX Starter Motor MXS804 is a 12V starter motor with 9 teeth, clockwise rotation and a 1.4kW power rating. It is listed as a new unit and is supplied as a 2 hole starter mount type, with a flange diameter of 75mm and mount centres A of 119mm.

This starter is specified as Mitsuba style and suits a Mitsuba unit make. Key physical measurements include an overall length of 215mm, a pinion diameter of 29mm, a pinion at rest measurement of 34mm and a mount hole diameter of 11.5mm. The unit weighs 3.52kg.

For buyers comparing replacements, the part number is MXS804 and the unit of measure is each. The listed warranty is 3 year passenger and 1 year commercial, which is useful when matching the starter to the application and intended use.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a nationwide warranty. Those details sit alongside the physical and electrical specifications, which are the main checks when replacing a starter motor.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit
• 2 hole starter mount

Specifications

• Part No.: MXS804
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.4kW
• Starter mount type: 2 hole

Fitment guidance

• Fitment preview supplied for Honda applications including Accord, Odyssey and Prelude
• Honda Accord applications are shown across multiple years including 1985 through 1996 in the supplied fitment preview

Application and Buying Notes

When replacing a starter motor, the safest match is the part number and the unit dimensions. MXS804 is a 12V, 9 tooth, clockwise starter with a 1.4kW rating, so the electrical and mechanical setup must align with the vehicle’s original arrangement.

The mounting details matter just as much as the voltage. This unit has a 2 hole starter mount, 119mm mount centres A, an 11.5mm mount hole diameter and a 75mm flange diameter, so the physical fit needs to be checked against the old starter before ordering.

The listed Mitsuba style and the note that it suits a Mitsuba unit make are important compatibility checkpoints. If the existing starter is not Mitsuba style, or if the original part differs in tooth count, rotation or mounting pattern, the safer approach is to confirm by part number and measurements rather than relying on appearance alone.

The starter is a new unit and is listed as dry clutch use. For commercial use, the warranty is 1 year, while passenger use is covered for 3 years, so it is worth matching the intended use to the warranty category at the time of purchase.

If you are comparing against the removed unit, check overall length at 215mm, pinion diameter at 29mm, pinion at rest at 34mm and the 3.52kg weight. Those figures help confirm you are looking at the same physical starter family and reduce the risk of ordering a similar but incompatible part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS804 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 119mm, Number of Teeth 9, Pinion at Rest 34mm, Power Rating 1.4kW, Suits Unit Make Mitsuba, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS804, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsuba Style, Flange Diameter 75mm, Mount Hole Diameter 11.5, Overall Length 215mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Mitsuba Style. Part number MXS804 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS804, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA ACCORD, HONDA ACCORD 1985, HONDA ACCORD 1986, HONDA ACCORD 1987. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number MXS804, the Mitsuba style application, and the supplied measurements before ordering. Vehicle compatibility should be checked against the original starter’s voltage, tooth count, rotation, mount type and dimensions, especially where the vehicle history or previous repairs are uncertain.

FAQ

What is the part number for this starter motor?

The part number is MXS804.

What voltage and rotation does this starter have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The starter has 9 teeth.

What mount type does it use?

It uses a 2 hole starter mount, with mount centres A of 119mm.

What vehicles are shown in the fitment preview?

The supplied fitment preview includes Honda applications, with Honda Accord shown across multiple years, and Honda Odyssey and Honda Prelude listed as fitment makes. Fitment should still be confirmed against the part number and measurements before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
