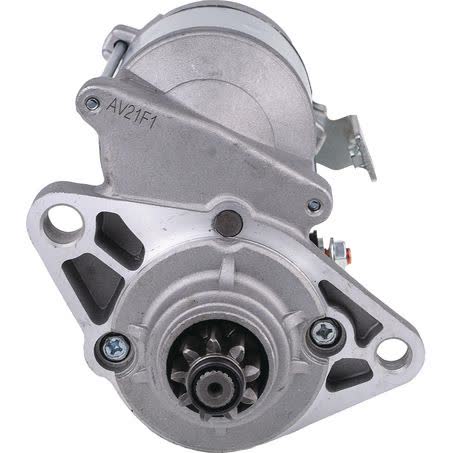

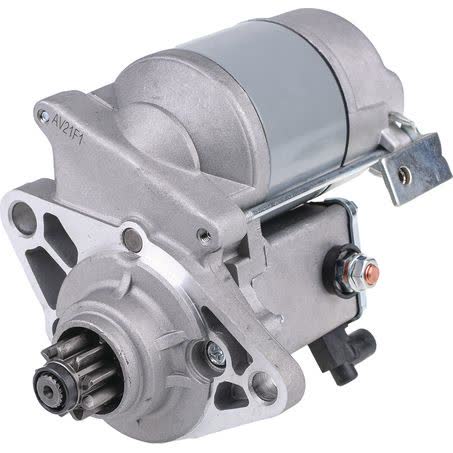

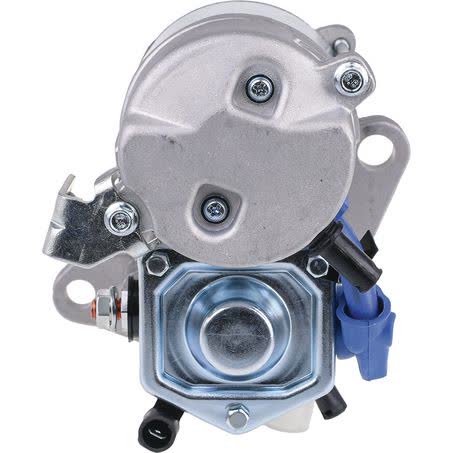

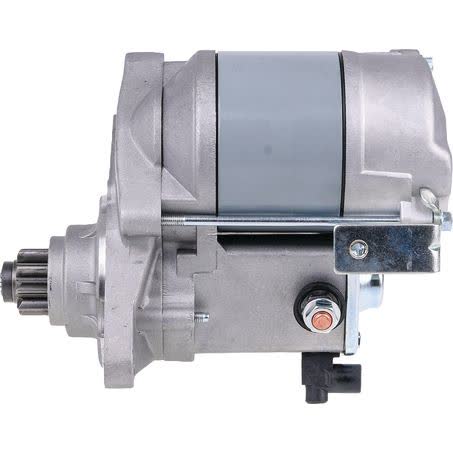

OEX Starter Motor 12V 9TH CW Denso Style MXS807

The OEX MXS807 is a 12V starter motor in a Denso style configuration with clockwise rotation, 9 teeth, and a 1.4kW power rating. It is a new unit with a 2-hole starter mount type, 75mm flange diameter, and 122mm mount centres, so the physical details can be checked before ordering.

This starter motor measures 188mm overall length, has a 29mm pinion diameter, a 40mm pinion at rest, and mount hole diameters of 13 / 11mm. Those dimensions matter when matching a replacement starter, especially where the original unit needs to align correctly with the bellhousing and mounting points.

OEX lists this unit as suited to Mitsubishi applications, and the provided fitment data also points to Honda Accord and Honda Prelude applications across multiple years. Because starter motors are not matched safely by voltage alone, the part number MXS807 and the physical measurements should be confirmed against the vehicle and the removed unit before purchase.

Key Features

• 12V starter motor
• Clockwise rotation
• 9-tooth pinion
• Denso style configuration
• 1.4kW power rating
• New unit

Specifications

• Part number: MXS807
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.4kW
• Flange diameter: 75mm

Fitment information supplied for this part

• Honda Accord
• Honda Accord 1985
• Honda Accord 1986
• Honda Accord 1987
• Honda Accord 1988
• Honda Accord 1989
• Honda Accord 1990
• Honda Accord 1992

Application and Buying Notes

When comparing a starter motor, the key checks are voltage, rotation, tooth count, mounting style, and the physical dimensions. For this OEX unit, the important identifiers are 12V, clockwise rotation, 9 teeth, 1.4kW output, 122mm mount centres, and a 2-hole starter mount type. If any of those differ from the existing starter, it may not be the correct match even if the vehicle looks similar.

The listed dimensions give a practical way to cross-check the replacement before fitting. This unit has a 75mm flange diameter, 188mm overall length, a 29mm pinion diameter, a 40mm pinion at rest, and mount hole diameters of 13 / 11mm. Those measurements are useful when comparing to the old part, especially where the engine family or transmission arrangement has seen changes over the years.

The fitment data supplied alongside this starter points to Honda Accord applications across 1985, 1986, 1987, 1988, 1989, 1990, 1992, 1993, 1994, 1995 and 1996, plus Honda Prelude. The product also carries a suit note for Mitsubishi, so the safest approach is to confirm the exact part number MXS807 and compare the starter’s physical details against the vehicle already fitted.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use on this new unit. That is useful context when you are choosing between replacement options, but it does not replace the need to confirm the part number, the CW rotation, and the 9-tooth drive before ordering.

If the removed starter is available, compare it directly to the measurements above rather than relying on appearance alone. The mount centres, flange diameter, and pinion position are particularly useful on starter motors because a close-looking unit can still differ in bolt spacing or engagement depth. Confirming those details first helps avoid delays and repeat returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS807 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 122mm, Number of Teeth 9, Pinion at Rest 40mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS807, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 75mm, Mount Hole Diameter 13 / 11, Overall Length 188mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number MXS807 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS807, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA ACCORD, HONDA ACCORD 1985, HONDA ACCORD 1986, HONDA ACCORD 1987. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking part number MXS807, the 12V clockwise Denso style configuration, and the physical measurements against the vehicle and the original starter motor before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is MXS807.

Is this a 12V starter motor?

Yes. The listed voltage is 12V.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 9 teeth.

Which vehicles are listed in the supplied fitment data?

The supplied fitment data lists Honda Accord across the years 1985, 1986, 1987, 1988, 1989, 1990, 1992, 1993, 1994, 1995 and 1996, plus Honda Prelude. The product information also notes suitability for Mitsubishi applications.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
