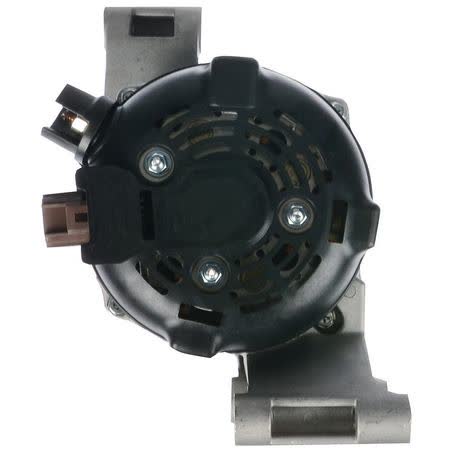

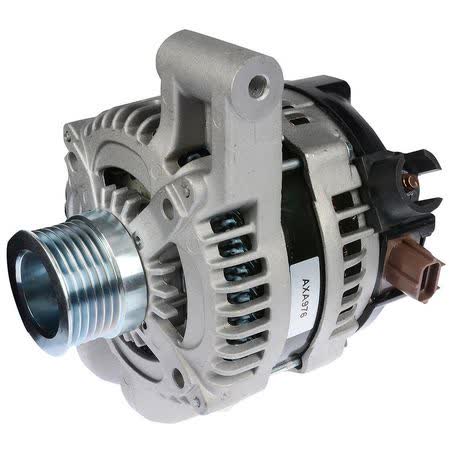

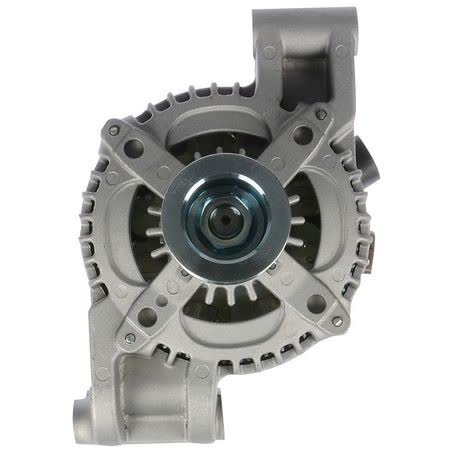

OEX Alternator 12V 160A Autolite Style AXA976

The OEX AXA976 is a new 12V alternator rated at 160 amps and built in an Autolite style configuration. It uses an internal regulator, a 6 groove pulley, and an alternator mount pad layout, which are the key details to confirm when matching it to the vehicle or the removed unit.

This unit carries a part number of AXA976 and an OEM number of 104210-5800. The listed mounting dimensions include 69mm inside mounting legs, 180mm mount centre to centre, 72mm mount leg thickness, 8mm adjusting hole diameter, and 8mm pivot hole diameter, so physical comparison is important before purchase.

As a rotating electrical component, the alternator’s output rating, pulley section, regulator type, and mounting pattern all need to align with the application. The note also states that a circuit upgrade may be required, so it is worth checking the vehicle’s charging circuit condition and the existing wiring setup before fitting.

Key Features

• 12V alternator rated at 160 amps
• Autolite style configuration
• Internal regulator
• 6 groove pulley
• New unit, sold each
• Circuit upgrade may be required

Specifications

• Brand: OEX
• Part No.: AXA976
• OEM Number: 104210-5800
• Voltage: 12V
• Power Rating: 160A
• Regulator Type: Internal
• Pulley Section: 6 groove
• Pulley Outside Diameter: 53mm

Fitment guidance

• Fitment information provided for Ford applications includes Falcon, Focus and Kuga variants.
• Sample applications listed include Ford Falcon 2012, 2013, 2014, 2015 and 2016.
• Because alternators can differ by engine, mounting style, pulley alignment and wiring, confirm the part number, mounting measurements and regulator style against the vehicle before ordering.

Application and Buying Notes

The most important checks on this alternator are the part number AXA976, the OEM number 104210-5800, and the physical dimensions around the 69mm inside mounting legs and 180mm centre to centre mounting pattern. Those measurements help confirm that the unit will sit correctly in the bracket and line up with the belt drive.

The 160 amp output rating is a meaningful detail when replacing a charging system component, but it should be matched to the vehicle’s original specification rather than treated as a universal upgrade. The note that a circuit upgrade may be required means the existing wiring, fusible links, and charging circuit condition should be inspected before installation.

The 6 groove pulley, 53mm pulley outside diameter, and internal regulator are all important compatibility points. If the removed alternator differs in pulley section, regulator type, or mount style, the replacement may not suit the vehicle without further verification.

This is a new alternator, sold each, with a listed weight of 6.2kg. For a job where downtime matters, it is sensible to compare the old unit to the listed dimensions before removing the vehicle from service, especially where Ford Falcon, Focus or Kuga applications are involved.

If you are unsure whether the alternator is correct, compare the label on the removed unit, the mounting ear spacing, the pulley groove count and the regulator type. Those details are usually more reliable than appearance alone, particularly on Autolite style charging components that may look similar across different applications.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA976 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

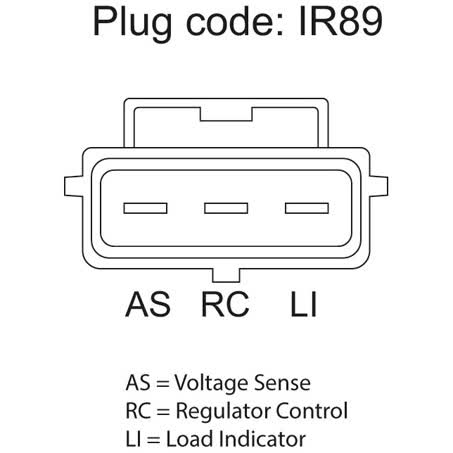

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 69mm, Pin Code IR89, Power Rating (Amp) 160, Pulley Section 6 Groove, Suits Unit Make Autolite, Note Circuit upgrade may be required, Mount Cnt to Cnt 180mm.

Additional published details for cross-checking include OEM Number 104210-5800, Product Group 2 ALTERNATORS, Part No. AXA976, Brand OEX, Description OEX Alternator 12V 160A Autolite Style, Adjusting Hole Diameter 8, Mount Leg Thickness 72mm, Pivot Hole Diameter 8, Pulley Outside Diameter 53mm.

OEX Alternator 12V 160A Autolite Style. Part number AXA976 should be checked first. Listed voltage is 12. Listed output rating is 160. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA976, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 160 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using the part number AXA976, the OEM number 104210-5800, and the listed mounting and pulley dimensions before ordering. Application details for Ford Falcon, Focus and Kuga are provided as guidance only and should be checked against the vehicle and the removed alternator.

FAQ

What type of alternator is this?

It is a new OEX alternator in Autolite style, rated at 12V and 160A, with an internal regulator and a 6 groove pulley.

What part number should I use to match it?

The listed part number is AXA976. The OEM number provided is 104210-5800.

Does this alternator suit Ford vehicles?

Fitment guidance includes Ford Falcon, Ford Focus and Ford Kuga applications, with sample Falcon years listed from 2012 to 2016. Always confirm the exact application before buying.

What mounting measurements are listed?

The listed measurements are 69mm inside mounting legs, 180mm mount centre to centre, 72mm mount leg thickness, 8mm adjusting hole diameter and 8mm pivot hole diameter.

Is the pulley a 6 groove type?

Yes. The pulley section is listed as 6 groove, with a 53mm pulley outside diameter.

What warranty is provided?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
