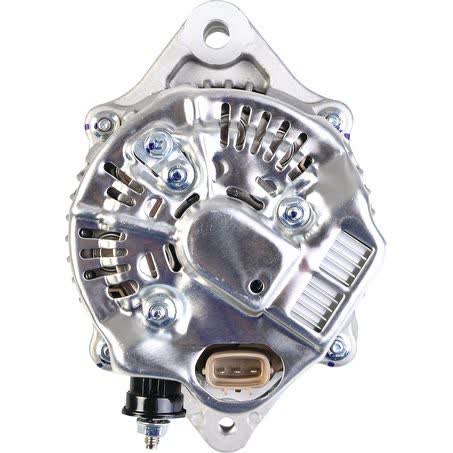

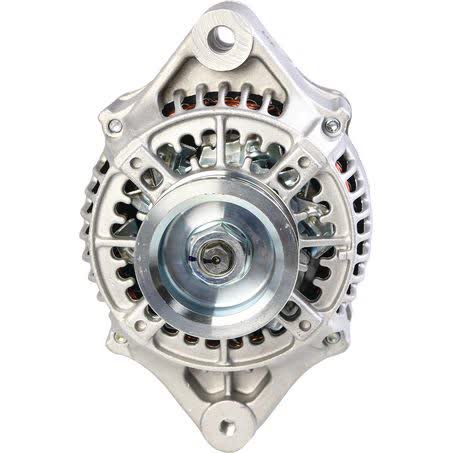

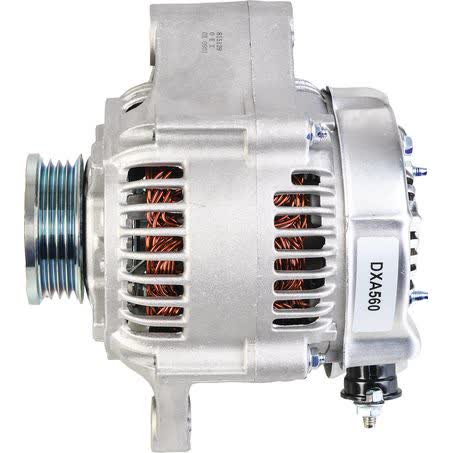

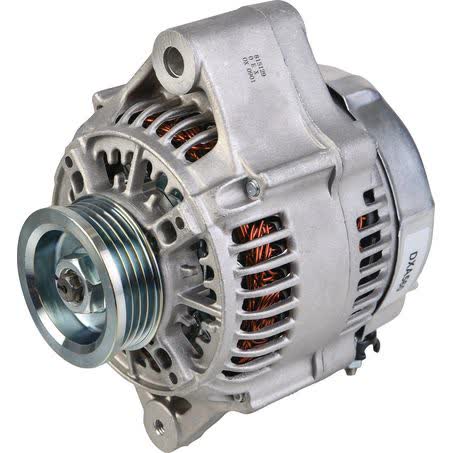

OEX Alternator 12V 80A Denso Style DXA560

The OEX Alternator DXA560 is a 12V, 80A unit in Denso style, supplied new and built with an internal regulator. It uses a 4 groove pulley with a 59mm outside diameter, and the alternator mount is a single leg layout with a 164mm centre-to-centre mount measurement.

Key physical checks include a 58mm mount leg thickness, a 10mm pivot hole diameter, and an M8x1.25 adjusting hole. The unit weighs 5.46kg, so it is worth comparing the existing alternator carefully before ordering.

This alternator is listed as suitable for Denso applications and carries part number DXA560. Warranty cover is 3 years for passenger use and 1 year for commercial use, which gives a clear reference point when matching the part to the vehicle application and duty cycle.

Key Features

• 12V alternator with 80A output
• Denso style unit
• Internal regulator
• New unit
• Single leg alternator mount
• 4 groove pulley

Specifications

• Power rating: 80A
• Voltage: 12V
• Regulator type: Internal
• Pulley outside diameter: 59mm
• Pulley section: 4 groove
• Mount leg thickness: 58mm
• Pivot hole diameter: 10mm
• Mount centre to centre: 164mm

Fitment guidance

• Supported fitment information includes Holden Cruze.
• Supported fitment information includes Suzuki Carry.
• Supported fitment information includes Suzuki Grand Vitara (inc XL-7).
• Supported fitment information includes Suzuki Jimny.
• Supported fitment information includes Suzuki Liana.

Application and Buying Notes

Before ordering, compare the part number DXA560, the Denso style construction, and the mounting details against the alternator currently fitted to the vehicle. The important checks here are the single leg mount, 164mm mount centre-to-centre, 58mm mount leg thickness, 10mm pivot hole, and M8x1.25 adjusting hole.

The 12V and 80A rating matter because alternators must suit both the vehicle electrical system and the required charging output. The 4 groove pulley with a 59mm outside diameter also needs to match the belt arrangement on the application, otherwise the unit may not align correctly or may not be interchangeable with the existing part.

This alternator is listed for Denso applications and is supplied new, not remanufactured. The weight is 5.46kg, which can be a useful cross-check when comparing to the removed unit, especially where there are similar-looking alternators with different bracket dimensions or pulley configurations.

Warranty cover is 3 years for passenger use and 1 year for commercial use. If the vehicle is used commercially, it is worth confirming the duty cycle before purchase, and if you are matching by application rather than by removed sample, verify the vehicle details carefully against the supported fitment information.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA560 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 58mm, Pivot Hole Diameter 10, Pulley Outside Diameter 59mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 164mm, Weight 5.46kg.

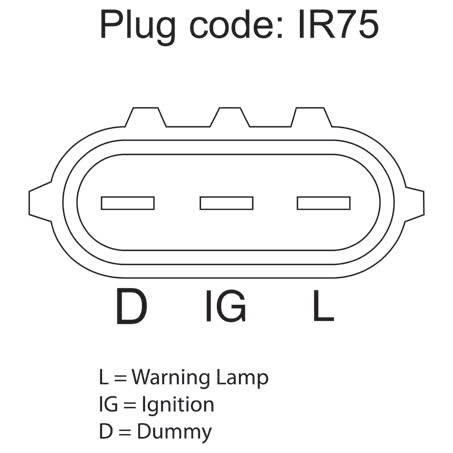

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA560, Brand OEX, Description OEX Alternator 12V 80A Denso Style, Adjusting Hole Diameter M8x1.25, Pin Code IR75, Power Rating (Amp) 80, Pulley Section 4 Groove, Suits Unit Make Denso, Alternator Mount Single Leg.

OEX Alternator 12V 80A Denso Style. Part number DXA560 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA560, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number DXA560, the Denso style specification, and the listed mounting and pulley measurements before purchase. Vehicle application details should be checked carefully against the existing alternator and the supported fitment information.

FAQ

What is the part number for this alternator?

The part number is DXA560. For this listing, part number DXA560 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

Is this a 12V alternator?

Yes. This alternator is 12V. For this listing, part number DXA560 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

What is the output rating?

It is rated at 80A. For this listing, part number DXA560 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

Does it use an internal regulator?

Yes. The regulator type is internal. For this listing, part number DXA560 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

What pulley does it have?

It has a 4 groove pulley with a 59mm outside diameter. For this listing, part number DXA560 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

What warranty applies?

Warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXA560 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.
