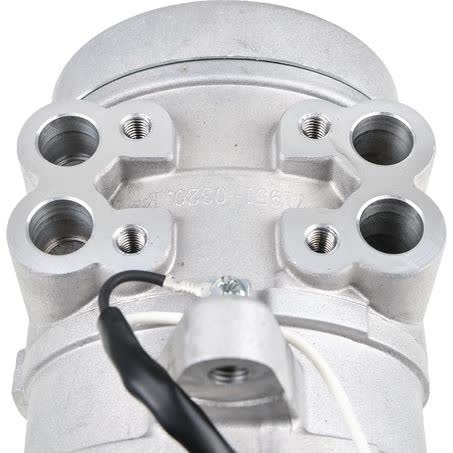

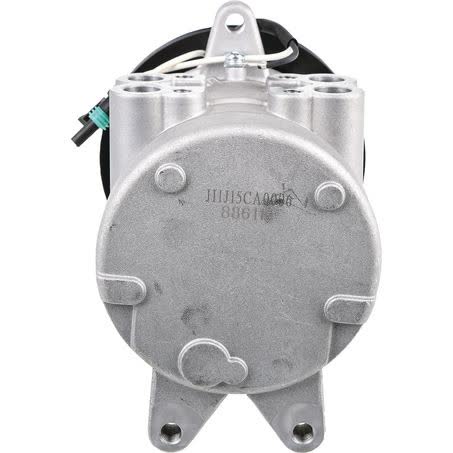

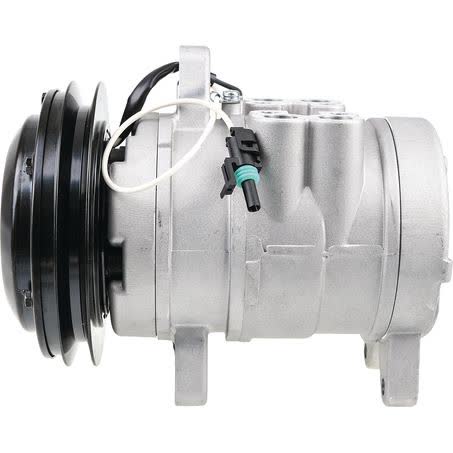

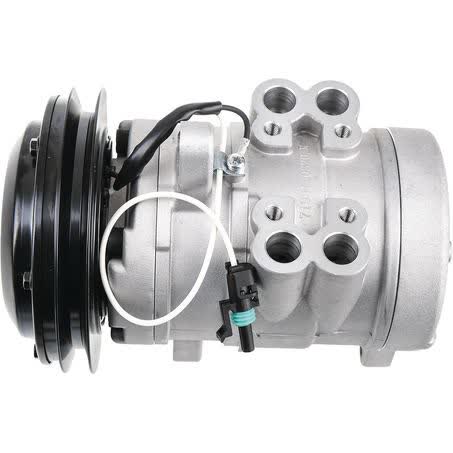

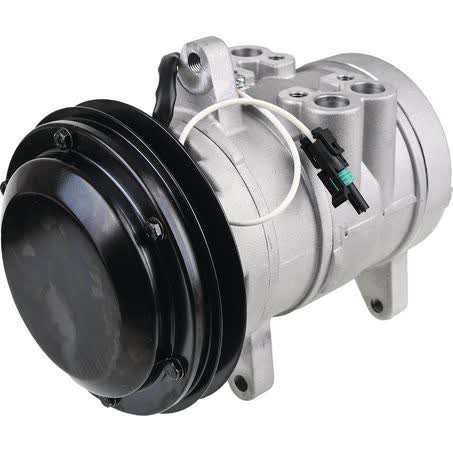

OEX Air Conditioning Compressor 12V Direct Mount Denso Style CXD2096

The OEX air conditioning compressor is a 12V direct mount unit in Denso style, identified by part number CXD2096. It is listed with an ear mount compressor mounting, O ring fitting type, and a 146mm clutch diameter, so those mounting and connection details should be checked carefully against the vehicle before ordering.

This compressor suits Denso applications and uses PAG46 oil. The specified oil capacity is 150ml, and the unit weight is 10.04kg, which is useful when comparing like-for-like replacements or confirming the correct component has been selected for the job.

The listed application range covers John Deere tractors 2250 to 2850 with 4.239D/T 3.9L engines from 01/1986 onward, Tractor 3350 with 6.359D 5.9L from 01/1986 onward, and Tractor 4050 to 4850 with 6.466A/D/T 7.6L from 01/1983 to 12/1988. That fitment should be checked against the exact machine model and the original compressor details before purchase.

Key Features

• 12V air conditioning compressor
• Direct mount Denso style
• Part number CXD2096
• Ear mount compressor mounting
• 146mm clutch diameter
• O ring fitting type

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 12V
• Compressor mounting: Ear mount
• Pulley section: A
• Suits unit make: Denso
• Clutch diameter: 146mm

Known application details

• John Deere Tractor 2250 - 2850, 4.239D/T 3.9L, from 01/1986 onward
• John Deere Tractor 3350, 6.359D 5.9L, from 01/1986 onward
• John Deere Tractor 4050 - 4850, 6.466A/D/T 7.6L, from 01/1983 to 12/1988

Application and Buying Notes

Before buying, compare the part number CXD2096, the 12V electrical setup, and the ear mount style with the compressor already fitted to the machine. Matching the mounting pattern and the O ring connection type matters just as much as the model name, especially on agricultural equipment where multiple compressor styles can appear across a similar series.

The 146mm clutch diameter is another practical check point. If the clutch size, pulley section A, or mounting arrangement differs from the removed unit, it is best to confirm the application again rather than assume interchangeability. A replacement clutch reference of 047300-273_ is also listed for this compressor.

This unit uses PAG46 oil with a specified oil capacity of 150ml. When replacing an air conditioning compressor, the lubricant type and fill amount need to align with the system requirements and the component being installed. Careful handling is important because the compressor is a 10.04kg component and the listing does not include a dust cover.

If you are matching a John Deere machine, check the model, engine family, and production date together. The listed coverage includes 2250 to 2850, 3350, and 4050 to 4850 applications, but fitment should still be confirmed against the exact vehicle and existing compressor details before work begins.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD2096 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section A, Suits Unit Make Denso, Note Oil type PAG46., Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD2096, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Denso Style, Clutch Diameter 146mm, Fitting Type O Ring, Replacement Clutch 047300-273_, Voltage 12, Oil Capacity 150ml, Weight 10.04kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 12V Direct Mount Denso Style. Part number CXD2096 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD2096, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JOHN DEERE 310C, JOHN DEERE 310D, JOHN DEERE 310D 1995, JOHN DEERE 310D 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by checking the part number CXD2096, the 12V direct mount Denso style configuration, the ear mount pattern, and the O ring connection details against the vehicle before ordering.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor in 12V direct mount Denso style, part number CXD2096.

What mounting type does it use?

The listed compressor mounting is ear mount.

What oil does it use?

The listed oil type is PAG46, and the oil capacity is 150ml.

Which clutch size is listed?

The clutch diameter listed for this compressor is 146mm.

What vehicles are listed as applications?

The listed applications are John Deere Tractor 2250 to 2850, Tractor 3350, and Tractor 4050 to 4850, with the engine and date ranges shown in the fitment section.

Is fitment guaranteed from the model name alone?

No. Fitment should be confirmed using the part number CXD2096, the 12V direct mount Denso style details, the ear mount configuration, and the O ring connection type against the vehicle already fitted.
