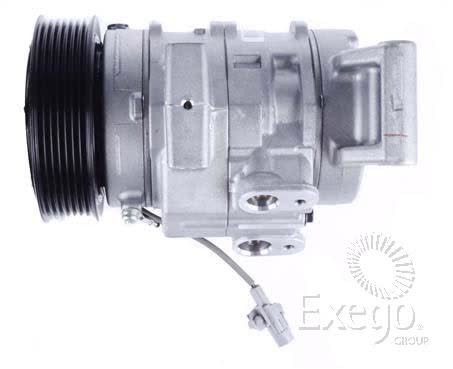

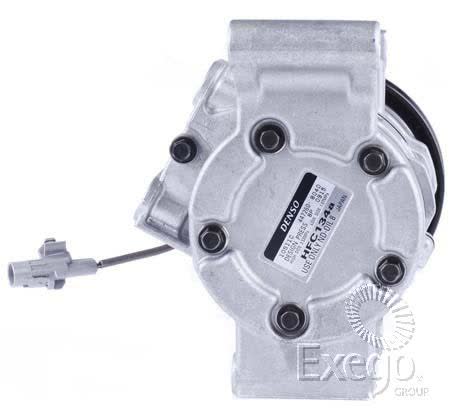

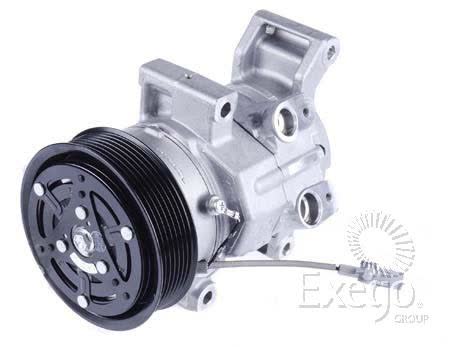

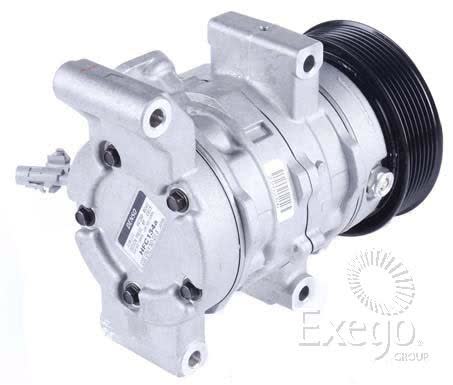

Denso Air Conditioning Compressor 12V Direct Mount 10S11C CXD6269

This Denso air conditioning compressor is a 12V direct mount unit in the 10S11C series, identified by part number CXD6269 and body number 447260-804_. It is listed with a 115mm clutch diameter, 7 groove pulley section, pad fitting type, and a replacement clutch reference of CLX6840.

The unit is specified for Toyota HiLux GGN15 - 25R 4.0L from 02/2005 to 03/2015. That fitment detail is important because the compressor is not a universal part, and the mounting style, pulley groove count, and clutch size all need to line up with the vehicle application.

It is a Denso-made compressor supplied as each unit, weighs 5.74kg, and is noted for use with PAG 46 oil. The compressor mounting is direct mount and the dust cover is listed as no, so it is worth checking the existing vehicle setup carefully before ordering.

For buyers replacing an air conditioning compressor, the most useful identifiers here are the 12V electrical specification, 10S11C series, CXD6269 part number, and the Toyota HiLux application range. Matching those details helps reduce the risk of ordering the wrong component for the system already fitted to the vehicle.

Key Features

• Denso air conditioning compressor
• 12V direct mount compressor
• 10S11C series
• Part number CXD6269
• Toyota HiLux GGN15 - 25R 4.0L application listed
• 115mm clutch diameter

Specifications

• Brand: Denso
• Type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: 10S11C
• Part number: CXD6269
• Body number: 447260-804_
• Clutch diameter: 115mm

Fitment

• Toyota HiLux GGN15 - 25R 4.0L
• 02/2005 - 03/2015

Application and Buying Notes

Before ordering, compare the part number CXD6269, the 10S11C series, and the 12V direct mount layout against the compressor currently fitted to the vehicle. The listed Toyota HiLux application is specific to GGN15 - 25R 4.0L from 02/2005 to 03/2015, so matching the vehicle details matters as much as matching the compressor itself.

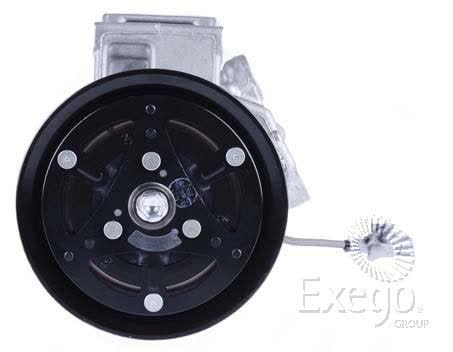

The clutch diameter is 115mm and the pulley section is 7 groove, which are practical checkpoints when confirming the replacement unit. If the existing compressor uses a different pulley arrangement, mounting style, or clutch size, it may not be the correct match even if the vehicle is similar.

This unit is noted to suit Denso equipment and uses PAG 46 oil. That makes the system details important during replacement work, because the compressor should be installed and charged in line with the vehicle’s air conditioning setup and the correct oil type already specified for the part.

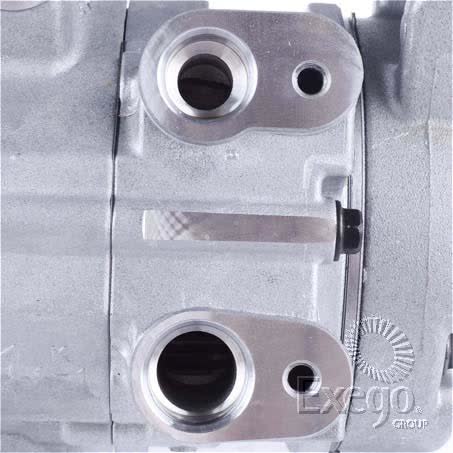

The compressor weighs 5.74kg and is supplied as an each unit, so handling and installation should be planned accordingly. Because the dust cover is listed as no, keep the ports and openings protected during storage and fitting to reduce the risk of dirt entering the system.

The one year warranty provides a basic reference point for the product, but it does not replace the need to verify fitment. A careful check of the vehicle application, compressor series, and mounting details is still the best way to avoid delays and incorrect installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6269 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 115mm, Fitting Type Pad, Replacement Clutch CLX6840, Suits Unit Make Denso, Note Oil Type Pag 46, Weight 5.74kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD6269, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10S11C, Body Number 447260-804_, Compressor Mounting Direct Mount, Pulley Section 7 Groove, Series 10S11C, Voltage 12, Dust Cover Y/N No.

Denso Air Conditioning Compressor 12V Direct Mount 10S11C. Part number CXD6269 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6269, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA HILUX, TOYOTA HILUX 2005, TOYOTA HILUX 2006, TOYOTA HILUX 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number CXD6269, the 10S11C series, the 12V direct mount configuration, and the Toyota HiLux GGN15 - 25R 4.0L application range before purchase.

FAQ

What vehicle is this compressor listed to suit?

It is listed to suit Toyota HiLux GGN15 - 25R 4.0L from 02/2005 to 03/2015.

What is the part number?

The part number is CXD6269.

What voltage is this compressor?

It is a 12V compressor.

What type of mounting does it use?

The compressor mounting is listed as direct mount, with a pad fitting type.

What pulley and clutch details are listed?

It has a 115mm clutch diameter and a 7 groove pulley section. The replacement clutch reference is CLX6840.

What oil type is specified?

The note states PAG 46 oil type.
