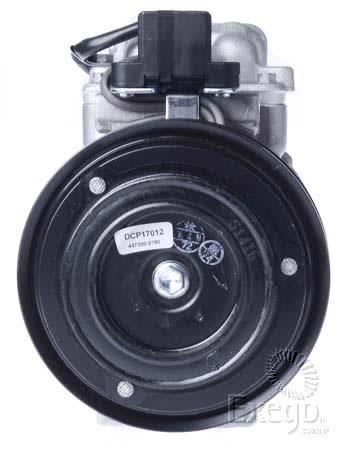

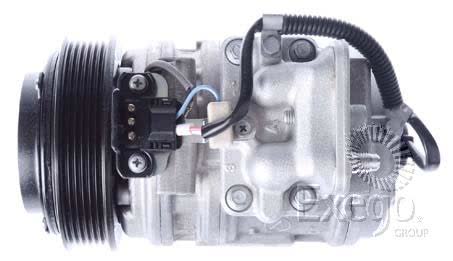

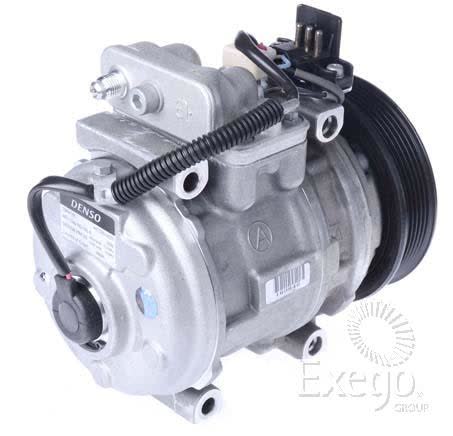

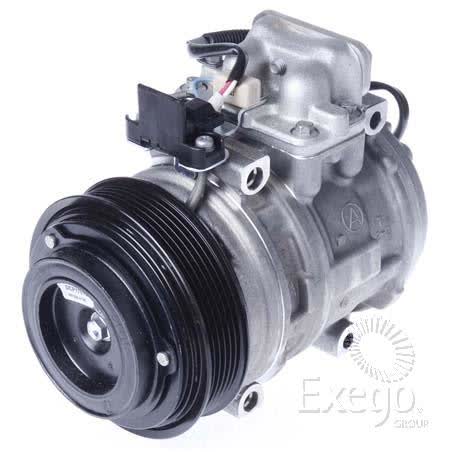

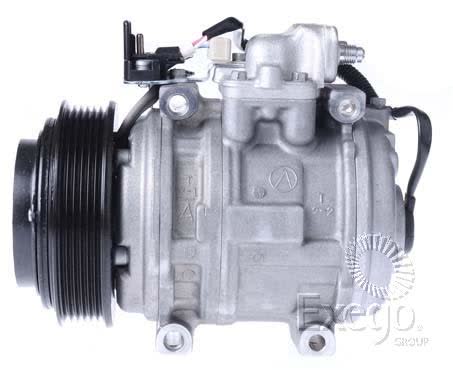

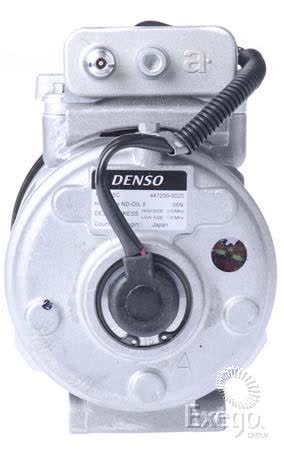

Denso Air Conditioning Compressor 12V Direct Mount 10PA15C CXD6290

This Denso air conditioning compressor is a 12V direct mount unit in the 10PA15C series, identified by part number CXD6290 and body number 447200-002_. It is supplied as an AC component for vehicle climate control applications, with a 6 groove pulley section, 126mm clutch diameter, and PAG 46 oil type noted for the unit.

The compressor is listed with a 100ml oil capacity and a weight of 6.7kg. It is marked as a direct mount design, with fitting type noted as not applicable, and it uses replacement clutch 447300-019_. These details are important when checking whether the compressor matches the existing setup in the vehicle.

Application details supplied with the part include Mercedes-Benz 180/190E W201 1.8L, 2.0L, 2.3L and 2.6L from 10/1987 to 12/1993, Mercedes-Benz 230/260E W124 2.3L and 2.6L from 01/1986 to 12/1992, and Mercedes-Benz E220/280/320 W124 2.2L, 2.8L and 3.2L from 09/1993 to 02/1996. As always, the part number and mounting details should be matched before ordering.

Key Features

• Denso 12V air conditioning compressor
• 10PA15C series
• Direct mount design
• 6 groove pulley section
• 126mm clutch diameter
• Replacement clutch: 447300-019_

Specifications

• Brand: Denso
• Part number: CXD6290
• Product type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Pulley section: 6 groove
• Clutch diameter: 126mm
• Oil capacity: 100ml

Confirmed application details

• Mercedes-Benz 180/190E W201 1.8L, 2.0L, 2.3L and 2.6L, 10/1987 to 12/1993
• Mercedes-Benz 230/260E W124 2.3L and 2.6L, 01/1986 to 12/1992
• Mercedes-Benz E220/280/320 W124 2.2L, 2.8L and 3.2L, 09/1993 to 02/1996

Application and Buying Notes

Before ordering, compare the part number CXD6290 and the body number 447200-002_ against the compressor already fitted to the vehicle. The direct mount setup, 6 groove pulley section, and 126mm clutch diameter need to align with the existing system for the part to be a sensible match.

The listed application covers specific Mercedes-Benz W201 and W124 models across defined date ranges, including 180/190E, 230/260E, and E220/280/320 variants. Those model and engine references are helpful, but they should be checked against the vehicle identification details rather than assumed from the badge alone.

Oil type is noted as PAG 46 and oil capacity as 100ml, which matters when replacing or commissioning an air conditioning compressor. Correct oil type and quantity are part of a proper installation, and the system should be handled by a suitably qualified person if you are not confident working with refrigerant and compressor service procedures.

The unit is supplied with no dust cover and no fitting type listed as applicable, so confirmation of the physical mounting arrangement is important. If the existing compressor uses a different clutch, pulley, or mounting style, the part may not suit even where the vehicle model appears similar.

The one year warranty provides a standard coverage period, but it does not replace the need for an accurate match on part number, mounting style, and vehicle application. For climate control parts in particular, careful checking up front is the safest way to avoid delays and unnecessary returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6290 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 126mm, Fitting Type Not Applicable, Replacement Clutch 447300-019_, Suits Unit Make Denso, Note Oil Type Pag 46, Dust Cover Y/N No.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXD6290, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10PA15C, Body Number 447200-002_, Compressor Mounting Direct Mount, Pulley Section 6 Groove, Series 10PA15C, Voltage 12, Oil Capacity 100ml.

Denso Air Conditioning Compressor 12V Direct Mount 10PA15C. Part number CXD6290 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6290, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number CXD6290, body number 447200-002_, 12V direct mount configuration, and the listed Mercedes-Benz application details before purchase.

FAQ

What vehicle applications are listed for this compressor?

The listed applications are Mercedes-Benz 180/190E W201 1.8L, 2.0L, 2.3L and 2.6L from 10/1987 to 12/1993, Mercedes-Benz 230/260E W124 2.3L and 2.6L from 01/1986 to 12/1992, and Mercedes-Benz E220/280/320 W124 2.2L, 2.8L and 3.2L from 09/1993 to 02/1996.

What is the part number?

The part number is CXD6290.

What compressor series is this?

It is a Denso 10PA15C series air conditioning compressor.

What are the key mounting and pulley details?

It is a direct mount compressor with a 6 groove pulley section and a 126mm clutch diameter.

What oil information is provided?

The listed oil type is PAG 46 and the oil capacity is 100ml.

Does it come with a warranty?

Yes. The listed warranty is one year.
