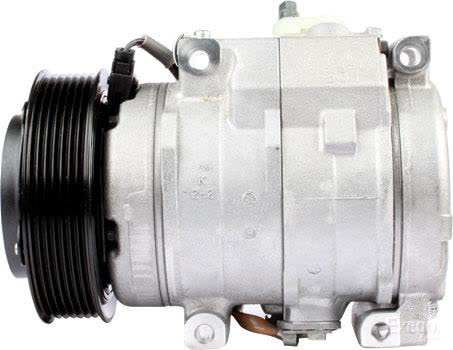

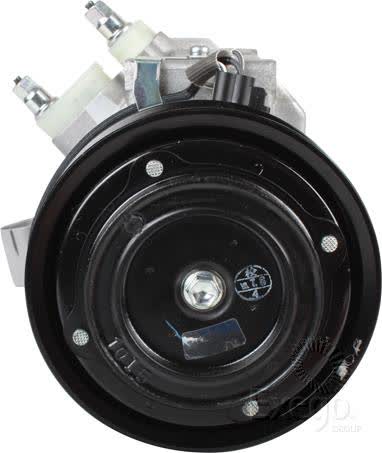

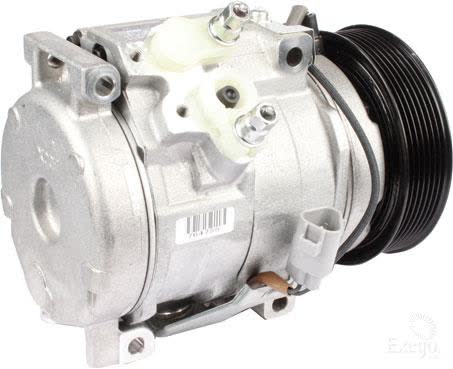

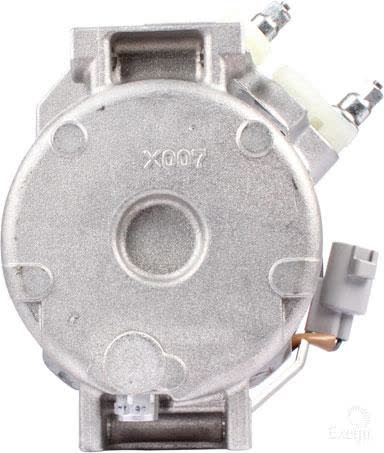

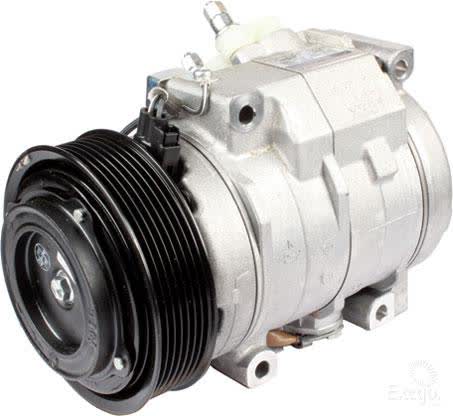

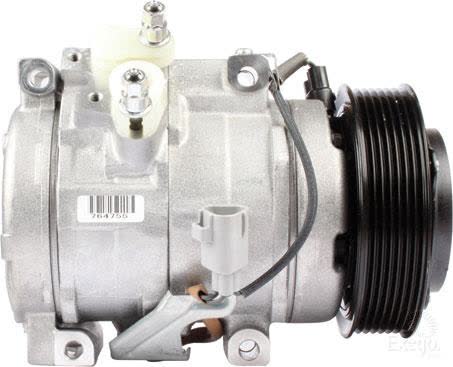

Denso Air Conditioning Compressor 12V Direct Mount 10S17C CXD6303

The Denso Air Conditioning Compressor 12V Direct Mount 10S17C, part number CXD6303, is an air conditioning compressor supplied as a direct mount unit with a 7 groove pulley section and pad fitting type. It is specified with a 124mm clutch diameter and is listed for use with PAG 46 oil.

This compressor is identified as Denso series 10S17C and has an oil capacity of 180ml. The unit weight is 7.2kg and it is supplied without a dust cover. For replacement planning, the listed replacement clutch is 247300-195_.

Fitment information supplied with this unit includes Toyota LandCruiser Prado KDJ120R 3.0L from 11/2006 to 10/2009. That application detail should be checked carefully against the vehicle’s existing compressor arrangement, mounting style and pulley setup before ordering.

A one year warranty is listed for the product. As with any compressor replacement, matching the part number, voltage, mounting type and clutch details is important, particularly where the vehicle has had previous repairs or an updated air conditioning component fitted.

Key Features

• 12V air conditioning compressor
• Direct mount compressor design
• Denso series 10S17C
• Pad fitting type
• 7 groove pulley section
• 124mm clutch diameter

Specifications

• Part number: CXD6303
• Brand: Denso
• Product type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: 10S17C
• Clutch diameter: 124mm
• Pulley section: 7 groove

Verified fitment guidance

• Toyota LandCruiser Prado KDJ120R 3.0L: 11/2006 to 10/2009

Application and Buying Notes

The most important checks on this compressor are the part number CXD6303, the 12V electrical specification, the direct mount configuration and the 7 groove pulley section. Those details need to align with the vehicle’s existing unit, because a compressor can look similar externally while differing in mount style, clutch size or pulley layout.

The listed clutch diameter is 124mm, and the replacement clutch reference is 247300-195_. If you are replacing a failed compressor, it is worth confirming the clutch arrangement on the old unit as well as the mounting face and belt groove count before fitting. The pad fitting type also needs to match the application.

PAG 46 oil is noted, with an oil capacity of 180ml. That matters when replacing an air conditioning compressor because the correct oil type and quantity are part of a proper installation. If the system has been opened or flushed, the rest of the air conditioning circuit should be assessed by a suitably qualified technician before the compressor is put into service.

The Toyota LandCruiser Prado KDJ120R 3.0L application listed for 11/2006 to 10/2009 gives a useful guide, but it should still be checked against the vehicle identification details and the compressor currently fitted. If there has been a change in model year, engine variant or previous air conditioning repair, confirm the match before purchasing.

The one year warranty provides a basic level of coverage on the component itself, but it does not replace the need for correct identification at the time of order. For a compressor, matching the mounting style, pulley section, voltage and application details is the safest way to avoid delays and unnecessary return handling.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6303 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 124mm, Fitting Type Pad, Replacement Clutch 247300-195_, Suits Unit Make Denso, Note Oil Type Pag 46, Dust Cover Y/N No.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXD6303, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10S17C, Body Number 447220-526_, Compressor Mounting Direct Mount, Pulley Section 7 Groove, Series 10S17C, Voltage 12, Oil Capacity 180ml.

Denso Air Conditioning Compressor 12V Direct Mount 10S17C. Part number CXD6303 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6303, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA HIACE, TOYOTA HIACE / COMMUTER, TOYOTA HIACE / COMMUTER 2004, TOYOTA HIACE / COMMUTER 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the part number CXD6303, the 12V direct mount configuration, the 7 groove pulley section, the 124mm clutch diameter and the listed vehicle application before ordering. If the existing compressor differs in any of these details, do not assume it is the same unit.

FAQ

What is the part number for this compressor?

The listed part number is CXD6303.

What vehicle application is shown for this compressor?

The supplied fitment is Toyota LandCruiser Prado KDJ120R 3.0L from 11/2006 to 10/2009.

What voltage does this compressor use?

It is a 12V compressor.

What type of mounting does it have?

The compressor is listed as a direct mount unit with pad fitting type.

What pulley and clutch details are listed?

It has a 7 groove pulley section and a 124mm clutch diameter. The replacement clutch reference listed is 247300-195_.

What oil information is provided?

The compressor notes PAG 46 oil type and an oil capacity of 180ml.
