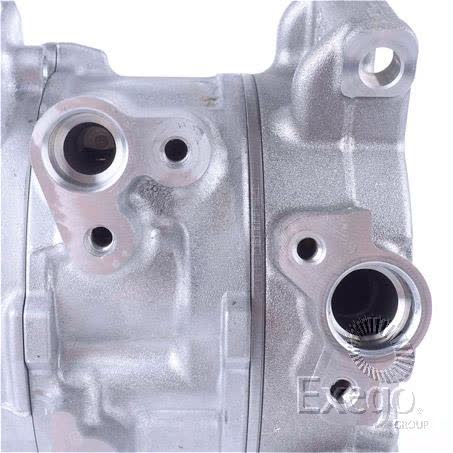

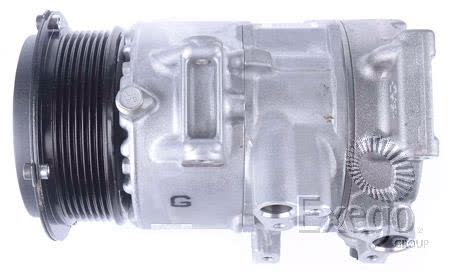

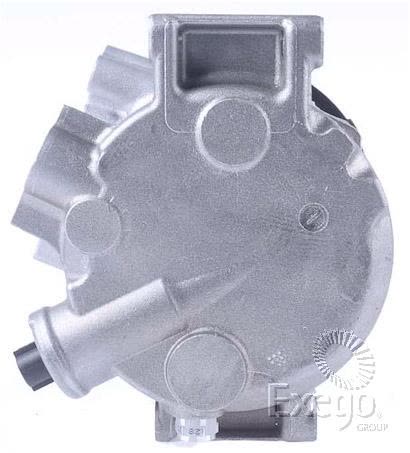

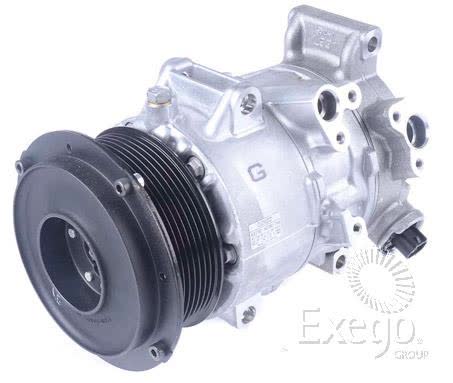

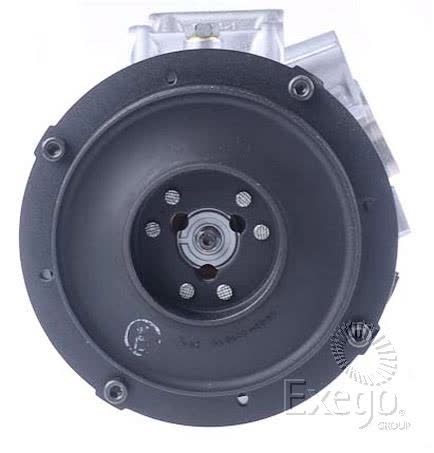

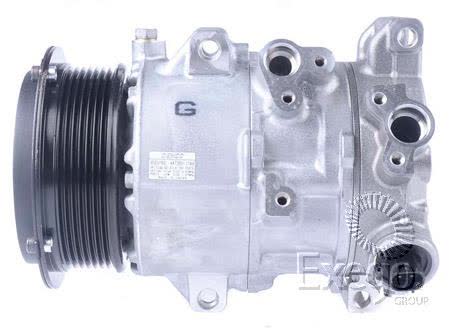

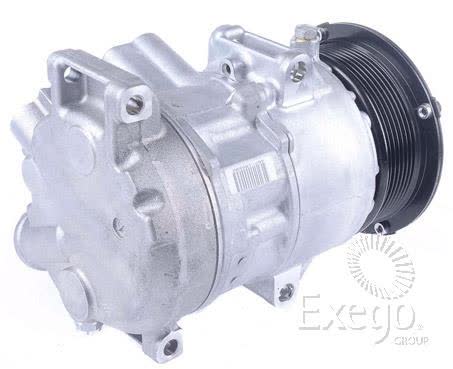

Denso Air Conditioning Compressor 12V Direct Mount 6SEU16C CXD6341

This Denso air conditioning compressor is a 12V direct mount unit in the 6SEU16C series, listed under part number CXD6341. It is supplied r conditioning compressor each, with a pad fitting type and a 7 groove pulley section.

Key physical details are clearly defined for identification and ordering: 110mm clutch diameter, 145ml oil capacity, 6.6kg weight, and oil type PAG 46. The unit is listed with body number 447260-114_ and dust cover status marked No.

The application details supplied for this compressor are Toyota Estima 2.4L from 02/2000 to 01/2006 and Toyota Tarago ACR50R 2.4L from 03/2006 to 06/2012. Those details should be checked carefully against the vehicle already in the workshop, especially where model series, build date, and compressor style need to line up exactly.

Key Features

• Denso 12V air conditioning compressor
• 6SEU16C series
• Direct mount compressor
• Pad fitting type
• 7 groove pulley section
• 110mm clutch diameter

Specifications

• Brand: Denso
• Product type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Fitting type: Pad
• Pulley section: 7 groove
• Clutch diameter: 110mm
• Oil capacity: 145ml

Fitment details supplied

• Toyota Estima 2.4L, 02/2000 to 01/2006
• Toyota Tarago ACR50R 2.4L, 03/2006 to 06/2012

Application and Buying Notes

Before ordering, confirm the compressor on the vehicle matches the supplied identifiers: Denso 6SEU16C, part number CXD6341, direct mount, pad fitting, and 7 groove pulley. Those details are the most practical checks when comparing the existing unit with the replacement.

The listed fitment points to Toyota Estima 2.4L from 02/2000 to 01/2006 and Toyota Tarago ACR50R 2.4L from 03/2006 to 06/2012, but vehicle confirmation should still be done by build date, model code, and the compressor fitted to the car. A compressor can look similar externally while differing in mounting, clutch arrangement, or pulley section.

Oil specification matters with air conditioning compressors. This unit is noted with PAG 46 and an oil capacity of 145ml, so the system should be checked and prepared appropriately before installation. If the existing system has suffered a compressor failure, correct flushing, contamination control, and matching service parts are important steps to consider.

The one year warranty applies to the compressor as supplied, but installation quality and correct system preparation remain critical. Check that the electrical supply is 12V, the mounting arrangement is direct mount, and the pulley is 7 groove before fitting. If any of those details do not match, the part should not be assumed to suit without further verification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6341 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 110mm, Fitting Type Pad, Series 6SEU16C, Voltage 12, Oil Capacity 145ml, Weight 6.6kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD6341, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 6SEU16C, Body Number 447260-114_, Compressor Mounting Direct Mount, Pulley Section 7 Groove, Suits Unit Make Denso, Note Oil Type Pag 46, Dust Cover Y/N No.

Denso Air Conditioning Compressor 12V Direct Mount 6SEU16C. Part number CXD6341 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6341, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching the part number CXD6341, Denso 6SEU16C series, 12V direct mount layout, pad fitting, and the vehicle application details before purchase or installation.

FAQ

What is the part number for this compressor?

The listed part number is CXD6341. For this listing, part number CXD6341 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA TARAGO, TOYOTA TARAGO 2006, TOYOTA TARAGO 2007. These details should still be checked against the original unit before ordering.

What vehicles are listed for this compressor?

The supplied application details are Toyota Estima 2.4L from 02/2000 to 01/2006 and Toyota Tarago ACR50R 2.4L from 03/2006 to 06/2012. For this listing, part number CXD6341 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA TARAGO, TOYOTA TARAGO 2006, TOYOTA TARAGO 2007. These details should still be checked against the original unit before ordering.

What are the key mounting details?

It is a direct mount compressor with a pad fitting type and a 7 groove pulley section. For this listing, part number CXD6341 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA TARAGO, TOYOTA TARAGO 2006, TOYOTA TARAGO 2007. These details should still be checked against the original unit before ordering.

What voltage is this compressor?

The compressor is listed as 12V. For this listing, part number CXD6341 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA TARAGO, TOYOTA TARAGO 2006, TOYOTA TARAGO 2007. These details should still be checked against the original unit before ordering.

What oil type is specified?

The note specifies PAG 46 oil, with an oil capacity of 145ml. For this listing, part number CXD6341 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA TARAGO, TOYOTA TARAGO 2006, TOYOTA TARAGO 2007. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The listed warranty is one year. For this listing, part number CXD6341 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA TARAGO, TOYOTA TARAGO 2006, TOYOTA TARAGO 2007. These details should still be checked against the original unit before ordering.
