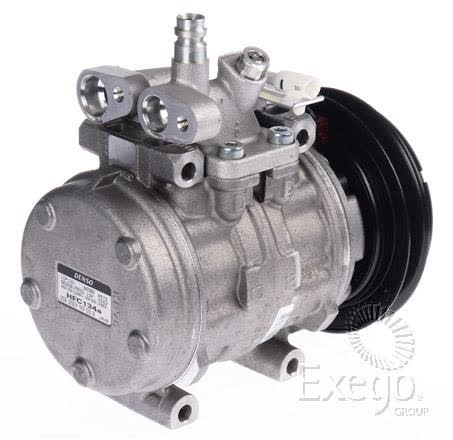

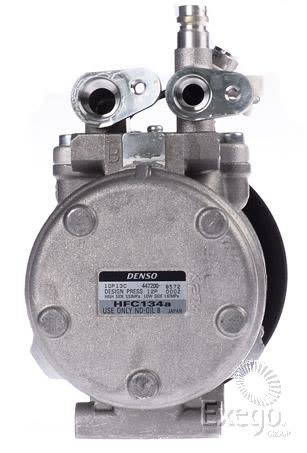

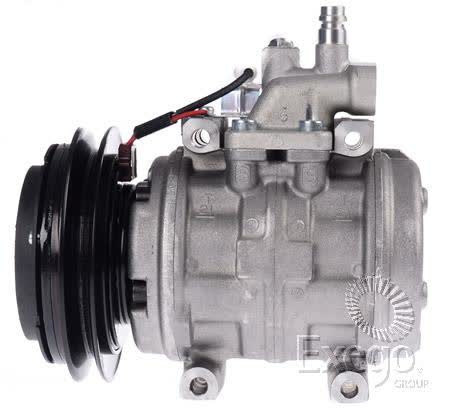

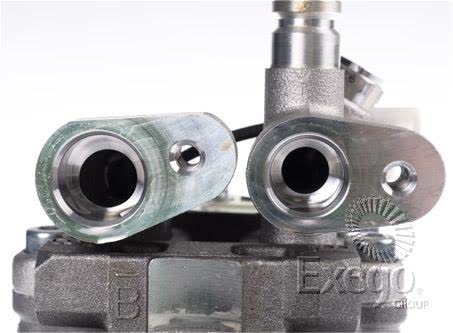

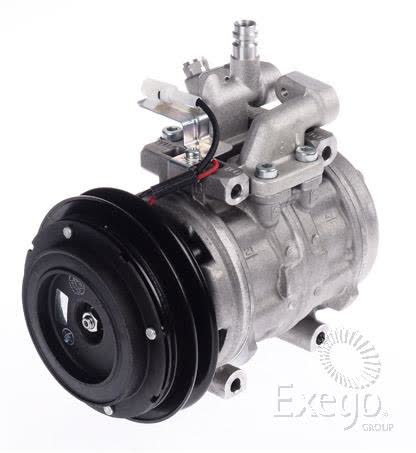

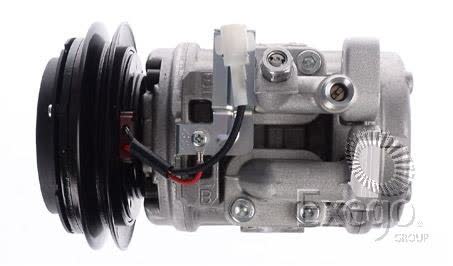

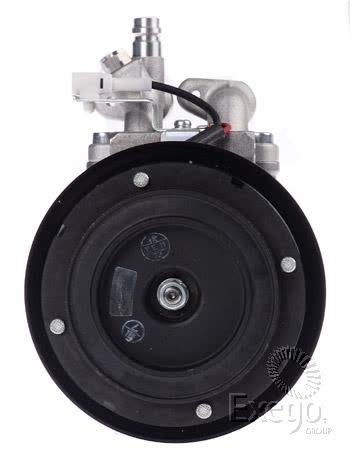

Denso Air Conditioning Compressor 24V Direct Mount 10P13C Part No. CXD6343

The Denso air conditioning compressor listed here is a 24V direct mount unit in the 10P13C series, identified by part number CXD6343 and body number 447200-857_. It is supplied r conditioning compressor for vehicle climate control applications where the original compressor specification matches the listed details.

Key physical identifiers include a 137mm clutch diameter, pad fitting type, A pulley section, and a weight of 6.78kg. The compressor uses PAG46 oil, has an oil capacity of 100ml, and does not include a dust cover. These details are important when checking against the existing unit before ordering.

The supplied fitment note lists Hino 500 FC 6.6L from 01/1996 to 01/2003. For older commercial vehicles, matching the compressor type, mounting style, voltage, clutch size, and part numbers is usually just as important as the vehicle model itself, especially where air conditioning systems have been revised over time.

Key Features

• Denso air conditioning compressor
• 24V electrical system
• Direct mount compressor style
• 10P13C series
• Pad fitting type
• 137mm clutch diameter

Specifications

• Brand: Denso
• Product type: Air conditioning compressor
• Compressor mounting: Direct mount
• Voltage: 24
• Series: 10P13C
• Clutch diameter: 137mm
• Pulley section: A
• Fitting type: Pad

Verified fitment guidance

• Hino 500 FC 6.6L
• 01/1996 to 01/2003

Application and Buying Notes

Before ordering, compare the part number CXD6343, the body number 447200-857_, and the 10P13C series against the compressor currently fitted to the vehicle. The listed 24V voltage and direct mount design need to match the existing system, because compressors with similar appearances can still differ in mounting, clutch size, or pulley arrangement.

The clutch diameter is 137mm and the fitting type is pad, so those measurements should be checked carefully against the removed unit or service information. If the vehicle originally used a different compressor family or a different clutch specification, the unit may not interchange even if it is from the same general Hino range.

Oil specification matters as well. This compressor is noted for PAG46 oil with an oil capacity of 100ml, so it should only be used where that oil type and capacity are appropriate for the system being serviced. Incorrect oil selection can create service issues, so it is worth confirming the requirements before installation.

The weight is listed at 6.78kg, and the unit does not include a dust cover. If the old compressor has damaged mounting points, a different pulley section, or a different clutch arrangement, those details need to be resolved before the compressor is fitted. The replacement clutch reference is 447300-482_ if clutch-related parts are being checked alongside the compressor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6343 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 137mm, Fitting Type Pad, Replacement Clutch 447300-482_, Suits Unit Make Denso, Note Oil Type Pag46, Dust Cover Y/N No.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXD6343, Brand DENSO, Description Denso Air Conditioning Compressor 24V Direct Mount 10P13C, Body Number 447200-857_, Compressor Mounting Direct Mount, Pulley Section A, Series 10P13C, Voltage 24, Oil Capacity 100ml.

Denso Air Conditioning Compressor 24V Direct Mount 10P13C. Part number CXD6343 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6343, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the vehicle application, part number CXD6343, body number 447200-857_, 24V voltage, 10P13C series, 137mm clutch diameter, and pad mounting details before purchase.

FAQ

What vehicle application is listed for this compressor?

The listed application is Hino 500 FC 6.6L from 01/1996 to 01/2003. For this listing, part number CXD6343 is the main reference point. Listed voltage is 24. Published fitment references include HINO 500 SERIES, HINO 500 SERIES 1995, HINO 500 SERIES 1996. These details should still be checked against the original unit before ordering.

What is the part number for this compressor?

The part number listed is CXD6343. For this listing, part number CXD6343 is the main reference point. Listed voltage is 24. Published fitment references include HINO 500 SERIES, HINO 500 SERIES 1995, HINO 500 SERIES 1996. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is a 24V air conditioning compressor. For this listing, part number CXD6343 is the main reference point. Listed voltage is 24. Published fitment references include HINO 500 SERIES, HINO 500 SERIES 1995, HINO 500 SERIES 1996. These details should still be checked against the original unit before ordering.

What clutch diameter is specified?

The clutch diameter listed is 137mm. For this listing, part number CXD6343 is the main reference point. Listed voltage is 24. Published fitment references include HINO 500 SERIES, HINO 500 SERIES 1995, HINO 500 SERIES 1996. These details should still be checked against the original unit before ordering.

What oil type is noted for this compressor?

The note lists PAG46 oil, with an oil capacity of 100ml. For this listing, part number CXD6343 is the main reference point. Listed voltage is 24. Published fitment references include HINO 500 SERIES, HINO 500 SERIES 1995, HINO 500 SERIES 1996. These details should still be checked against the original unit before ordering.

Does this compressor include a dust cover?

No. The listing states dust cover: No. For this listing, part number CXD6343 is the main reference point. Listed voltage is 24. Published fitment references include HINO 500 SERIES, HINO 500 SERIES 1995, HINO 500 SERIES 1996. These details should still be checked against the original unit before ordering.
