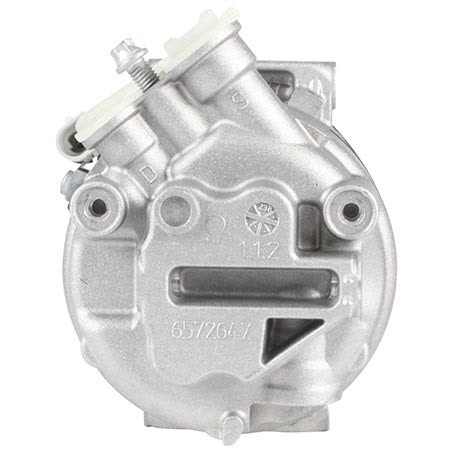

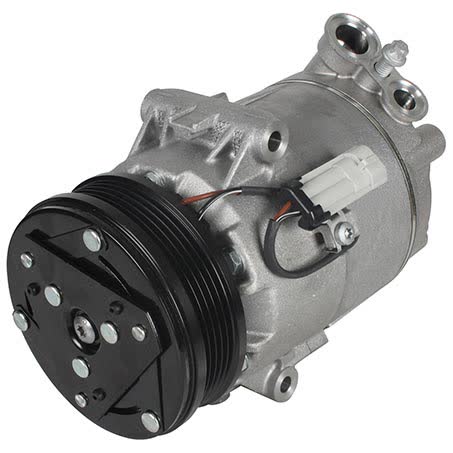

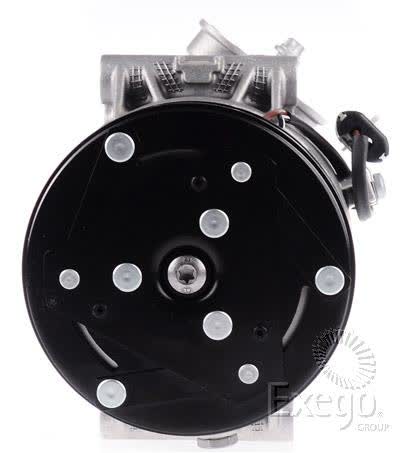

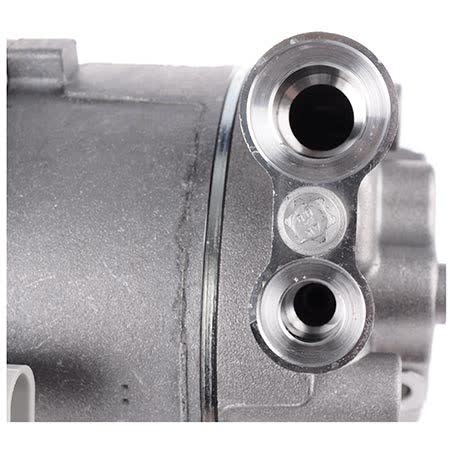

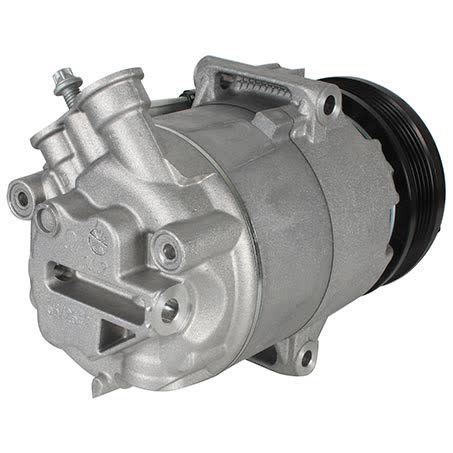

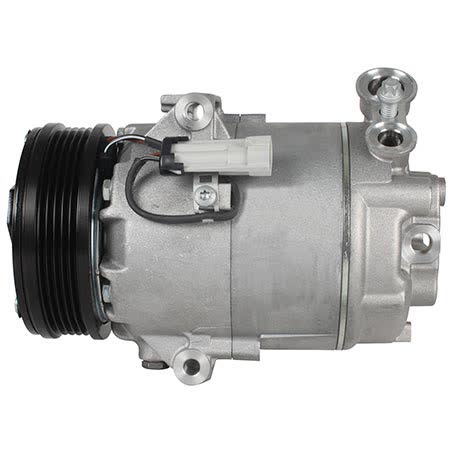

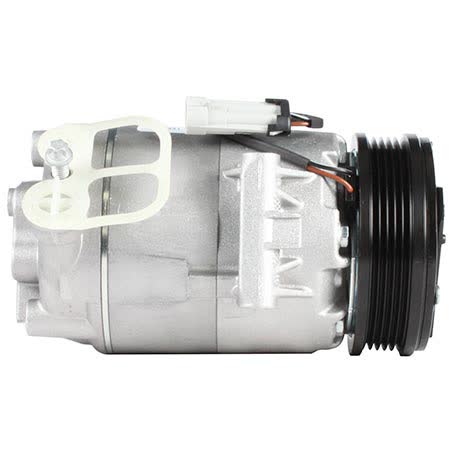

Delphi Air Conditioning Compressor 12V Direct Mount CVC125 - V5 CXG4749

The Delphi Air Conditioning Compressor 12V Direct Mount CVC125 - V5 is a pad-fit, 5 groove unit supplied under part number CXG4749 and original equipment number 13124749. It is listed as a direct mount compressor with a 110mm clutch diameter, 150ml oil capacity, and 12V electrical specification.

This compressor is specified for Holden Astra AH applications with the Z18XE 1.8L engine from 09/2004 to 03/2007, and the Z20LER 2.0L engine from 05/2006 to 06/2009. The supplied application note also states suitability up to VIN 75086479.

It is a Delphi branded air conditioning compressor in the CVC125 series, sold as each, with a one year warranty. The listed oil type is PAG46, and the unit weight is 5.54kg, which may be useful when checking handling, freight, or comparing against the removed unit.

Key Features

• Delphi CVC125 series compressor
• 12V direct mount design
• Pad fitting type
• 5 groove pulley section
• 110mm clutch diameter
• Oil type: PAG46

Specifications

• Brand: Delphi
• Product type: Air conditioning compressor
• Part No.: CXG4749
• Original Equipment Number: 13124749
• Voltage: 12
• Compressor mounting: Direct Mount
• Fitting type: Pad
• Pulley section: 5 Groove

Confirmed application

• Holden Astra AH Z18XE 1.8L — 09/2004 to 03/2007
• Holden Astra AH Z20LER 2.0L — 05/2006 to 06/2009
• Application stated up to VIN 75086479

Application and Buying Notes

Before ordering, compare the part number CXG4749 and original equipment number 13124749 against the removed compressor or the vehicle parts record. That is the cleanest way to reduce the chance of receiving the wrong unit, especially where the vehicle has a build date or engine change within the Astra AH range.

The listed fitment covers two Holden Astra AH engine variants: Z18XE 1.8L from 09/2004 to 03/2007, and Z20LER 2.0L from 05/2006 to 06/2009. The note up to VIN 75086479 is important, because VIN cut-off points can separate similar-looking vehicles with different air conditioning hardware.

This compressor is a direct mount, pad-fit unit with a 5 groove pulley and 110mm clutch diameter. Those details matter when comparing the mounting face, belt drive, and clutch arrangement on the existing vehicle, because an air conditioning compressor can look similar while still being incompatible in the bracket or drive layout.

At 5.54kg, this is a substantial component rather than a small service item. If you are arranging freight or picking up in person, the weight and the direct mount format are useful reference points when comparing with the old unit and confirming you have the correct replacement ready for fitting.

The unit is supplied with a one year warranty, but warranty cover does not replace the need to verify compatibility before installation. Confirm the engine code, build date, VIN, pulley section, and mounting style before handing the vehicle over for repair.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXG4749 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 13124749, Series CVC125, Voltage 12, Oil Capacity 150ml, Weight 5.54kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXG4749, Brand DELPHI, Description Delphi Air Conditioning Compressor 12V Direct Mount CVC125 - V5, Clutch Diameter 110mm, Fitting Type Pad, Pulley Section 5 Groove, Suits Unit Make Delphi, Note Oil Type Pag46, Dust Cover Y/N No.

Delphi Air Conditioning Compressor 12V Direct Mount CVC125 - V5. Part number CXG4749 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 5 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXG4749, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN ASTRA, HOLDEN ASTRA 2005, HOLDEN ASTRA 2006, HOLDEN ASTRA 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number CXG4749, OE number 13124749, the vehicle VIN, and the listed Astra AH engine and date ranges before purchase or installation.

FAQ

What vehicles is this compressor listed for?

It is listed for Holden Astra AH vehicles with the Z18XE 1.8L engine from 09/2004 to 03/2007, and the Z20LER 2.0L engine from 05/2006 to 06/2009, with application stated up to VIN 75086479.

What part numbers should I check against my old compressor?

Check Delphi part number CXG4749 and original equipment number 13124749. Matching those identifiers is one of the most reliable ways to confirm you are looking at the correct compressor.

What mounting and drive details are supplied?

The compressor is listed as a direct mount unit with a pad fitting type, 5 groove pulley section, and a 110mm clutch diameter.

What oil specification is listed?

The listed oil type is PAG46, and the oil capacity is 150ml.

Does this compressor come with a warranty?

Yes. The listed warranty is one year.

Is the dust cover included?

No. The specification states dust cover: No.
