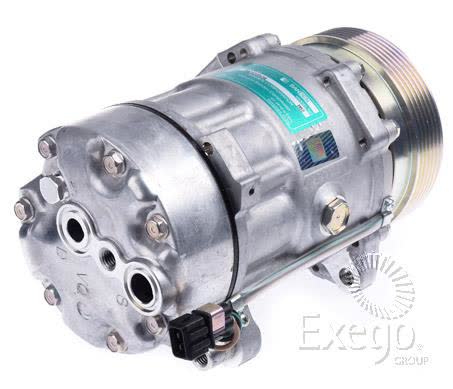

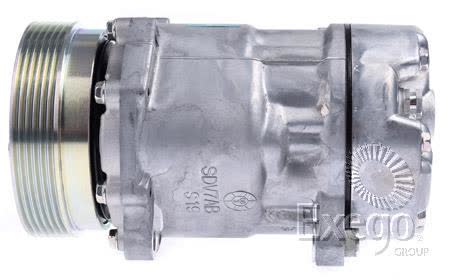

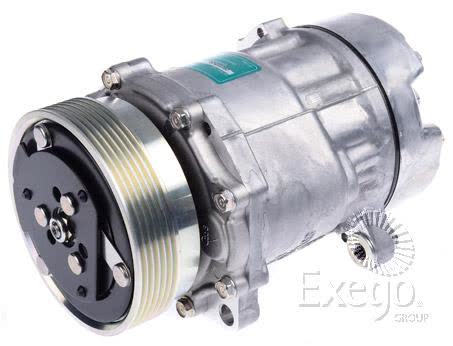

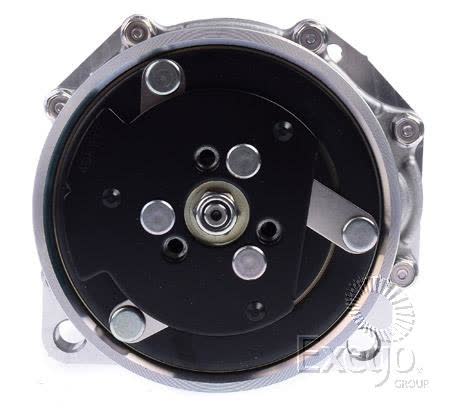

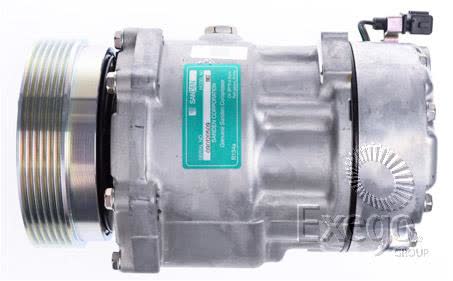

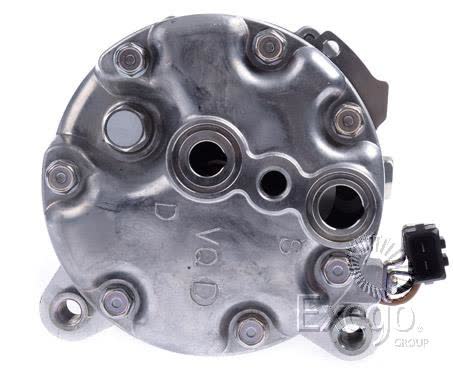

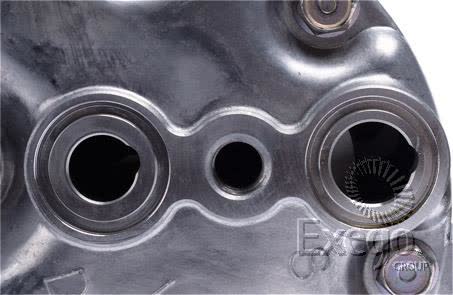

Sanden Air Conditioning Compressor 12V Ear Mount SD7V16 CXS1162

The Sanden SD7V16 air conditioning compressor is a 12V ear mount unit supplied as part number CXS1162. It is listed with a 120mm clutch diameter, 6 groove pulley section, horizontal special pad fitting type, and VQD head code, which are the key details to check when matching a replacement compressor to the vehicle.

This compressor is specified with oil type SP 10 and an oil capacity of 135ml. The unit weight is 7.5kg, there is no dust cover, and the gauge line is 54.5mm. Those measurements and mounting details matter when you are confirming physical fitment in the vehicle and comparing against the unit you are removing.

Listed applications include Seat Cordoba 6K 2E 2.0L from 01/1995 to 12/1995, Volkswagen Golf MK3 1H 2.8L from 01/1994 to 12/1998, Volkswagen Golf MK3 1H 2.0L from 01/1994 to 12/1998, and Volkswagen Golf MK4 1E 1.8L from 01/1998 to 12/1999. The compressor is branded Sanden and carries original equipment number 1162.

Key Features

• 12V Sanden air conditioning compressor
• SD7V16 series
• Ear mount compressor mounting
• Part number CXS1162
• Original equipment number 1162
• 120mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Voltage: 12V
• Series: SD7V16
• Compressor mounting: Ear mount
• Clutch diameter: 120mm
• Pulley section: 6 groove
• Fitting type: Horizontal special pad

Verified fitment applications

• Seat Cordoba 6K 2E 2.0L — 01/1995 to 12/1995
• Volkswagen Golf MK3 1H 2.8L — 01/1994 to 12/1998
• Volkswagen Golf MK3 1H 2.0L — 01/1994 to 12/1998
• Volkswagen Golf MK4 1E 1.8L — 01/1998 to 12/1999

Application and Buying Notes

Before ordering, match the part number CXS1162 and check the compressor against the unit in the vehicle. The key physical identifiers here are the ear mount layout, 120mm clutch diameter, 6 groove pulley, horizontal special pad fitting type, and 54.5mm gauge line, as those details need to line up with the existing installation.

The listed applications are limited to specific Seat and Volkswagen models and engine codes, including Seat Cordoba 6K 2E 2.0L, Golf MK3 1H 2.8L, Golf MK3 1H 2.0L, and Golf MK4 1E 1.8L within the date ranges shown. Even where the model name appears similar, always confirm the exact vehicle details, mounting arrangement, and existing compressor identification before purchase.

A compressor is a matched component in the air conditioning system, so it is worth checking the clutch diameter, pulley groove count, head code, and mounting style together rather than relying on the vehicle badge alone. These details are more reliable than a broad model reference when you are assessing compatibility.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS1162 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Three Years, Compressor Mounting Ear Mount, Original Equipment Number 1162, Series SD7V16, Voltage 12, Gauge Line 54.5mm, Dust Cover Y/N No, Weight 7.5kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS1162, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7V16, Clutch Diameter 120mm, Fitting Type Horizontal Special Pad, Pulley Section 6 Groove, Suits Unit Make Sanden, Note Oil Type SP 10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 12V Ear Mount SD7V16. Part number CXS1162 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS1162, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 1998, AUDI A3 1999, AUDI A3 2000, SEAT CORDOBA, SEAT CORDOBA 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXS1162, the SD7V16 series details, and the listed application data before ordering. Do not rely on vehicle model alone, as mounting style, pulley section, clutch diameter, and engine application must all match.

FAQ

What is the part number for this compressor?

The listed part number is CXS1162. For this listing, part number CXS1162 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1998, AUDI A3 1999. These details should still be checked against the original unit before ordering.

What voltage is this Sanden compressor?

It is a 12V compressor. For this listing, part number CXS1162 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1998, AUDI A3 1999. These details should still be checked against the original unit before ordering.

Which compressor series is it?

It is in the SD7V16 series. For this listing, part number CXS1162 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1998, AUDI A3 1999. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It uses an ear mount compressor mounting style. For this listing, part number CXS1162 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1998, AUDI A3 1999. These details should still be checked against the original unit before ordering.

What oil specification is listed?

The listed oil type is SP 10, with an oil capacity of 135ml. For this listing, part number CXS1162 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1998, AUDI A3 1999. These details should still be checked against the original unit before ordering.

Which vehicles are listed as fitment applications?

The listed applications are Seat Cordoba 6K 2E 2.0L from 01/1995 to 12/1995, Volkswagen Golf MK3 1H 2.8L from 01/1994 to 12/1998, Volkswagen Golf MK3 1H 2.0L from 01/1994 to 12/1998, and Volkswagen Golf MK4 1E 1.8L from 01/1998 to 12/1999.
