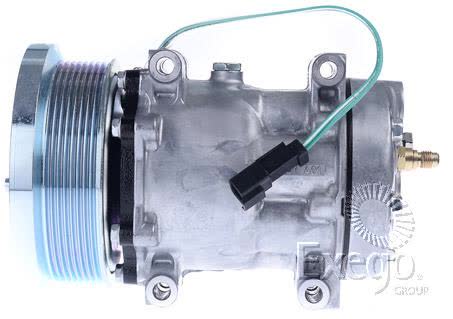

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXS4301

This Sanden air conditioning compressor is a 24V direct mount unit from the SD7H15 series, identified by part number CXS4301. It is listed with a GM horizontal pad fitting type, an 8 groove pulley section, and a 133mm clutch diameter, so the mounting and drive layout need to match the vehicle application before purchase.

The compressor is specified with a 300ml oil capacity, GK head code, and SHD sealed heavy duty clutch note. It is supplied as a single each unit, weighs 9kg, and carries a one year warranty. The listed oil type is SP15, with O ring to suit ORX017 x 2.

Key Features

• 24V Sanden air conditioning compressor
• Direct mount configuration
• SD7H15 series
• 8 groove pulley section
• 133mm clutch diameter
• GM horizontal pad fitting type

Specifications

• Brand: Sanden
• Part number: CXS4301
• Product type: Air conditioning compressor
• Voltage: 24V
• Compressor mounting: Direct mount
• Fitting type: GM horizontal pad
• Pulley section: 8 groove
• Clutch diameter: 133mm

Confirmed application guidance

• Caterpillar Dump Truck 773, 775F/G, 777F/G, 789D/F, 797B/F from 01/2011 onward
• Caterpillar Excavator 325D and 385B 3456 from 01/1990 onward
• Caterpillar Grader 12H, 12K, 12M, 140M from 01/2001 onward

Application and Buying Notes

Before ordering, match the part number CXS4301 and confirm the compressor layout against the vehicle’s existing unit. The key physical points here are 24V operation, direct mount fitment, GM horizontal pad mounting, and an 8 groove pulley section. If any of those details differ from the machine already fitted, the compressor should not be assumed compatible.

The supported Caterpillar applications are broad, but they are still specific. The listing names dump truck, excavator, and grader models, with year or model range references alongside them. That means the safest approach is to confirm the machine model, build period, mounting style, pulley groove count, and the existing compressor part number before fitting. If you are unsure, compare the old unit directly or check the machine’s parts record rather than relying on appearance alone.

This compressor is supplied as a single each unit and carries a one year warranty. Weight is listed at 9kg, which may be useful when confirming freight handling or when comparing against the removed component. As with any climate control component, correct identification before installation is the most reliable way to avoid repeat labour and refrigerant system delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4301 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2 Oil Type SP15 , SHD ( Sealed Heavey Duty Clutch ), Dust Cover Y/N No, Weight 9kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS4301, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 133mm, Fitting Type GM Horizontal Pad, Series SD7H15, Voltage 24, Oil Capacity 300ml, Head Code GK Head.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXS4301 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4301, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 120H, CATERPILLAR 120H 2007, CATERPILLAR 12H, CATERPILLAR 12H 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXS4301, the 24V direct mount specification, GM horizontal pad fitting, 8 groove pulley, and the listed Caterpillar application details before purchase.
