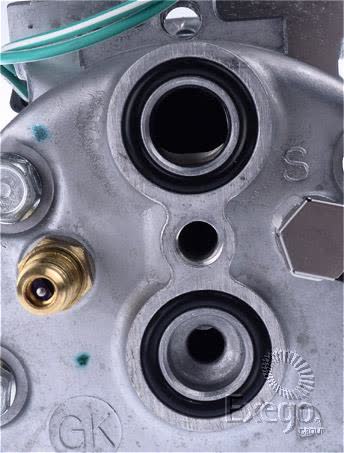

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXS4302

The Sanden SD7H15 air conditioning compressor is a 24V direct mount unit with a GM horizontal pad fitting type, 8 groove pulley section, and 152mm clutch diameter. It is listed under part number CXS4302 and is supplied as a single each unit for vehicle climate control applications.

This compressor is identified with a GK head code, 300ml oil capacity, dust cover fitted, and a gauge line measurement of 61.64mm. The note specifies O ring ORX017 x 2 and oil type SP15, with SHD clutch detail noted as sealed heavy duty clutch.

Application details include Caterpillar dozer, grader, and loader coverage, with listed use for Caterpillar Dozer D8, D9, D11T from 01/2005 onward, Grader 14M / 16M from 01/1994 onward, and Loader 990 / 994H from 01/1990 onward. The broader fitment data also references additional Caterpillar model families and selected Terex O&K TA400 applications, so checking the exact machine build remains important before ordering.

Key Features

• Sanden SD7H15 series compressor
• 24V unit
• Direct mount compressor
• 8 groove pulley section
• 152mm clutch diameter
• GM horizontal pad fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 24V
• Compressor mounting: Direct mount
• Fitting type: GM horizontal pad
• Pulley section: 8 groove
• Clutch diameter: 152mm

Verified fitment guidance

• Caterpillar Dozer D8 from 01/2005 onward
• Caterpillar Dozer D9 from 01/2005 onward
• Caterpillar Dozer D11T from 01/2005 onward
• Caterpillar Grader 14M from 01/1994 onward
• Caterpillar Grader 16M from 01/1994 onward
• Caterpillar Loader 990 from 01/1990 onward
• Caterpillar Loader 994H from 01/1990 onward
• Fitment data also references additional Caterpillar models including 621G, 631G, 637G, 793D, 844H, 924H, 924HZ, 928HZ, 930, 930B, 930H, 930K, 930M, 938H, 938M, 963, 963C, 963D, 963DWH, 990H, 994H, CP56, CS63, D5N, D5NLGP, D5NXL, D6T, D6TTT, D7E, D7EWH, D8T, D9T, IT38H, and Terex O&K TA400

Application and Buying Notes

Before ordering, compare the part number CXS4302, the Sanden SD7H15 series, and the mounting style against the compressor currently fitted to the machine. The listed specification is a 24V direct mount unit with a GM horizontal pad fitting type and 8 groove pulley section, so those points need to match the application and the bracket or drive arrangement on the machine.

This compressor is described for specific Caterpillar machines, including D8, D9, and D11T dozers from 01/2005 onward, 14M and 16M graders from 01/1994 onward, and 990 / 994H loaders from 01/1990 onward. The broader fitment list includes more Caterpillar models and Terex O&K TA400 applications, but exact build details still matter because machine series can vary by year, arrangement, and previous repairs.

At 10.4kg, this is a substantial component and care is needed when comparing the old unit to the replacement. Check the clutch diameter of 152mm, the gauge line measurement of 61.64mm, and the pulley section count before purchasing, as these are practical compatibility checks that can prevent ordering the wrong compressor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4302 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2 Oil Type SP15 , SHD ( Sealed Heavey Duty Clutch), Oil Capacity 300ml, Head Code GK Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4302, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 152mm, Fitting Type GM Horizontal Pad, Series SD7H15, Voltage 24, Gauge Line 61.64mm, Dust Cover Y/N Yes.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXS4302 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4302, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 14M, CATERPILLAR 14M 2001, CATERPILLAR 16M, CATERPILLAR 16M 1994, TEREX O&K TA400, TEREX O&K TA400 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the part number CXS4302, the Sanden SD7H15 series, and the machine application details before buying. Match the 24V direct mount layout, GM horizontal pad fitting type, 8 groove pulley section, and listed Caterpillar or Terex O&K application data against the existing unit.

FAQ

What is the part number for this compressor?

The listed part number is CXS4302.

What voltage does this compressor use?

It is listed as a 24V compressor.

What mounting style is specified?

The compressor is listed as a direct mount unit with a GM horizontal pad fitting type.

Which pulley section is listed?

The pulley section is listed as 8 groove.

What oil information is provided?

The listed oil capacity is 300ml, with oil type SP15 noted.

What machines are specifically listed in the fitment details?

The listed applications include Caterpillar Dozer D8, D9, and D11T from 01/2005 onward, Caterpillar Grader 14M and 16M from 01/1994 onward, and Caterpillar Loader 990 and 994H from 01/1990 onward. Additional Caterpillar and Terex O&K models are also referenced in the fitment data.
