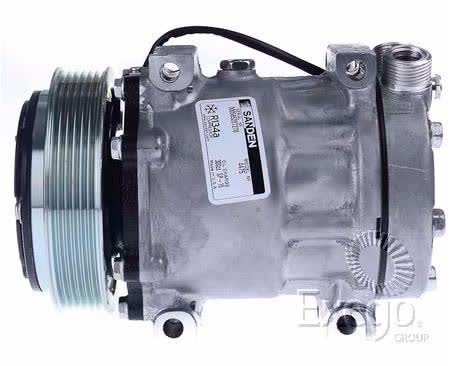

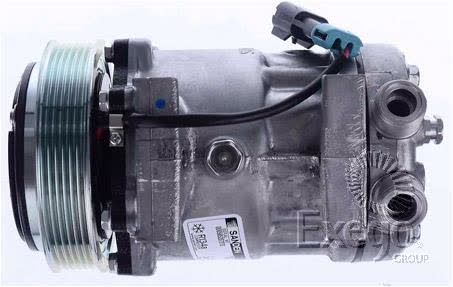

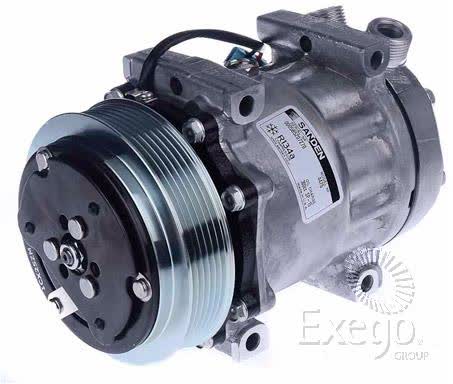

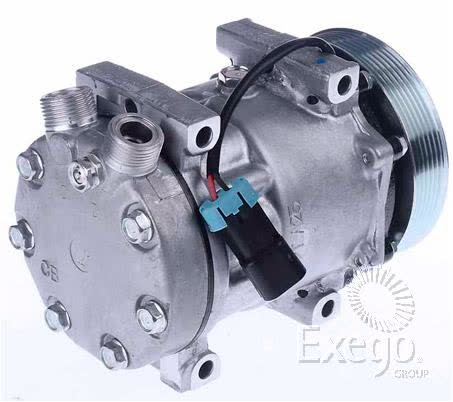

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS4475

This Sanden air conditioning compressor is a 12V direct mount unit in the SD7H15 series, identified by part number CXS4475. It is listed with a 6 groove pulley, 125mm clutch diameter and vertical tube O ring fitting type, which are the key details to confirm before ordering for a truck air conditioning repair.

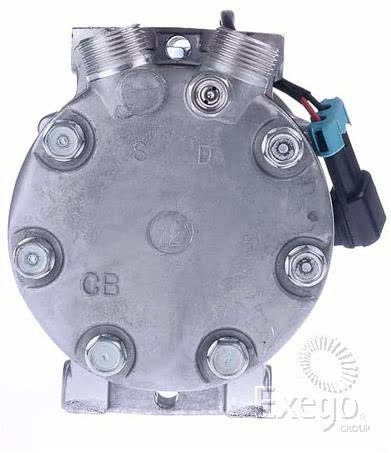

The compressor is specified with a CB head, oil capacity of 300ml and oil type SP15. It is supplied as an AC component in the cooling group, weighs 7.56kg, and does not have a dust cover. These details matter when comparing replacement compressors, especially where the original unit uses a direct mount layout and matching pulley and hose connection style.

Verified application details include Freightliner Century Class C120 60 Series 14.0L from 01/2000 onwards, Freightliner FL 80 with ISC 8.3L from 01/1994 to 12/1998, and Freightliner FL112 with 10.8L from 01/1997 to 01/2007. There is also broader fitment information for Freightliner and International 9000-series applications, but the part number and physical specifications should still be checked against the vehicle before purchase.

Key Features

• Sanden SD7H15 series compressor
• 12V direct mount configuration
• Part number CXS4475
• 6 groove pulley

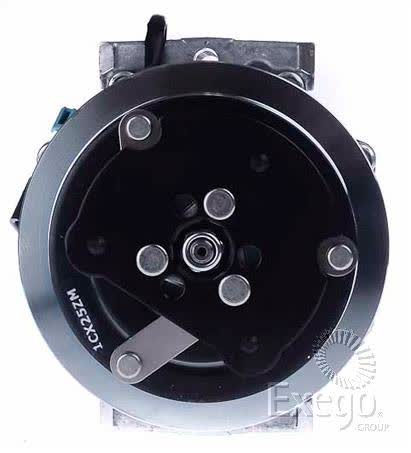

• 125mm clutch diameter

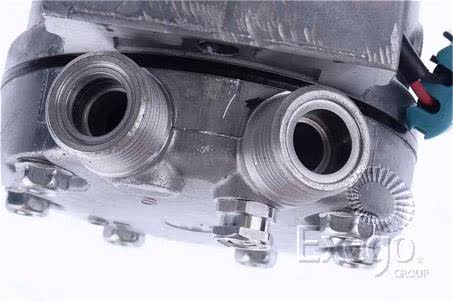

• Vertical tube O ring fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Direct mount
• Pulley section: 6 groove
• Clutch diameter: 125mm
• Fitting type: Vertical tube O ring

Verified fitment information

• Freightliner Century Class C120 60 Series 14.0L: 01/2000 onwards
• Freightliner FL 80 ISC 8.3L: 01/1994 to 12/1998
• Freightliner FL112 10.8L: 01/1997 to 01/2007
• Additional fitment data references Freightliner and International 9000-series applications
• Use the part number CXS4475 and the listed mounting, pulley and fitting details to confirm the correct replacement

Application and Buying Notes

Before ordering, compare the old compressor to the listed specifications: CXS4475, Sanden SD7H15, 12V, direct mount, 6 groove pulley and vertical tube O ring fitting. These details are the most practical checks when replacing an air conditioning compressor, because a visual match alone is not always enough.

The oil information is also important. This unit is noted with 300ml oil capacity and SP15 oil type, so the replacement should be handled with the correct lubricant and charging procedure for the vehicle system. The compressor is listed with a CB head and a 125mm clutch diameter, which should also be checked against the existing setup.

The vehicle application details cover specific Freightliner models and engine ranges, including Century Class C120 60 Series 14.0L from 01/2000 onwards, FL 80 ISC 8.3L from 01/1994 to 12/1998, and FL112 10.8L from 01/1997 to 01/2007. If your truck falls outside those ranges, do not assume fitment from the series name alone; confirm the part number and physical configuration first.

As with any compressor replacement, it is sensible to verify the hose connection style, pulley groove count, clutch size and mounting arrangement before installation. The listed weight of 7.56kg can also help when comparing a removed unit to the replacement carton or handling requirements during workshop fitment.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4475 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 6 Groove, Suits Unit Make Sanden, Note O Ring to suit ORX016 x 2 Oil Type SP15, Oil Capacity 300ml, Head Code CB Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4475, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 125mm, Fitting Type Vertical Tube O Ring, Series SD7H15, Voltage 12, Gauge Line 54.97mm, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS4475 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4475, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number CXS4475, the SD7H15 series, 12V direct mount layout, 6 groove pulley and the vertical tube O ring fitting before purchase. If the vehicle is not one of the verified applications listed here, check the existing compressor details carefully to avoid an incorrect match.

FAQ

What part number is this Sanden compressor?

The listed part number is CXS4475.

What voltage does this compressor use?

It is a 12V compressor.

What type of mounting does it have?

It is specified as a direct mount compressor.

Which pulley and clutch details are listed?

It has a 6 groove pulley and a 125mm clutch diameter.

What vehicles are specifically listed for fitment?

Verified applications include Freightliner Century Class C120 60 Series 14.0L from 01/2000 onwards, Freightliner FL 80 ISC 8.3L from 01/1994 to 12/1998, and Freightliner FL112 10.8L from 01/1997 to 01/2007.

What oil information is provided for this compressor?

The listed oil capacity is 300ml and the oil type is SP15.
