Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS4499

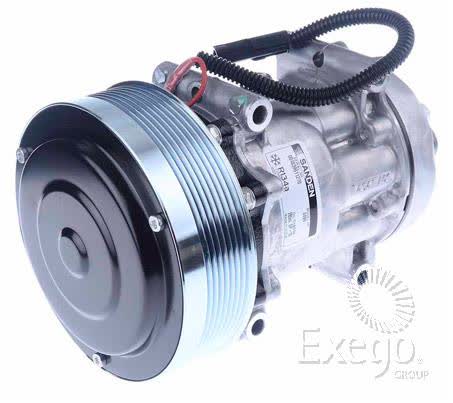

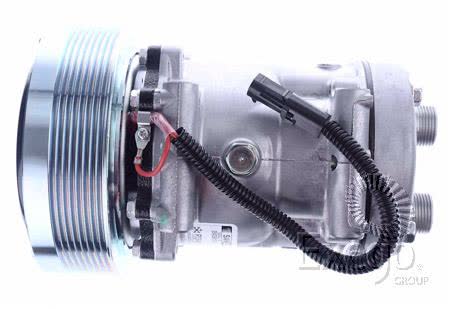

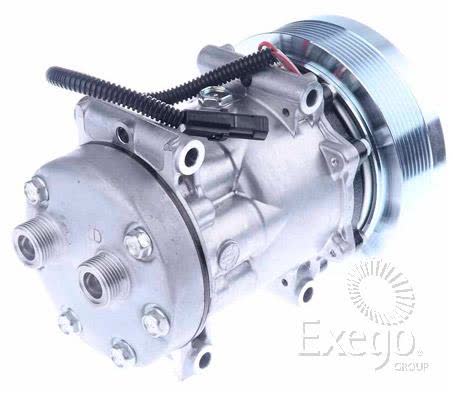

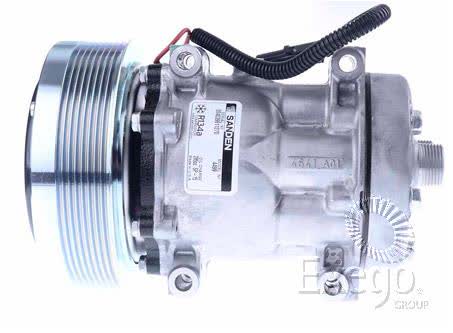

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit with an 8 groove pulley, 152mm clutch diameter and MD head code. It is listed under part number CXS4499 and is supplied as a single each unit.

Application information supplied with the unit includes Case IH Tractor C10 10.3L from 01/2004 onward, Tractor MX210 8.3L from 01/1980 onward, Tractor MX245 6CT 8.3L from 01/1980 onward, and New Holland Tractor TJ450 TJI ISX 14.9L from 01/2002 to 12/2005. Confirming the compressor style and part number before ordering is essential on agricultural air conditioning components.

Key Features

• Sanden SD7H15 series compressor
• 12V direct mount design
• 8 groove pulley

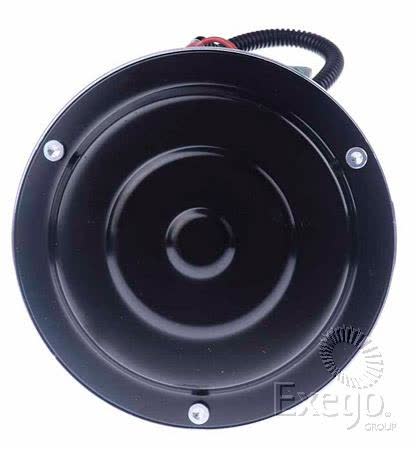

• 152mm clutch diameter

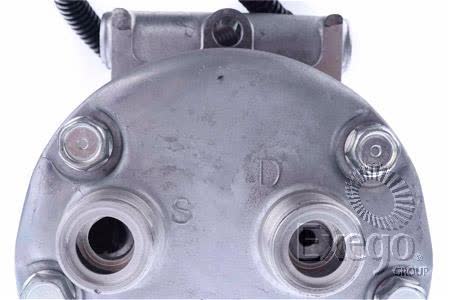

• Horizontal tube O-ring fitting
• Dust cover included

Specifications

• Part number: CXS4499
• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 12V
• Compressor mounting: Direct mount
• Oil capacity: 285ml
• Weight: 10.12kg

Verified application details

• Case IH Tractor C10 10.3L from 01/2004 onward
• Tractor MX210 8.3L from 01/1980 onward
• Tractor MX245 6CT 8.3L from 01/1980 onward
• New Holland Tractor TJ450 TJI ISX 14.9L from 01/2002 to 12/2005

Application and Buying Notes

When matching an A/C compressor, the important checks are the mounting style, pulley configuration, electrical system and hose connection type. This unit is a 12V Sanden SD7H15 with a direct mount pattern, 8 groove pulley and horizontal tube O-ring fitting, so those details need to align with the vehicle already in service.

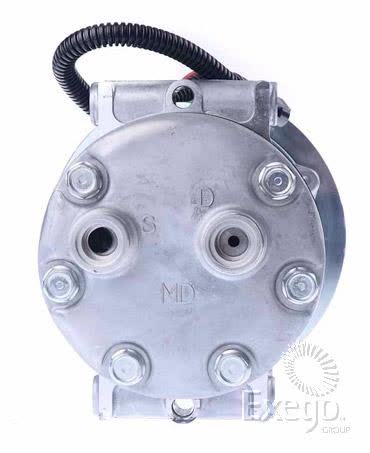

The listed part number is CXS4499, and that should be compared against the existing compressor or the parts record wherever possible. The compressor is supplied with a 152mm clutch diameter, MD head code and a stated oil capacity of 285ml, which are useful checks when comparing replacement units for agricultural machinery.

The application list provided covers specific Case IH and New Holland tractor references, including model and engine details. Even where a model name appears familiar, the safest approach is to match the compressor by part number, mounting style and hose arrangement rather than relying on model name alone, because agricultural fitment can vary within a model range.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4499 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX016 x 2 , Oil Type SP15 , Shaft seal CPX245, Oil Capacity 285ml, Head Code MD Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4499, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 152mm, Fitting Type Horizontal Tube O Ring, Series SD7H15, Voltage 12, Gauge Line 65.06mm, Dust Cover Y/N Yes.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS4499 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4499, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 1121F, CASE 1121F 2012, CASE 521D, CASE 521D 2002, CATERPILLAR 236B3, CATERPILLAR 236B3 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment with part number CXS4499, the SD7H15 series, 12V direct mount layout, 8 groove pulley and horizontal tube O-ring connection before ordering. If the existing compressor differs in mounting, pulley, head code or hose arrangement, check the application carefully with Micks Gone Bush or your installer.

FAQ

What is the part number for this Sanden compressor?

The listed part number is CXS4499. For this listing, part number CXS4499 is the main reference point. Listed voltage is 12. Published fitment references include CASE 1121F, CASE 1121F 2012, CASE 521D. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is a 12V compressor. For this listing, part number CXS4499 is the main reference point. Listed voltage is 12. Published fitment references include CASE 1121F, CASE 1121F 2012, CASE 521D. These details should still be checked against the original unit before ordering.

What type of mounting does it have?

It is a direct mount compressor. For this listing, part number CXS4499 is the main reference point. Listed voltage is 12. Published fitment references include CASE 1121F, CASE 1121F 2012, CASE 521D. These details should still be checked against the original unit before ordering.

What pulley configuration is listed?

The compressor has an 8 groove pulley. For this listing, part number CXS4499 is the main reference point. Listed voltage is 12. Published fitment references include CASE 1121F, CASE 1121F 2012, CASE 521D. These details should still be checked against the original unit before ordering.

What fitting type is specified?

It uses a horizontal tube O-ring fitting type. For this listing, part number CXS4499 is the main reference point. Listed voltage is 12. Published fitment references include CASE 1121F, CASE 1121F 2012, CASE 521D. These details should still be checked against the original unit before ordering.

Which applications are listed for this compressor?

Listed applications include Case IH Tractor C10 10.3L from 01/2004 onward, Tractor MX210 8.3L from 01/1980 onward, Tractor MX245 6CT 8.3L from 01/1980 onward, and New Holland Tractor TJ450 TJI ISX 14.9L from 01/2002 to 12/2005.
