Sanden Air Conditioning Compressor 12V Ear Mount SD7H15 CXS4617

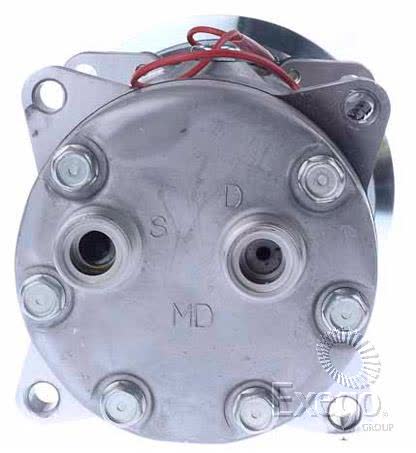

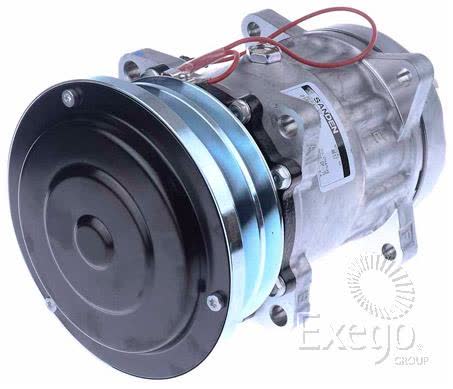

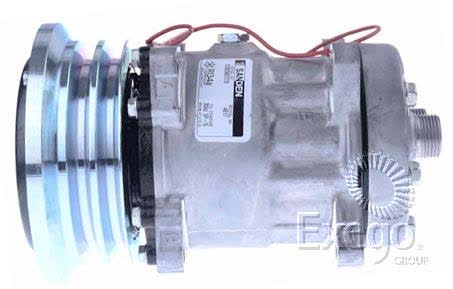

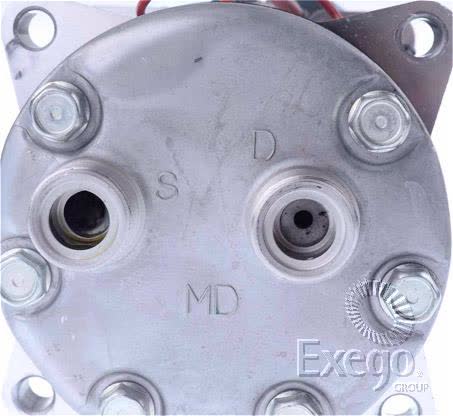

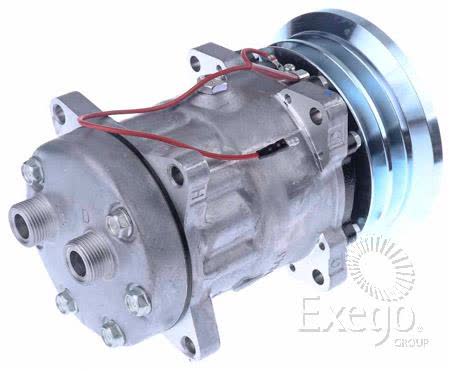

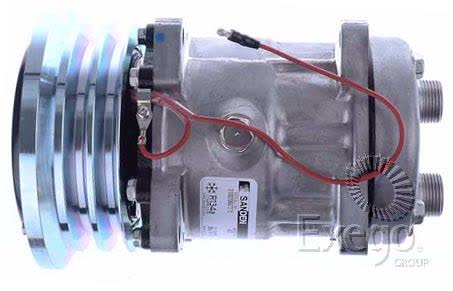

The Sanden SD7H15 air conditioning compressor is a 12V unit with ear mount fitting, horizontal tube O-ring connection and AA pulley section. It is listed with part number CXS4617 and uses an MD head code, which are the key identifiers to check against the unit you are replacing.

This compressor suits a range of heavy vehicle and equipment applications, including Freightliner Century Class C120 60 Series 14.0L from 01/2000 onward, Freightliner FL 80 ISC 8.3L from 01/1994 to 12/1998, and Freightliner FL112 10.8L from 01/1997 to 01/2007. It is also listed for New Holland Harvester 8060, 8080 and 8160 from 01/1979 onward, plus Tractor 8260, 8360 and 8560 from 01/1996 onward.

For identification and installation checking, the main service details are the 132mm clutch diameter, 8.76kg weight, no dust cover, and O rings to suit ORX016 x 2. The compressor is supplied as one unit and carries a one year warranty.

Key Features

• 12V Sanden air conditioning compressor
• SD7H15 series
• Ear mount compressor mounting
• AA pulley section
• Horizontal tube O-ring fitting type

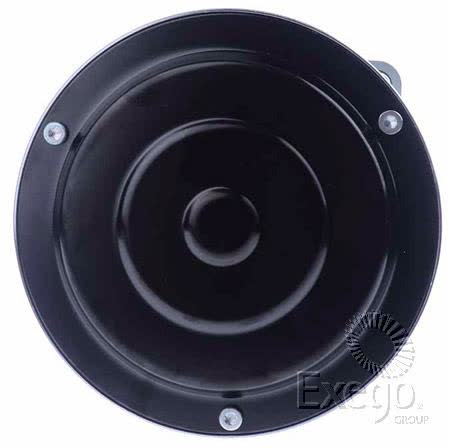

• 132mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 12
• Series: SD7H15
• Compressor mounting: Ear mount
• Fitting type: Horizontal tube O-ring
• Pulley section: AA

Verified application details

• Freightliner Century Class C120 60 Series 14.0L from 01/2000 onward
• Freightliner FL 80 ISC 8.3L from 01/1994 to 12/1998
• Freightliner FL112 10.8L from 01/1997 to 01/2007
• New Holland Harvester 8060, 8080 and 8160 from 01/1979 onward
• New Holland Tractor 8260, 8360 and 8560 from 01/1996 onward

Application and Buying Notes

When comparing this compressor to your existing unit, the most important checks are the part number CXS4617, the SD7H15 series, the 12V electrical setup and the ear mount style. The connection type is horizontal tube O-ring, so the hose and manifold arrangement needs to match before installation is attempted.

The pulley section is AA and the clutch diameter is 132mm, so those dimensions should be matched carefully if you are replacing a failed compressor. A compressor can look similar from the outside and still differ in mounting, pulley or head configuration, which can stop it from fitting correctly.

The listed applications include Freightliner truck models and New Holland agricultural equipment, but the safest approach is to confirm the exact vehicle or machine model, engine details and build date against the application list. In particular, the Freightliner Century Class C120 60 Series 14.0L application begins from 01/2000, while the FL 80 and FL112 applications cover earlier and later ranges as noted.

Keep in mind that this is an air conditioning compressor, not a complete system kit. The note for O rings to suit ORX016 x 2 indicates you may need the correct sealing components at installation, and the 8.76kg weight gives you a useful reference when handling or comparing the unit to a removed compressor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4617 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX016 x 2, Head Code MD Head, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXS4617, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15, Clutch Diameter 132mm, Fitting Type Horizontal Tube O Ring, Series SD7H15, Voltage 12, Dust Cover Y/N No, Weight 8.76kg, Product Group 1 COOLING.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15. Part number CXS4617 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4617, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD 555 C, FORD 8000-SERIES, FORD BUS, FORD CARGO, FREIGHTLINER CENTURY, FREIGHTLINER CENTURY 1999. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number CXS4617, the SD7H15 series, ear mount configuration, 12V specification, horizontal tube O-ring fitting and the listed application details before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS4617.

What voltage is this Sanden compressor?

It is a 12V air conditioning compressor.

What mounting style does it use?

It uses an ear mount compressor mounting style.

What type of fitting does it have?

The fitting type is horizontal tube O-ring.

Which applications are listed for this compressor?

Listed applications include Freightliner Century Class C120 60 Series 14.0L from 01/2000 onward, Freightliner FL 80 ISC 8.3L from 01/1994 to 12/1998, Freightliner FL112 10.8L from 01/1997 to 01/2007, New Holland Harvester 8060, 8080 and 8160 from 01/1979 onward, and New Holland Tractor 8260, 8360 and 8560 from 01/1996 onward.

Does it come with O rings?

The note states O rings to suit ORX016 x 2.
