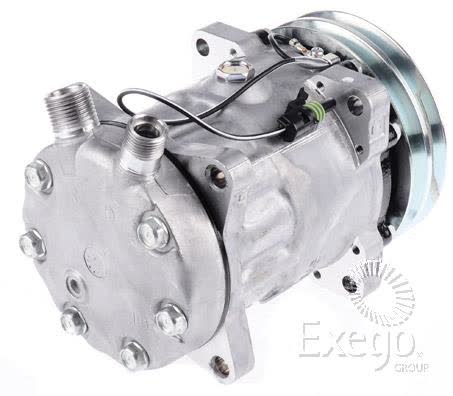

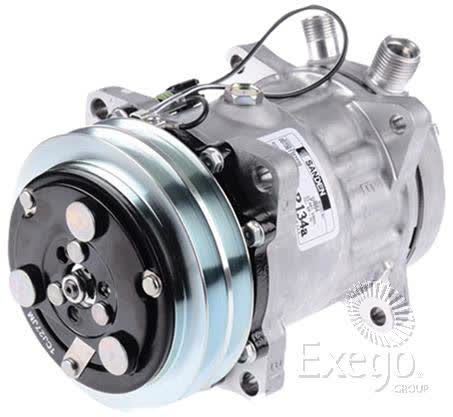

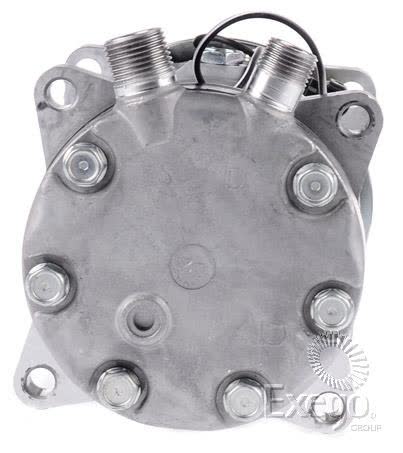

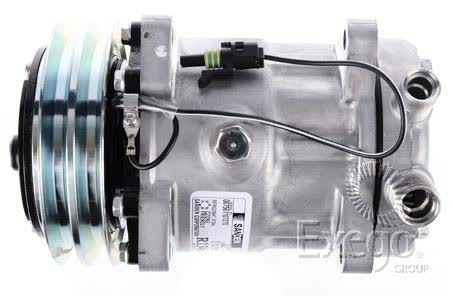

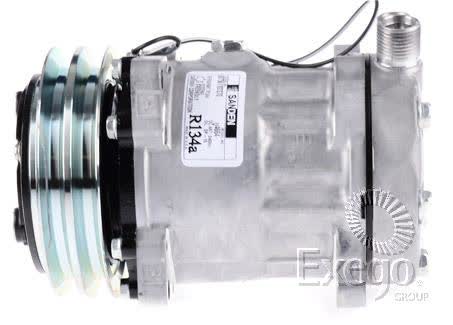

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15 CXS4664

The Sanden SD7H15 air conditioning compressor is a 12V unit with ear mount mounting, vertical O-ring fitting type, and part number CXS4664. It is listed as a Sanden compressor with a AA pulley section, 132mm clutch diameter, and a 39.55mm gauge line, so it is important to match the mounting style and line arrangement before ordering.

This compressor is supplied with an oil capacity of 240ml and uses SP 20 oil type. The note also specifies O-rings to suit ORX008 and ORX010, which is useful when confirming the sealing hardware needed for installation. It weighs 7.6kg and does not have a dust cover.

Application data provided for this unit includes Kenworth C510 with QSK 19L, K100E/L700 60 Series 14.0L from 01/1989 onward, plus K104 60 Series 12.7L, T604 14.6L, T350 ISC 8.3L from 01/2001 to 01/2008, and T300 ISC 8.3L, T401 L10 10.0L, and T904 ISX 14.9L from 01/1996 to 12/2004. Always check the exact compressor arrangement on the vehicle, as ear mount, pulley section, and head code all need to align for a proper replacement.

Key Features

• Sanden SD7H15 air conditioning compressor
• 12V unit
• Ear mount compressor mounting

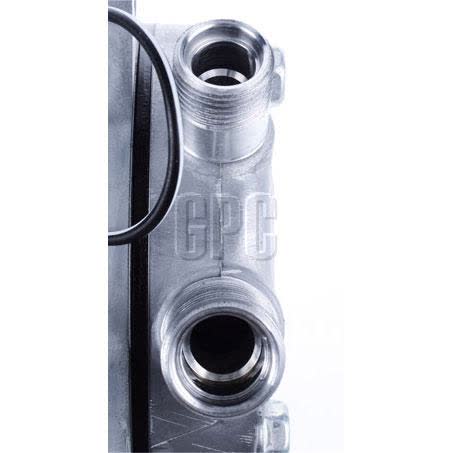

• Vertical O-ring fitting type
• AA pulley section

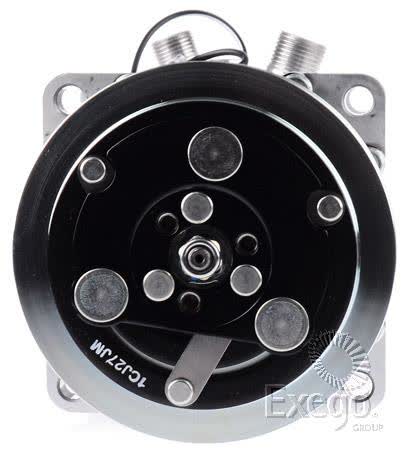

• 132mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Ear mount
• Fitting type: Vertical O-ring
• Pulley section: AA
• Clutch diameter: 132mm

Known application details

• Kenworth C510 QSK 19L
• Kenworth K100E/L700 60 Series 14.0L from 01/1989 onward
• Kenworth K104 60 Series 12.7L
• Kenworth T604 14.6L
• Kenworth T350 ISC 8.3L from 01/2001 to 01/2008
• Kenworth T300 ISC 8.3L
• Kenworth T401 L10 10.0L
• Kenworth T904 ISX 14.9L from 01/1996 to 12/2004

Application and Buying Notes

Before ordering, confirm the vehicle’s compressor style against the ear mount mounting, vertical O-ring fittings, AA pulley section, and 132mm clutch diameter. Those details matter as much as the make and model, because a compressor can look similar while still having a different mounting or line configuration.

The listed part number is CXS4664 and the compressor series is SD7H15, so those are the two best reference points when comparing a removed unit or checking against a parts catalogue. If you are replacing a failed compressor, also check the head code JD Head and the gauge line measurement of 39.55mm to make sure the replacement matches the installed setup.

The unit weighs 7.6kg and does not have a dust cover, which may be useful when comparing against the existing compressor during removal. If the old unit has a different pulley section, clutch size, or line arrangement, it should be treated as a different application even if the vehicle model seems close.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4664 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP 20, Oil Capacity 240ml, Head Code JD Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4664, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15, Clutch Diameter 132mm, Fitting Type Vertical O Ring, Series SD7H15, Voltage 12, Gauge Line 39.55mm, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15. Part number CXS4664 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4664, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430, CASE 430 2008, CASE 430 2009, CASE 430 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number CXS4664, SD7H15 series, ear mount layout, vertical O-ring fittings, AA pulley section, and the listed vehicle application details before purchase.

FAQ

What is the part number for this compressor?

The part number listed is CXS4664.

What voltage is this compressor?

It is a 12V air conditioning compressor.

What mounting style does it use?

This unit uses ear mount compressor mounting.

What oil does it use?

The note specifies SP 20 oil type, with an oil capacity of 240ml.

Does it have a dust cover?

No. The dust cover field is listed as No.

What vehicle applications are listed?

Listed applications include Kenworth C510 QSK 19L, K100E/L700 60 Series 14.0L from 01/1989 onward, K104 60 Series 12.7L, T604 14.6L, T350 ISC 8.3L from 01/2001 to 01/2008, T300 ISC 8.3L, T401 L10 10.0L, and T904 ISX 14.9L from 01/1996 to 12/2004.
