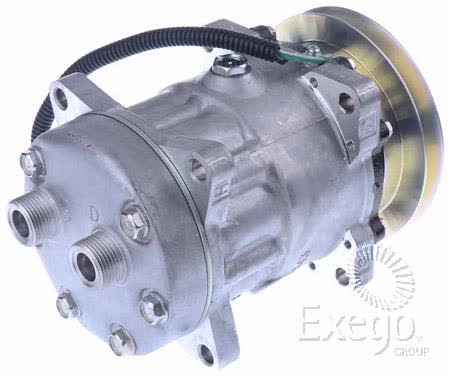

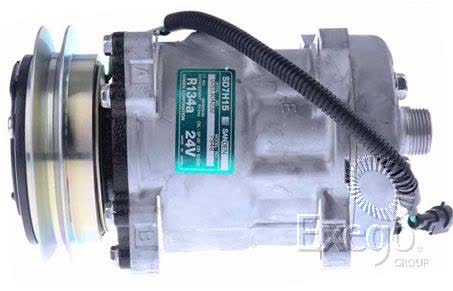

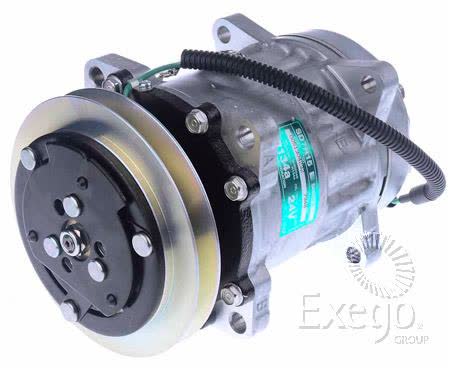

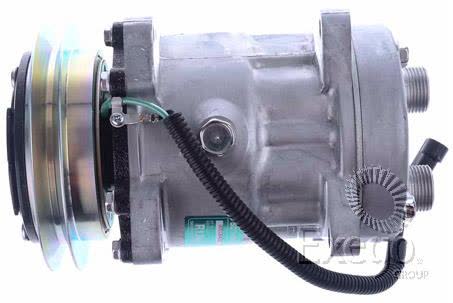

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 CXS7948

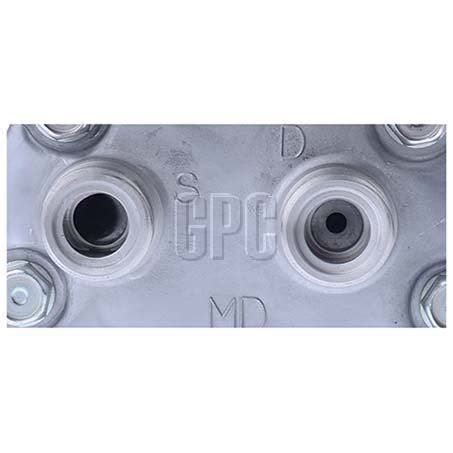

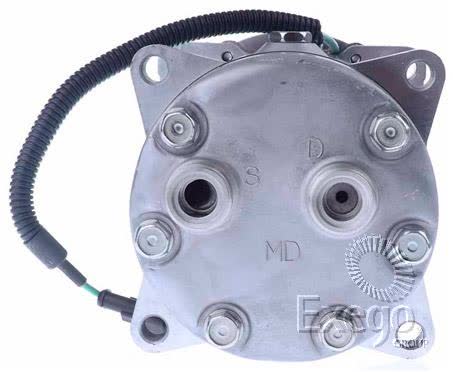

This Sanden air conditioning compressor is a 24V ear mount unit from the SD7H15 series, listed under part number CXS7948 and original equipment number 7948. It uses an MD head, a horizontal tube O-ring fitting type, a 135mm clutch diameter and a pulley section A, so the physical mounting and hose connection style need to match the vehicle exactly.

The compressor is specified with 200ml oil capacity and a stated weight of 7.14kg. It is a Sanden unit supplied as one each, and the product information identifies it as a cooling component for vehicle air conditioning applications where the correct compressor configuration is important.

Listed fitment includes Iveco Eurocargo ML100/150E2 5.9L from 11/1998 to 12/2008, Eurocargo ML120E/130E1 Tector 5.9L from 01/1999 to 12/2000, and Eurocargo ML188E1 Tector 5.9L plus ML75 8040.45 3.9L from 01/1998 to 01/2003. The application details point to a 24V system and an ear mount layout, which makes part number and mounting style the key checks before ordering.

Key Features

• 24V Sanden air conditioning compressor
• SD7H15 series
• Ear mount compressor mounting
• Horizontal tube O-ring fitting type

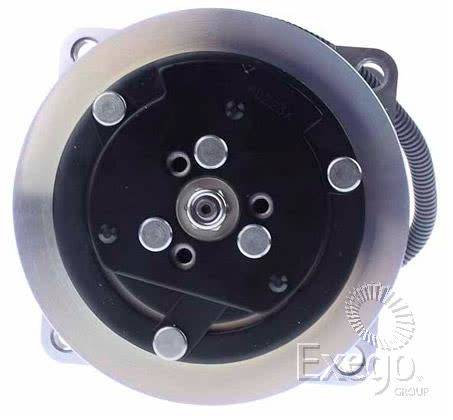

• 135mm clutch diameter
• Pulley section A

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 24V
• Compressor mounting: Ear mount
• Fitting type: Horizontal tube O-ring
• Clutch diameter: 135mm
• Oil capacity: 200ml

Confirmed application details

• Iveco Eurocargo ML100/150E2 5.9L — 11/1998 to 12/2008
• Iveco Eurocargo ML120E/130E1 Tector 5.9L — 01/1999 to 12/2000
• Iveco Eurocargo ML188E1 Tector 5.9L — 01/1998 to 01/2003
• Iveco ML75 8040.45 3.9L — 01/1998 to 01/2003

Application and Buying Notes

Before ordering, check the vehicle’s compressor mounting style, because this unit is an ear mount SD7H15 rather than a universal replacement. The 24V specification is also important, as a mismatch in system voltage can prevent correct operation even when the compressor body looks similar.

The hose connection style is horizontal tube O-ring, so the fittings on the vehicle need to match that arrangement. It is also worth confirming the clutch diameter of 135mm and pulley section A, because compressor drive details can differ between similar-looking applications.

This compressor is listed with original equipment number 7948 and part number CXS7948. Those identifiers are the most reliable cross-check when replacing an existing unit, especially where the vehicle model range overlaps across several Eurocargo and ML applications.

Oil capacity is listed at 200ml, so correct installation and system preparation matter. If the compressor being replaced failed internally, the rest of the air conditioning system should be checked carefully before fitment, as contamination can affect the new unit if the system is not cleaned and set up properly.

The fitment range covers specific Iveco Eurocargo and ML applications over defined date ranges, but matching the model name alone is not enough. Confirm the exact engine, build date, mounting style and compressor identification already fitted to the vehicle before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS7948 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 7948, Series SD7H15, Voltage 24, Oil Capacity 200ml, Head Code MD Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS7948, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Ear Mount SD7H15, Clutch Diameter 135mm, Fitting Type Horizontal Tube O Ring, Pulley Section A, Suits Unit Make Sanden, Gauge Line 39.55mm, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15. Part number CXS7948 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS7948, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number CXS7948, original equipment number 7948, 24V electrical specification, ear mount layout, and the listed application details before ordering. Vehicle model names can overlap, so the compressor mounting, pulley and hose connection style should be checked against the existing unit.

FAQ

What type of compressor is this?

It is a Sanden air conditioning compressor from the SD7H15 series, specified as a 24V ear mount unit with part number CXS7948.

What vehicles is it listed for?

Listed applications are Iveco Eurocargo ML100/150E2 5.9L from 11/1998 to 12/2008, Eurocargo ML120E/130E1 Tector 5.9L from 01/1999 to 12/2000, Eurocargo ML188E1 Tector 5.9L from 01/1998 to 01/2003, and Iveco ML75 8040.45 3.9L from 01/1998 to 01/2003.

What voltage is required?

The compressor is specified for 24V systems.

What are the key physical identifiers?

The key identifiers are ear mount compressor mounting, horizontal tube O-ring fitting type, 135mm clutch diameter, pulley section A, MD head, and a weight of 7.14kg.

Is the part number listed?

Yes. The part number is CXS7948 and the original equipment number is 7948.

Does it come with a warranty?

Yes. The listed warranty is one year.
