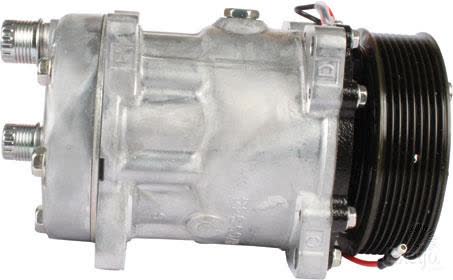

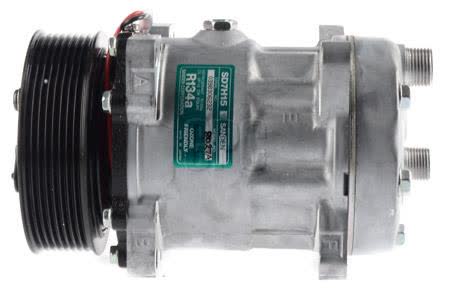

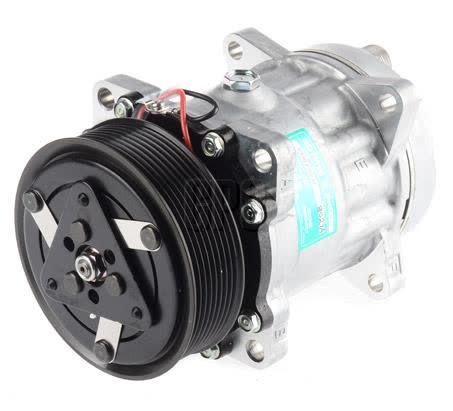

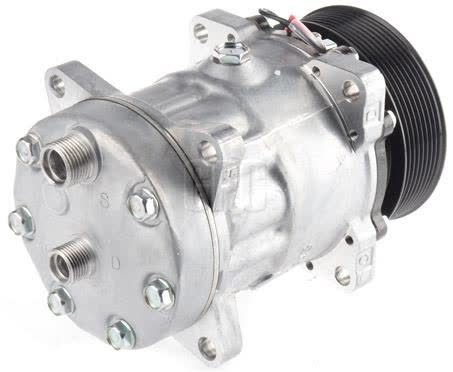

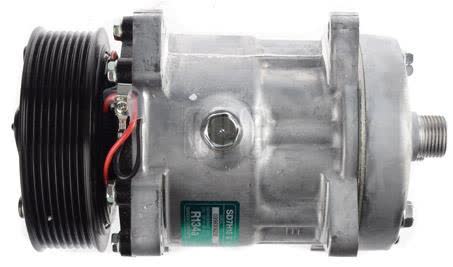

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15 CXS8027A

The Sanden SD7H15 air conditioning compressor is a 12V unit with ear mount compressor mounting and an 8 groove pulley section. It is listed under part number CXS8027A and is supplied as a single each item for air conditioning system replacement or servicing where the matching compressor specification is required.

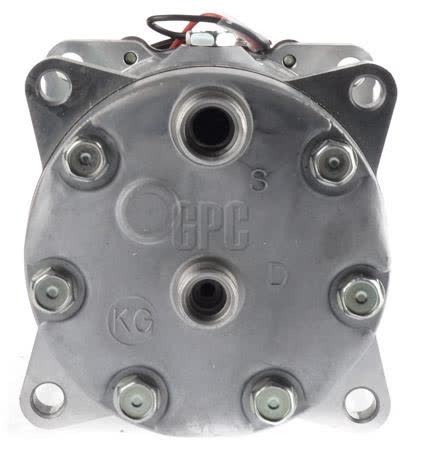

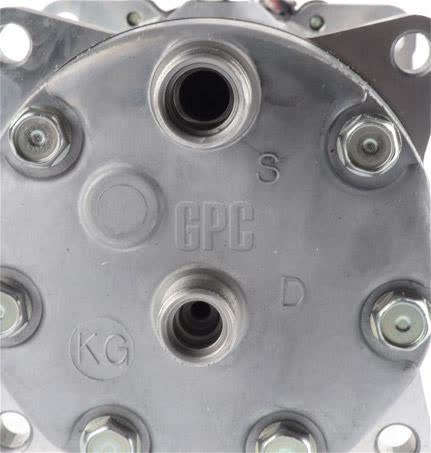

This compressor uses a horizontal O ring fitting type, has a KG head, and is noted with a 119mm clutch diameter and 50.1mm gauge line. The unit is identified as a Sanden compressor with a universal application note, so the practical check is to confirm your mounting style, drive configuration, and connection details before ordering.

Key Features

• 12V air conditioning compressor
• Ear mount configuration
• 8 groove pulley section
• Sanden SD7H15 series
• Part number CXS8027A
• Horizontal O ring fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Voltage: 12V
• Series: SD7H15
• Part No.: CXS8027A
• Compressor mounting: Ear mount
• Pulley section: 8 groove
• Fitting type: Horizontal O ring

Fitment information

• Fitment is listed as universal application.
• Always confirm the part number CXS8027A against the existing compressor and the vehicle’s air conditioning setup before ordering.

Application and Buying Notes

The most reliable buying check for this compressor is the part number CXS8027A, followed by the physical details: 12V voltage, SD7H15 series, ear mount layout, and 8 groove pulley section. If any of those points differ from the unit being replaced, it is worth pausing to compare the installation carefully rather than relying on appearance alone.

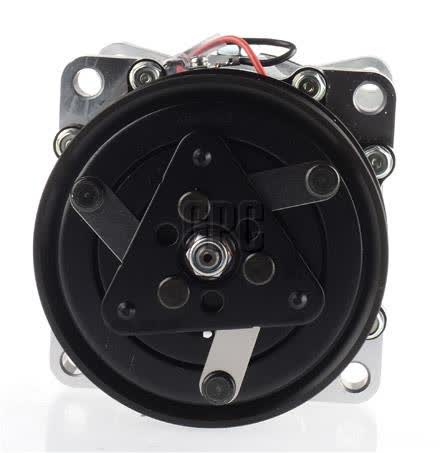

The clutch diameter is listed at 119mm and the gauge line at 50.1mm. Those measurements can be useful when cross-checking packaging, belt alignment, and general physical clearance in the vehicle. The compressor also has no dust cover listed and weighs 7.5kg, which may help when comparing to the original unit or planning handling and installation.

Because the application note is universal rather than a detailed model-by-model vehicle list, the safest approach is to verify the mounting style, pulley groove count, electrical system voltage, and connection type against the original compressor. For air conditioning work, the correct physical match is just as important as the part number, especially where line type and head style need to align.

This compressor is backed by a one year warranty, but warranty coverage does not replace the need to confirm compatibility before fitting. If the existing compressor shows a different mounting arrangement, a different pulley section, or a different head and line style, that should be treated as a sign to re-check suitability before purchase or installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8027A helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP10, Oil Capacity 135ml, Head Code KG Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS8027A, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15, Clutch Diameter 119mm, Fitting Type Horizontal O Ring, Series SD7H15, Voltage 12, Gauge Line 50.1mm, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15. Part number CXS8027A should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8027A, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment with part number CXS8027A, the 12V SD7H15 specification, ear mount mounting, 8 groove pulley section, and horizontal O ring connection details before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS8027A. For this listing, part number CXS8027A is the main reference point. Listed voltage is 12. Published fitment references include CASE IH MAXXUM, CASE IH MAXXUM 2002, CASE IH MAXXUM 2003. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is specified as a 12V air conditioning compressor. For this listing, part number CXS8027A is the main reference point. Listed voltage is 12. Published fitment references include CASE IH MAXXUM, CASE IH MAXXUM 2002, CASE IH MAXXUM 2003. These details should still be checked against the original unit before ordering.

What mounting style does it have?

It is listed as an ear mount compressor. For this listing, part number CXS8027A is the main reference point. Listed voltage is 12. Published fitment references include CASE IH MAXXUM, CASE IH MAXXUM 2002, CASE IH MAXXUM 2003. These details should still be checked against the original unit before ordering.

What pulley section is specified?

The pulley section is listed as 8 groove. For this listing, part number CXS8027A is the main reference point. Listed voltage is 12. Published fitment references include CASE IH MAXXUM, CASE IH MAXXUM 2002, CASE IH MAXXUM 2003. These details should still be checked against the original unit before ordering.

What oil type and capacity are noted?

The note specifies SP10 oil type and an oil capacity of 135ml. For this listing, part number CXS8027A is the main reference point. Listed voltage is 12. Published fitment references include CASE IH MAXXUM, CASE IH MAXXUM 2002, CASE IH MAXXUM 2003. These details should still be checked against the original unit before ordering.

Is there fitment information provided?

Yes. Fitment is noted as universal application, but you should still confirm the part number and the physical details against the existing unit before ordering. For this listing, part number CXS8027A is the main reference point. Listed voltage is 12. Published fitment references include CASE IH MAXXUM, CASE IH MAXXUM 2002, CASE IH MAXXUM 2003. These details should still be checked against the original unit before ordering.
