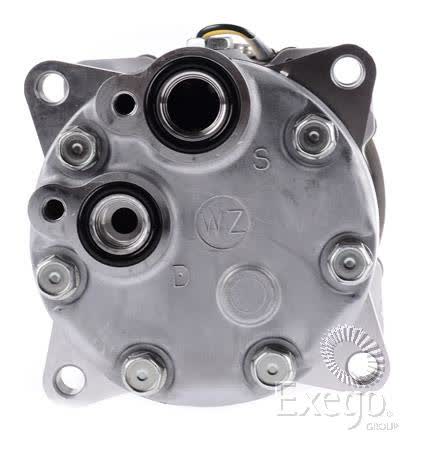

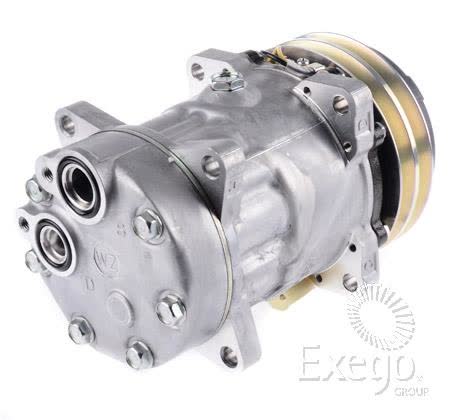

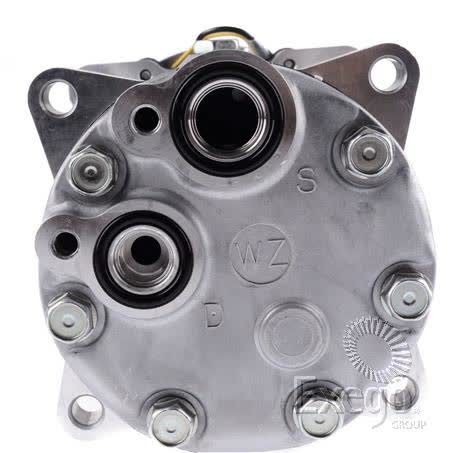

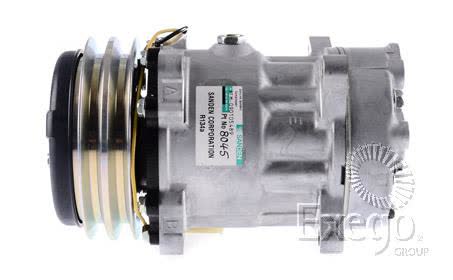

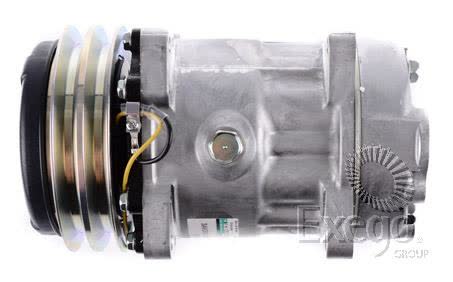

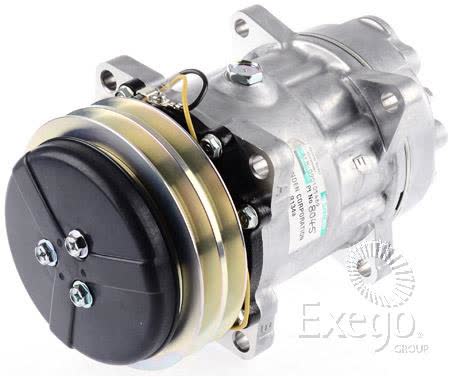

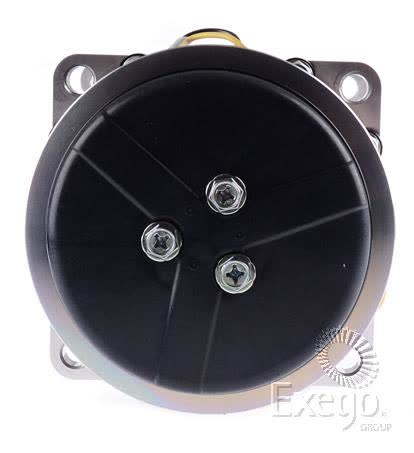

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 CXS8045

The Sanden SD7H15 air conditioning compressor is a 24V unit with an ear mount design, horizontal special pad fitting type, and a 132mm clutch diameter. It is listed under part number CXS8045 and supplied as each, with a dust cover fitted and a gauge line measurement of 39.55mm.

This compressor suits Sanden applications and uses pulley section AA. The stated oil capacity is 240ml, the oil type is SP 10, and the note also calls for a special coil terminal. O-rings to suit ORX058 and ORX059 are specified, which is important when matching the compressor to the rest of the system.

Fitment is explicitly listed for Volvo Loader L120F with D7E 7.1L from 01/2003 to 12/2011. That makes this a specialised replacement rather than a universal compressor, so the part number, mounting style, voltage, and application should all be checked before purchase.

With a weight of 7.58kg and WZ head code, this unit is intended for buyers who need the correct Sanden-format compressor for a known application. The one year warranty is also listed, but the correct fit still depends on matching the compressor details to the vehicle and existing installation.

Key Features

• 24V Sanden air conditioning compressor
• SD7H15 series
• Ear mount construction
• Horizontal special pad fitting type
• Pulley section AA
• 132mm clutch diameter

Specifications

• Type: Air conditioning compressor
• Brand: Sanden
• Part No.: CXS8045
• Series: SD7H15
• Voltage: 24V
• Compressor mounting: Ear mount
• Fitting type: Horizontal special pad
• Clutch diameter: 132mm

Verified fitment

• Volvo Loader L120F D7E 7.1L
• 01/2003 to 12/2011

Application and Buying Notes

Before ordering, compare the part number CXS8045 and the mounting details against the compressor already fitted to the machine. The ear mount style, horizontal special pad fitting type, 24V electrical setup, and 132mm clutch diameter all need to line up with the existing installation for the compressor to be a sensible match.

The system notes call for O-rings to suit ORX058 and ORX059, SP 10 oil, and a special coil terminal. Those details matter when a compressor is being replaced, because the wrong seals, oil type, or connector arrangement can create extra work at installation time or leave the unit unsuitable for the vehicle.

Fitment is only stated for the Volvo Loader L120F D7E 7.1L built from 01/2003 to 12/2011. If your machine differs in model, engine, year range, or compressor layout, treat that as a warning sign and verify the application carefully before ordering.

The listed gauge line of 39.55mm, pulley section AA, and WZ head code provide further identifiers for checking against the original unit. These measurements and codes are especially useful when the parts store or workshop is confirming the replacement against an old compressor rather than relying on a vehicle name alone.

At 7.58kg, this is a substantial component, so confirm the existing mounting points, hose arrangement, and electrical connection before fitting. Replacing an air conditioning compressor is usually best done with the system details in front of you, not by guessing from the brand or general series name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8045 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 . Oil Type SP 10 . Special coil terminal., Oil Capacity 240ml, Head Code WZ Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS8045, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Ear Mount SD7H15, Clutch Diameter 132mm, Fitting Type Horizontal Special Pad, Series SD7H15, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N Yes.

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15. Part number CXS8045 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8045, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO A, VOLVO A 2007, VOLVO A 2011, VOLVO CONSTRUCTION. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility by matching part number CXS8045, the SD7H15 series, 24V ear mount configuration, and the listed Volvo Loader L120F D7E 7.1L application from 01/2003 to 12/2011 before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS8045.

What voltage does this compressor use?

It is a 24V compressor.

What vehicle application is listed for this part?

It is listed to suit Volvo Loader L120F D7E 7.1L from 01/2003 to 12/2011.

What mounting style does it have?

The compressor is listed as ear mount with a horizontal special pad fitting type.

What oil and oil capacity are specified?

The listed oil type is SP 10 and the oil capacity is 240ml.

Are any additional installation items noted?

Yes. The notes specify O-rings to suit ORX058 and ORX059, plus a special coil terminal and a dust cover fitted.
