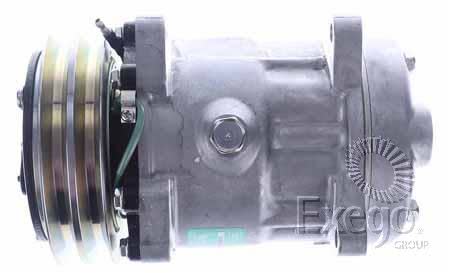

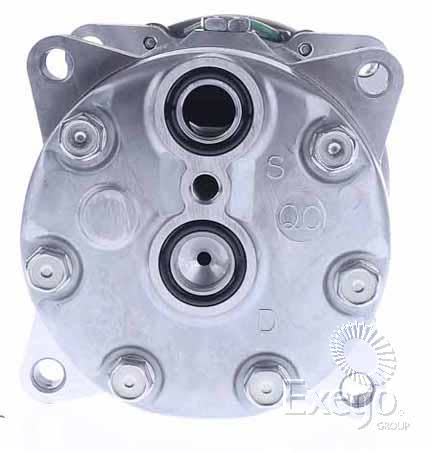

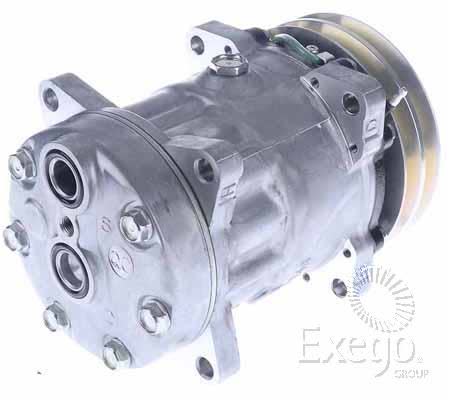

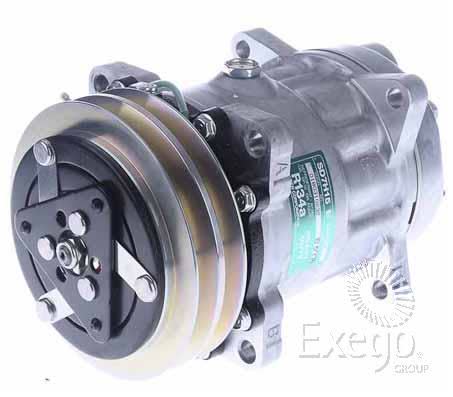

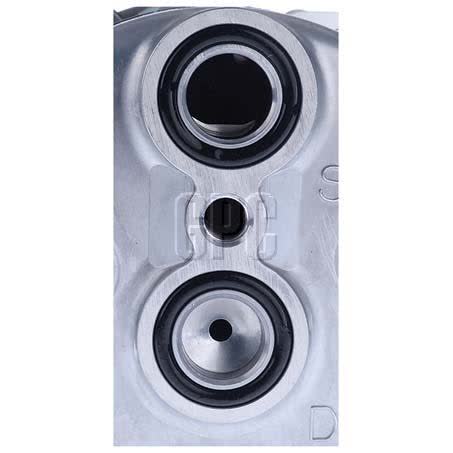

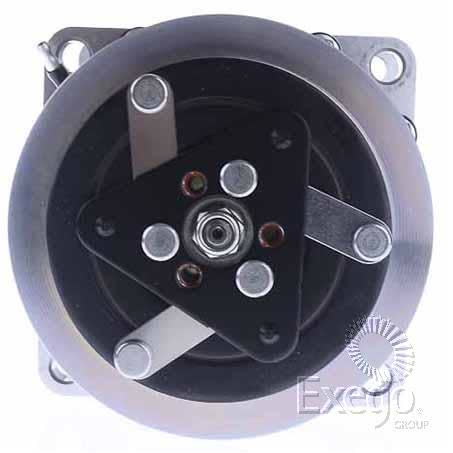

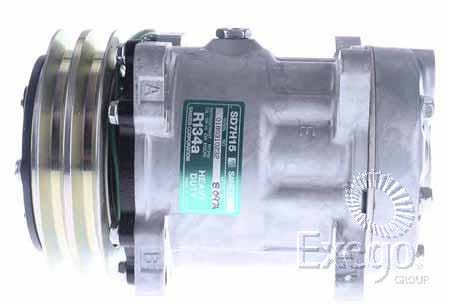

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 CXS8097A

The Sanden SD7H15 air conditioning compressor is a 24V unit with ear mount fitting, pulley section AA, and a 132mm clutch diameter. It is listed under part number CXS8097A and is supplied as a single each unit for vehicle climate control applications.

This compressor is described with a GM horizontal pad fitting type, a gauge line of 39.55mm, and no dust cover. It also uses 207ml oil capacity and is noted for SP10 oil type, with O rings to suit ORX017 x 2 required.

Application coverage includes DAF 75, 85 and 95 models with 8.7L and 11.5L engines from 01/1987 to 12/1998, CF75 Paccar 9.2L from 09/2007 onwards, CF85 and XF95 with 12.6L and 12.9L engines from 01/2001 to 12/2007, plus Liebherr R9800 applications noted for 12V4000 51.7L and QSK60 60.2L from 01/2011 onwards.

Key Features

• Sanden SD7H15 series compressor
• 24V electrical system
• Ear mount compressor mounting
• GM horizontal pad fitting type
• Pulley section AA
• 132mm clutch diameter

Specifications

• Type: Air conditioning compressor
• Brand: Sanden
• Series: SD7H15
• Voltage: 24
• Compressor mounting: Ear mount
• Fitting type: GM horizontal pad
• Pulley section: AA
• Clutch diameter: 132mm

Confirmed application notes

• DAF 75, 85 and 95 with 8.7L and 11.5L engines from 01/1987 to 12/1998
• DAF CF75 Paccar 9.2L from 09/2007 onwards
• DAF CF85 and XF95 with 12.6L and 12.9L engines from 01/2001 to 12/2007
• Liebherr R9800 with 12V4000 51.7L from 01/2011 onwards
• Liebherr R9800 with QSK60 60.2L from 01/2011 onwards

Application and Buying Notes

Before ordering, compare the part number CXS8097A with the compressor already fitted to the vehicle or machine. The mounting style is ear mount and the fitting type is GM horizontal pad, so both the physical mount and the pad arrangement need to match the existing setup. The 24V specification is also important, as this unit is not identified as a 12V replacement.

The listed applications are specific to certain DAF and Liebherr models and engine combinations, including DAF CF75, CF85 and XF95, plus Liebherr R9800 variants. If the equipment has been changed previously, the engine package, bracket layout, pulley arrangement, and hose connection details should be checked against the compressor's AA pulley section, 132mm clutch diameter and 39.55mm gauge line.

A weight of 7.6kg can help with handling and logistics, but it should not be used alone to confirm compatibility. The safest approach is to match the vehicle application, mounting style, voltage, and part number together, particularly where the equipment has been built or serviced in the field.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8097A helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2 . Oil Type SP10, Oil Capacity 207ml, Weight 7.6kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS8097A, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Ear Mount SD7H15, Clutch Diameter 132mm, Fitting Type GM Horizontal Pad, Series SD7H15, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15. Part number CXS8097A should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8097A, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAF CF 75, DAF CF 75 2001, DAF CF 75 2002, DAF CF 75 2003, LIEBHERR R9200, LIEBHERR R9200 2019. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXS8097A, the 24V ear mount configuration, GM horizontal pad fitting type, and the stated DAF or Liebherr application details before ordering.

FAQ

What type of compressor is this?

It is a Sanden air conditioning compressor from the SD7H15 series. The listing shows it as a 24V ear mount unit with part number CXS8097A.

Which vehicles or machines are listed for this compressor?

Listed applications include DAF 75, 85 and 95 with 8.7L and 11.5L engines from 01/1987 to 12/1998, DAF CF75 Paccar 9.2L from 09/2007 onwards, DAF CF85 and XF95 with 12.6L and 12.9L engines from 01/2001 to 12/2007, and Liebherr R9800 applications from 01/2011 onwards.

What voltage is required?

The compressor is specified as 24V.

What mounting and fitting details are listed?

The mounting style is ear mount and the fitting type is GM horizontal pad. The pulley section is AA and the clutch diameter is 132mm.

What oil information is provided?

The oil capacity is 207ml and the note states SP10 oil type. It also notes O rings to suit ORX017 x 2.

Is there a warranty?

Yes. The listed warranty is one year.
