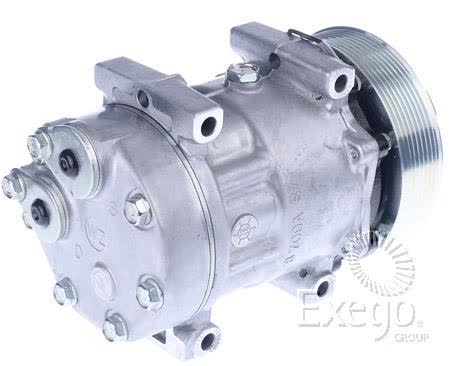

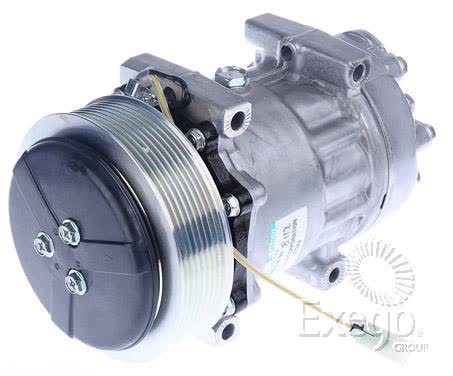

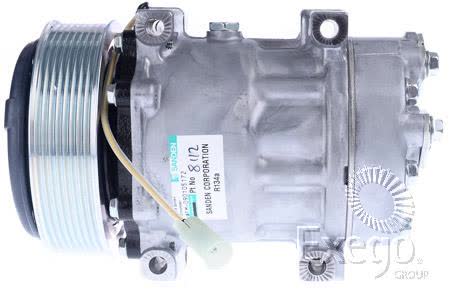

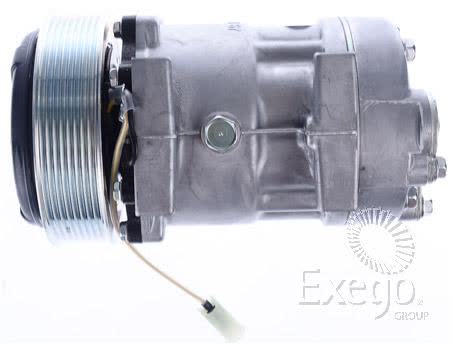

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXS8112

The Sanden SD7H15 air conditioning compressor is a 24V, direct mount unit identified by part number CXS8112. It is listed with a 132mm clutch diameter, 8 groove pulley section, horizontal special pad fitting type, and a WZ head code, so it is the type of compressor that needs to be matched carefully to the vehicle’s existing mounting and hose arrangement.

This compressor is supplied as a Sanden unit, weighs 8.36kg, and is noted with dust cover included. The oil type specified is SP 10, with an oil capacity of 240ml, and the listing also notes O rings to suit ORX058 and ORX059. Those details are important when replacing a compressor, because refrigerant system work should always be matched to the correct sealing and lubrication requirements.

Verified application coverage is given for Volvo truck and bus platforms, including FH12/16 12.1L and 16.1L from 08/1993 to 12/2016, FM11/13 10.8L and 12.8L from 01/2010 to 12/2016, and NH12 D12C 12.1L from 01/1999 to 01/2003. The compressor series is SD7H15, and the warranty listed is one year.

Key Features

• Sanden SD7H15 air conditioning compressor
• 24V direct mount design
• Part number CXS8112
• 8 groove pulley section

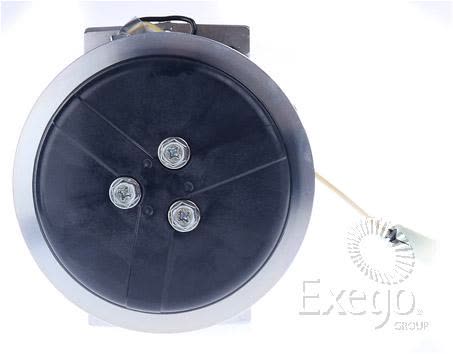

• 132mm clutch diameter
• Horizontal special pad fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 24V
• Compressor mounting: Direct mount
• Part No.: CXS8112

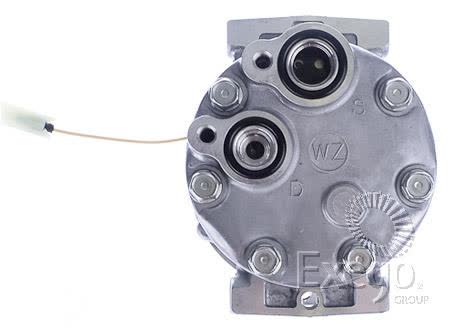

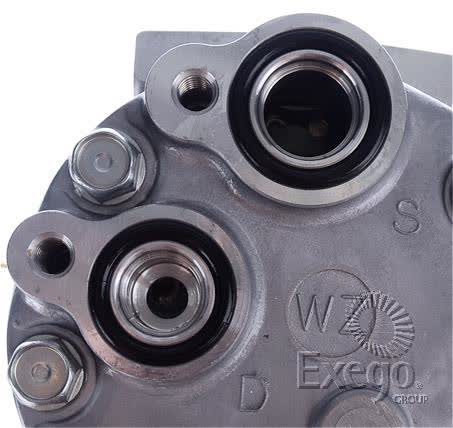

• Head code: WZ Head
• Fitting type: Horizontal special pad

Verified Fitment

• Volvo Truck/Bus FH12/16 12.1L & 16.1L — 08/1993 to 12/2016
• Volvo Truck/Bus FM11/13 10.8L & 12.8L — 01/2010 to 12/2016
• Volvo Truck/Bus NH12 D12C 12.1L — 01/1999 to 01/2003

Application and Buying Notes

Before ordering, match the part number CXS8112, the 24V electrical requirement, and the SD7H15 series against the compressor currently fitted to the vehicle. The mounting style is direct mount with a horizontal special pad fitting type, so the physical attachment points and hose layout need to align with the replacement unit.

The pulley section is 8 groove and the clutch diameter is 132mm, which are practical checks when comparing against the existing compressor. If the vehicle has a different belt profile, clutch size, or head arrangement, the compressor may not interchange correctly even if the vehicle is a Volvo listed in the fitment data.

The lubricant detail also matters. This unit is noted for SP 10 oil and a 240ml oil capacity, with O rings to suit ORX058 and ORX059. Those items should be confirmed during installation so the compressor is prepared correctly for the system it is going into.

The verified application information covers specific Volvo truck and bus models and engine capacities only. If your vehicle is outside the listed FH12/16, FM11/13, or NH12 D12C applications, treat fitment as unconfirmed and check the existing compressor, mounting, and part references before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8112 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 . Oil Type SP 10, Oil Capacity 240ml, Head Code WZ Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS8112, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 132mm, Fitting Type Horizontal Special Pad, Series SD7H15, Voltage 24, Gauge Line 56.5mm, Dust Cover Y/N Yes.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXS8112 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8112, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SANDVIK LH621, SANDVIK LH621 1980, VOLVO A, VOLVO A 2000, VOLVO A 2007, VOLVO A 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking the part number CXS8112, the SD7H15 series, the 24V rating, and the direct mount horizontal special pad arrangement against the unit already on the vehicle. Do not rely on the vehicle make alone; compare the mounting, pulley section, clutch diameter, and application details before ordering.

FAQ

What vehicle applications are listed for this compressor?

The verified applications are Volvo Truck/Bus FH12/16 12.1L and 16.1L from 08/1993 to 12/2016, Volvo Truck/Bus FM11/13 10.8L and 12.8L from 01/2010 to 12/2016, and Volvo Truck/Bus NH12 D12C 12.1L from 01/1999 to 01/2003.

What is the part number?

The listed part number is CXS8112.

What voltage is this compressor?

It is a 24V compressor.

What mounting style does it use?

It is listed as a direct mount compressor with a horizontal special pad fitting type.

What oil details are specified?

The noted oil type is SP 10 and the oil capacity is 240ml.

What warranty is listed?

The listed warranty is one year.
