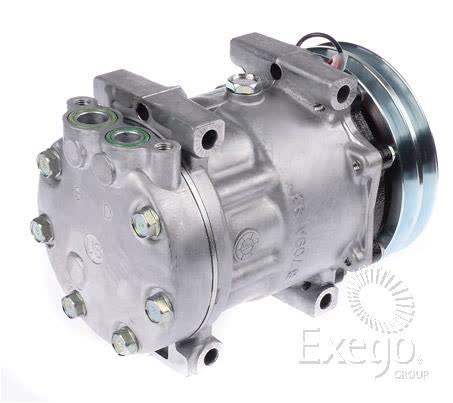

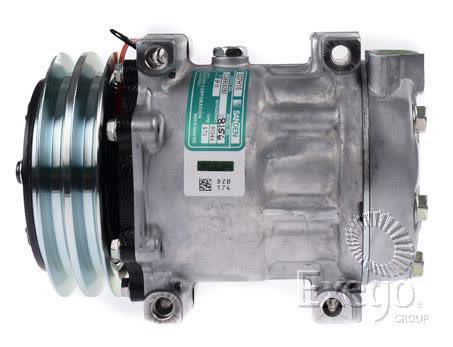

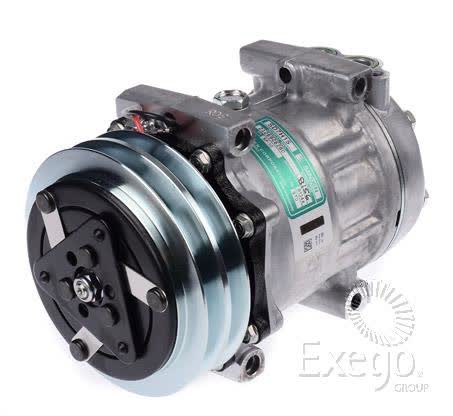

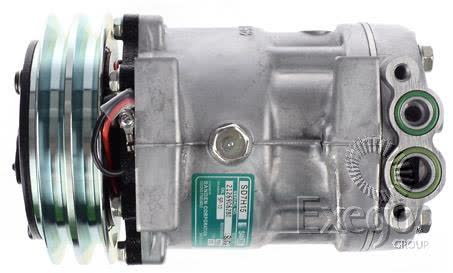

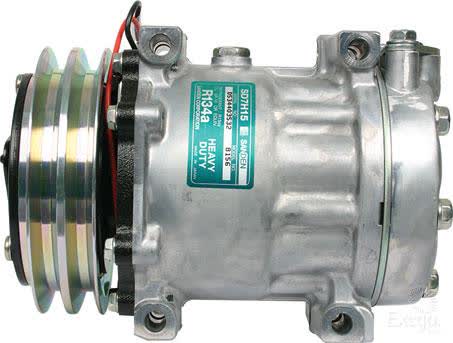

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 Part No. CXS8156

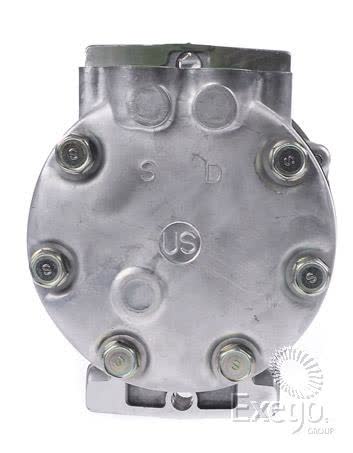

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit supplied as part number CXS8156. It is listed with an original equipment number of 8156, vertical pad fitting type, AA pulley section, 132mm clutch diameter, and a US head configuration for applications that match these details.

This compressor is specified with a 49.55mm gauge line, 135ml oil capacity, and SP 10 oil type. The unit weighs 8kg and is supplied without a dust cover. The mounting style is direct mount, so checking the existing compressor layout and hose arrangement is important before ordering.

Application coverage supplied for this unit includes Isuzu F Series FRR500, NPR, NPR400 and NQR450 5.2L from 12/2002 onwards, plus Isuzu N Series NKR150/200 3.1L and 3.6L from 01/1989 to 12/1999, and N Series NPR200/300 3.6L and NPR300 4.3L from 01/1989 to 12/1999. The same compressor family is also shown against broader machine and vehicle applications in the fitment data, including selected CASE, ISUZU, NEW HOLLAND and TCM entries.

A one year warranty is listed for this Sanden compressor. As with any climate control component, the best buying check is to confirm the part number CXS8156, the OE number 8156, the 12V electrical system, and the compressor mounting and head style against the vehicle already fitted.

Key Features

• Sanden SD7H15 compressor
• 12V direct mount design
• Part number CXS8156
• Original equipment number 8156

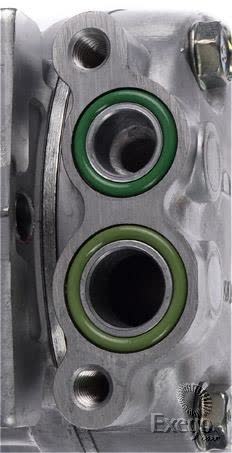

• Vertical pad fitting type
• AA pulley section

Specifications

• Type: Air conditioning compressor
• Brand: Sanden
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Direct mount
• Fitting type: Vertical pad
• Pulley section: AA

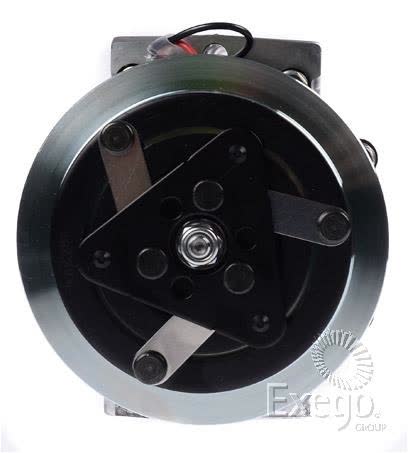

• Clutch diameter: 132mm

Verified fitment applications

• Isuzu F Series FRR500 5.2L from 12/2002 onwards
• Isuzu F Series NPR 5.2L from 12/2002 onwards
• Isuzu F Series NPR400 5.2L from 12/2002 onwards
• Isuzu F Series NQR450 5.2L from 12/2002 onwards
• Isuzu N Series NKR150 3.1L from 01/1989 to 12/1999
• Isuzu N Series NKR200 3.6L from 01/1989 to 12/1999
• Isuzu N Series NPR200 3.6L from 01/1989 to 12/1999
• Isuzu N Series NPR300 3.6L from 01/1989 to 12/1999

Application and Buying Notes

Before ordering, compare the part number CXS8156 and the original equipment number 8156 with the compressor already on the vehicle. The mounting style is direct mount with a vertical pad fitting type, so the port layout and bracket arrangement need to line up with the existing system rather than being assumed from the brand alone.

The listed voltage is 12V, which suits vehicles with a 12-volt electrical system. The compressor also has an AA pulley section and a 132mm clutch diameter, so those measurements should be checked against the fitted unit if you are replacing an existing compressor rather than building the system from scratch.

Fitment should be matched carefully to the exact vehicle and engine listed. The confirmed Isuzu coverage covers F Series FRR500, NPR, NPR400 and NQR450 5.2L from 12/2002 onwards, plus earlier N Series applications from 01/1989 to 12/1999. Do not rely on model name alone, as the application range changes with series, engine size and build date.

The unit weighs 8kg and is supplied without a dust cover, which may be useful when comparing against the removed compressor and identifying whether any protective parts need to be transferred or sourced separately. Warranty is one year, so keep the purchase details and fitment checks together for reference if you are replacing a failed component.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8156 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 8156, Series SD7H15, Voltage 12, Gauge Line 49.55mm, Dust Cover Y/N No, Weight 8kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS8156, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 132mm, Fitting Type Vertical Pad, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 .Oil Type SP 10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS8156 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8156, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment by matching part number CXS8156, OE number 8156, the 12V direct mount configuration, and the exact vehicle application details before ordering. If the existing compressor differs in pulley, clutch, head code, mounting style, or oil specification, recheck compatibility carefully.

FAQ

What is the part number for this compressor?

The listed part number is CXS8156.

What voltage is this Sanden compressor?

It is a 12V compressor.

What is the compressor series?

The compressor is in the SD7H15 series.

Which Isuzu applications are listed?

Listed Isuzu applications include F Series FRR500, NPR, NPR400 and NQR450 5.2L from 12/2002 onwards, plus N Series NKR150/200 3.1L and 3.6L from 01/1989 to 12/1999, and N Series NPR200/300 3.6L and NPR300 4.3L from 01/1989 to 12/1999.

What oil specification is noted?

The note lists SP 10 oil and an oil capacity of 135ml.

Is the unit supplied with a dust cover?

No. The specification states dust cover: No.
