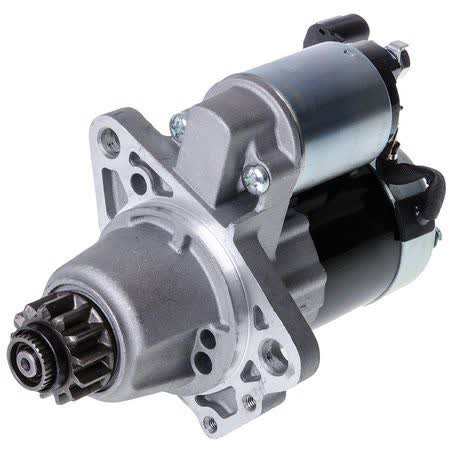

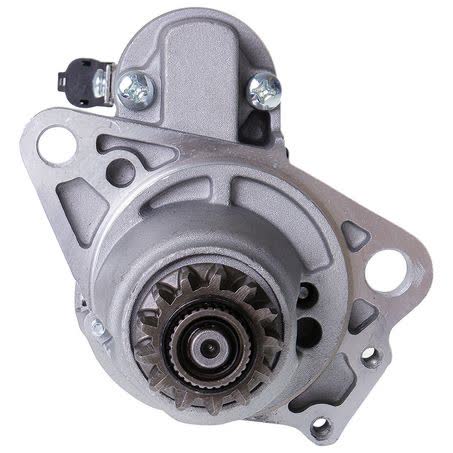

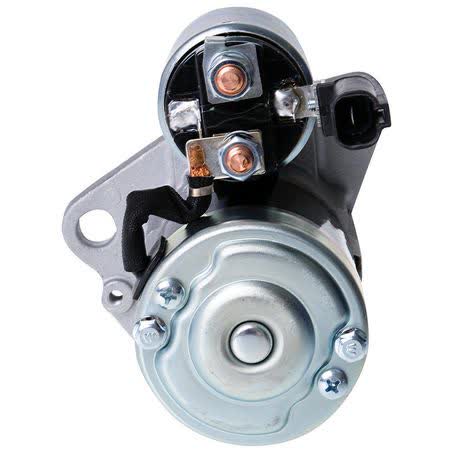

OEX Starter Motor 12V 13 Tooth CCW Hitachi Style HXS087

The OEX HXS087 is a 12V starter motor with a 13 tooth pinion, counter-clockwise rotation, and a Hitachi style fitment profile. It is a new unit with a 1.4kW power rating, 2 hole starter mount type, and a 75mm flange diameter, so it is important to compare the unit’s physical dimensions and rotation before ordering.

This starter motor suits Nissan X-Trail T30 and T31 models with the QR25DE engine, and the supplied fitment preview also references Nissan Elgrand and Nissan NV350 / Caravan applications. Because starter motors are matched by engine, transmission, mounting pattern, and rotation, confirming the part number HXS087 against the vehicle application remains the safest way to order correctly.

OEX describes this unit as a quality replacement starter motor for the Australian automotive aftermarket. It is listed with automatic transmission and dry clutch notes, plus a 3 year passenger / 1 year commercial warranty, which makes it a practical replacement option where the original unit is worn or fails.

Measured details such as the 106mm mount centres, 205mm overall length, 40mm pinion diameter, and 60mm pinion at rest are useful for confirming the physical fit against the existing starter and mounting points. These details matter just as much as the make and model reference when checking compatibility.

Key Features

• 12V starter motor
• 13 tooth pinion
• Counter-clockwise rotation
• Hitachi style unit
• New replacement starter motor
• 2 hole starter mount

Specifications

• Part number: HXS087
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CCW
• Number of teeth: 13
• Mount centres A: 106mm

Verified fitment and application notes

• Nissan X-Trail T30 with QR25DE engine
• Nissan X-Trail T31 with QR25DE engine
• Fitment preview also references Nissan Elgrand applications
• Fitment preview also references Nissan NV350 applications
• Fitment preview also references Nissan NV350 / Caravan applications

Application and Buying Notes

Before ordering, match the part number HXS087 and check the starter’s physical details against the removed unit, especially the 12V rating, 13 tooth pinion, CCW rotation, 106mm mount centres, and 2 hole starter mount. Those points are the most useful checks when confirming a replacement starter motor.

The Hitachi style reference is important because starter motors can look similar while still differing in mounting, pinion position, or rotation. The 75mm flange diameter, 205mm overall length, and 60mm pinion at rest are practical measurements to compare with the original unit if you are replacing a starter that is no longer readable by part number.

Warranty cover is listed separately for passenger and commercial use, with 3 years for passenger applications and 1 year for commercial use. If the starter is being fitted to a commercial vehicle, the shorter warranty period applies, so it is worth confirming how the vehicle is used before purchase.

If you are comparing options, focus on the specifications that affect fit and operation first: voltage, tooth count, rotation, mount style, and physical dimensions. Power rating at 1.4kW and weight at 3.62kg are also useful reference points, but they should be checked alongside the mounting and application details rather than used on their own.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS087 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Number of Teeth 13, Pinion at Rest 60mm, Power Rating 1.4kW, Suits Unit Make Hitachi, Note Automatic Transmission, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. HXS087, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Hitachi Style, Flange Diameter 75mm, Mount Hole Diameter 10 / 13, Overall Length 205mm, Pinion Diameter 40mm.

OEX Starter Motor 12V 13Th CCW Hitachi Style. Part number HXS087 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS087, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN NV350, NISSAN NV350 / CARAVAN. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number HXS087, the 12V 13 tooth CCW specification, and the application details for your vehicle before ordering. Starter motor compatibility should always be checked against the engine code, transmission type, and mounting measurements on the existing unit.

FAQ

What vehicle is this starter motor listed for?

It is listed to suit Nissan X-Trail T30 and T31 models with the QR25DE engine. The fitment preview also references Nissan Elgrand, Nissan NV350, and Nissan NV350 / Caravan applications.

What are the main electrical and rotation details?

This is a 12V starter motor with a 1.4kW power rating and counter-clockwise rotation. It has 13 teeth on the pinion.

Is this a new or remanufactured unit?

It is listed as new.

What mounting details are provided?

The starter has a 2 hole mount type, 106mm mount centres, a 75mm flange diameter, and mount hole diameter listed as 10 / 13.

What warranty applies to this unit?

The listed warranty is 3 years for passenger use and 1 year for commercial use.

What should I check before buying?

Confirm part number HXS087, the 12V rating, 13 tooth count, CCW rotation, Hitachi style, and the physical measurements against the original starter and vehicle application.
