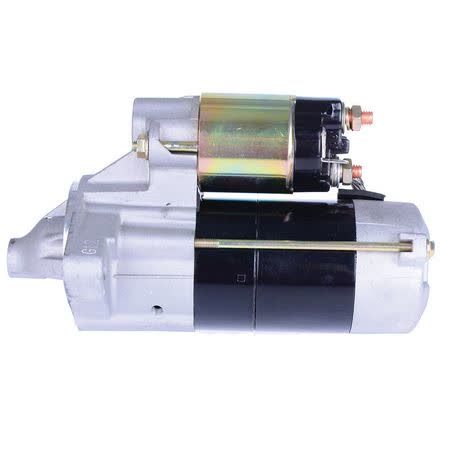

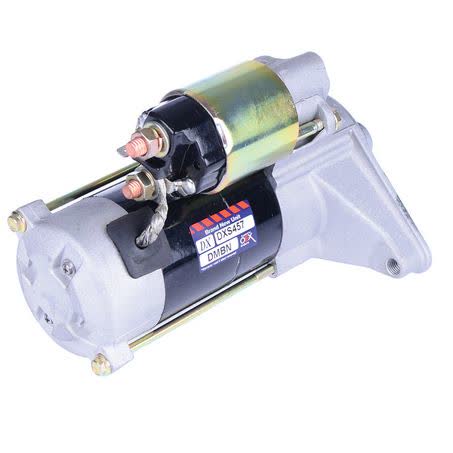

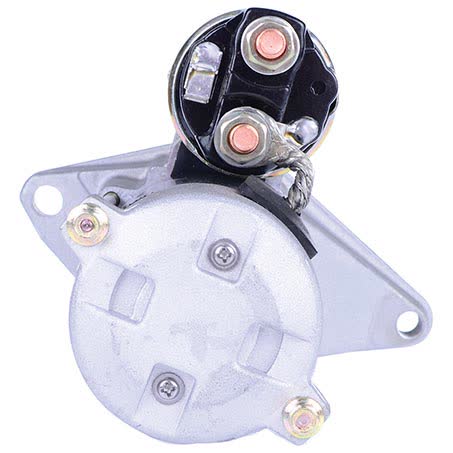

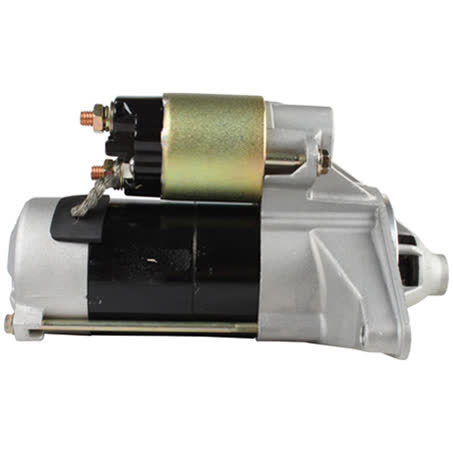

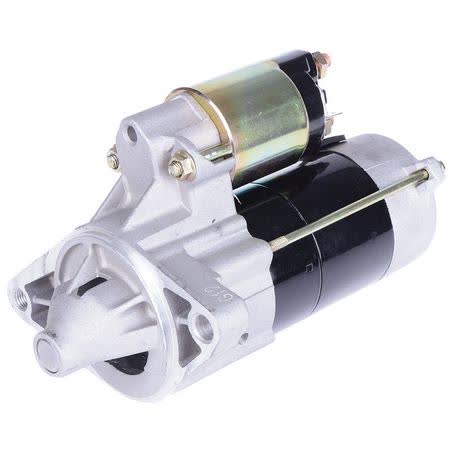

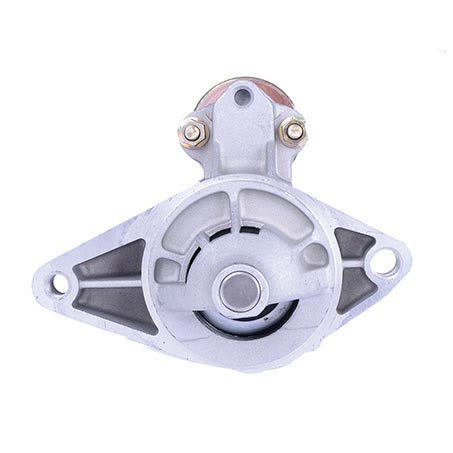

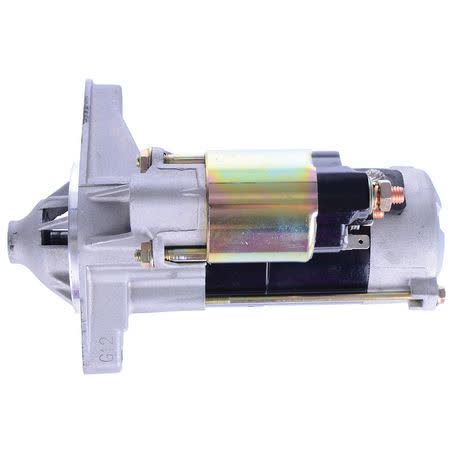

OEX Starter Motor 12V 0.8KW 8T CW Denso Style DXS457

The OEX starter motor DXS457 is a new 12V unit with clockwise rotation, 8 teeth, and a 0.8kW power rating. It is described as Denso style and suits Denso applications, so the part number and key dimensions are the main checkpoints when matching it to a vehicle.

Physical measurements include a 132mm mount centre, 74mm flange diameter, 200mm overall length, and M10 / 10 mount hole diameter. The starter uses a 2-hole mount, has a 29mm pinion diameter, and a pinion at rest of 4mm, which are all useful details when confirming replacement suitability.

This OEX starter motor is listed as new and weighs 3.32kg. OEX states a 3 year warranty for passenger use and 1 year for commercial use, which gives useful context for buyers comparing replacement starter motors for rotating electrical applications.

Key Features

• 12V starter motor
• Clockwise rotation
• 8-tooth pinion
• 0.8kW power rating
• Denso style, suits Denso units
• New unit

Specifications

• Voltage: 12V
• Power rating: 0.8kW
• Rotation: CW
• Number of teeth: 8
• Suits unit make: Denso
• Starter mount type: 2 hole
• Mount centres A: 132mm
• Flange diameter: 74mm

Verified application groups

• Daihatsu Applause
• Daihatsu Charade
• Daihatsu Feroza
• Daihatsu Pyzar
• Daihatsu Terios
• Toyota MR2
• Toyota Porte
• Toyota Ractis

Application and Buying Notes

Check the part number DXS457 first, then compare the 12V electrical setup, clockwise rotation, and 8-tooth pinion against the original starter motor being replaced. These details matter just as much as the general vehicle make, because the same model range can use different starter configurations.

Measure the mounting points before ordering. This unit has 132mm mount centres, a 74mm flange diameter, a 2-hole starter mount, and M10 / 10 mount hole diameter. If those dimensions do not match the existing unit or mounting face, it is not the right replacement.

The Denso style identification and the stated suitability for Denso applications are important compatibility checks, but they do not replace a direct visual and part-number comparison. The 200mm overall length, 29mm pinion diameter, and 4mm pinion at rest are all useful reference points when comparing old and new units.

Because this is a new starter motor, the listed warranty is 3 years for passenger use and 1 year for commercial use. That warranty detail is helpful when comparing replacement options, but fitment still needs to be confirmed carefully against the vehicle application and the original starter specifications.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS457 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 132mm, Number of Teeth 8, Pinion at Rest 4mm, Power Rating .8kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.32kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS457, Brand OEX, Description OEX Starter Motor 12V 8Th CW Denso Style, Flange Diameter 74mm, Mount Hole Diameter M10 / 10, Overall Length 200mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Denso Style. Part number DXS457 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS457, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990, DAIHATSU APPLAUSE 1991, TOYOTA MR2, TOYOTA MR2 1999. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the DXS457 part number, the 12V CW Denso style specification, and the mounting and pinion measurements before purchase.

FAQ

What is the part number for this starter motor?

The part number is DXS457. For this listing, part number DXS457 is the main reference point. Listed voltage is 12. Published fitment references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number DXS457 is the main reference point. Listed voltage is 12. Published fitment references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is clockwise rotation, shown as CW. For this listing, part number DXS457 is the main reference point. Listed voltage is 12. Published fitment references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number DXS457 is the main reference point. Listed voltage is 12. Published fitment references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990. These details should still be checked against the original unit before ordering.

What starter style does it suit?

It is listed as Denso style and suits Denso unit make. For this listing, part number DXS457 is the main reference point. Listed voltage is 12. Published fitment references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990. These details should still be checked against the original unit before ordering.

What warranty is listed for this OEX starter motor?

OEX lists a 3 year warranty for passenger use and a 1 year warranty for commercial use. For this listing, part number DXS457 is the main reference point. Listed voltage is 12. Published fitment references include DAIHATSU APPLAUSE, DAIHATSU APPLAUSE 1989, DAIHATSU APPLAUSE 1990. These details should still be checked against the original unit before ordering.
