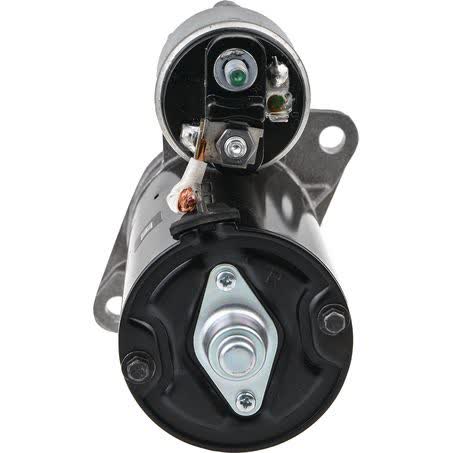

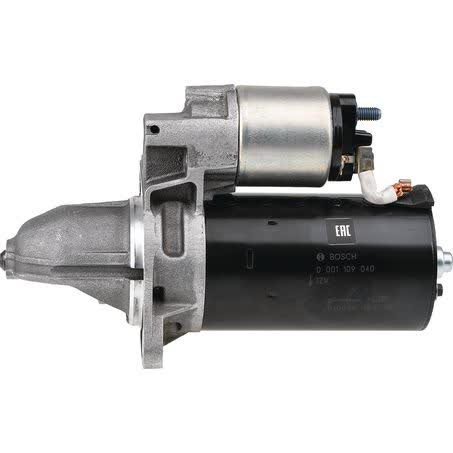

Bosch Starter Motor 12V 9 Tooth CW 1.8KW Part No. 0001109040

Bosch starter motor, 12V, 9 tooth, clockwise rotation, part number 0001109040. This is a new starter motor with a 1.8kW power rating, 2-hole starter mount, and a self-supporting design for applications that match those dimensions and configuration details.

The unit has a 73mm flange diameter, 119mm mount centres, 11mm mount hole diameter, and 255mm overall length. It is listed with 9 teeth, a 25mm pinion diameter, and 40mm pinion at rest, so the physical and electrical match should be checked carefully before ordering.

This Bosch unit is made in Hungary and carries a one year warranty. It is described as suitable for Land Rover applications including 110/127, Defender, Discovery and Range Rover references in the provided fitment data, but confirmation against the vehicle application and the part number remains essential.

For buyers replacing an existing starter, the key checks are voltage, rotation, tooth count, flange and mount dimensions, and whether the vehicle uses a dry clutch starter arrangement. Those details matter as much as the vehicle model name when identifying the correct part.

Key Features

• Bosch starter motor
• 12V electrical system
• 9 tooth pinion
• Clockwise rotation
• 1.8kW power rating
• New unit

Specifications

• Part No.: 0001109040
• Brand: Bosch
• Type: Starter motor
• Voltage: 12V
• Power Rating: 1.8kW
• Rotation: CW
• Number of Teeth: 9
• Starter Mount Type: 2 hole

Known application groups

• Land Rover 110/127
• Land Rover Defender
• Land Rover Discovery
• Land Rover Range Rover

Application and Buying Notes

Before ordering, compare the part number 0001109040 with the starter already fitted to the vehicle, then check the key physical details: 12V, 9 teeth, clockwise rotation, 73mm flange diameter, 119mm mount centres, 11mm mount holes, and 255mm overall length. Matching the vehicle family alone is not enough if the mounting pattern or pinion details differ.

The 1.8kW rating gives a useful reference when comparing against the current starter, particularly where there has been a previous replacement or conversion. The 25mm pinion diameter and 40mm pinion at rest are also important measurements for confirming correct engagement and fitment layout.

For Land Rover applications, the provided fitment data includes 110/127, Defender, Discovery and Range Rover references. Use that as a guide only and verify the exact model, year and existing starter details before purchase, especially on vehicles that may have had engine or electrical changes over time.

This unit is sold as a new Bosch starter motor and includes a one year warranty. If you are replacing a failed starter, inspect the mounting face, electrical connections and surrounding space for signs of damage or wear, because those issues can affect how the replacement starter sits and operates even when the part number is correct.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 0001109040 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 119mm, Number of Teeth 9, Pinion at Rest 40mm, Power Rating 1.8kW, Suits Unit Make Bosch, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Number of Thread Bores 0, Starter Type Self-supporting, Connecting Angle [Degree] 50, Packaging width 18, Manufactured in Hungary, Weight 3.98kg, Product Group 1 ROTATING ELECTRICAL, Part No. 0001109040, Brand BOSCH, Description Bosch Starter Motor 12V 9Th CW.

Bosch Starter Motor 12V 9Th CW. Part number 0001109040 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 0001109040, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984, LAND ROVER 110/127 1985. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number 0001109040 and the listed dimensions, rotation, tooth count, voltage, and mounting details before purchase. Vehicle model names alone are not enough to confirm the correct starter motor.

FAQ

What is the part number for this Bosch starter motor?

The part number is 0001109040. For this listing, part number 0001109040 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 0001109040 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number 0001109040 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984. These details should still be checked against the original unit before ordering.

What is the rotation of this starter motor?

It is clockwise rotation, noted as CW. For this listing, part number 0001109040 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984. These details should still be checked against the original unit before ordering.

Which vehicle groups are listed in the fitment data?

The provided fitment data lists Land Rover 110/127, Defender, Discovery and Range Rover references. For this listing, part number 0001109040 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984. These details should still be checked against the original unit before ordering.

What should I check before buying this starter motor?

Check the part number 0001109040, the 12V rating, 9 tooth pinion, clockwise rotation, 2-hole mount, 119mm mount centres, 73mm flange diameter, and 255mm overall length against the existing unit and application details. For this listing, part number 0001109040 is the main reference point. Listed voltage is 12. Published fitment references include LAND ROVER 110/127, LAND ROVER 110/127 1983, LAND ROVER 110/127 1984. These details should still be checked against the original unit before ordering.
