OEX Starter Motor 12V 10T CCW Bosch Style BXS0144

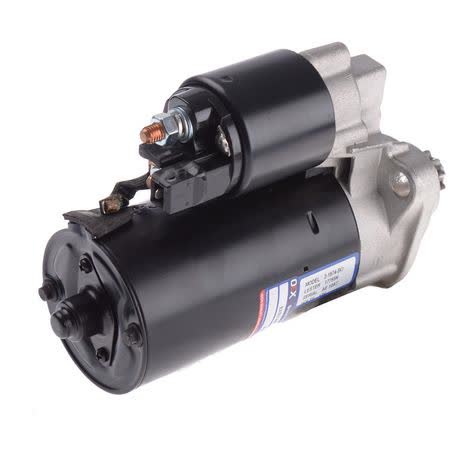

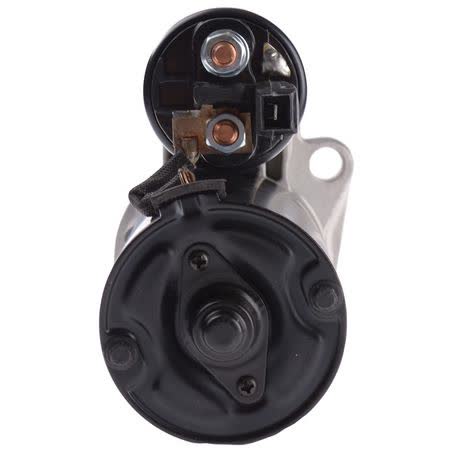

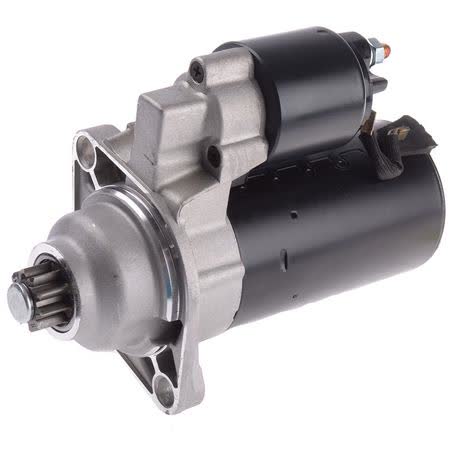

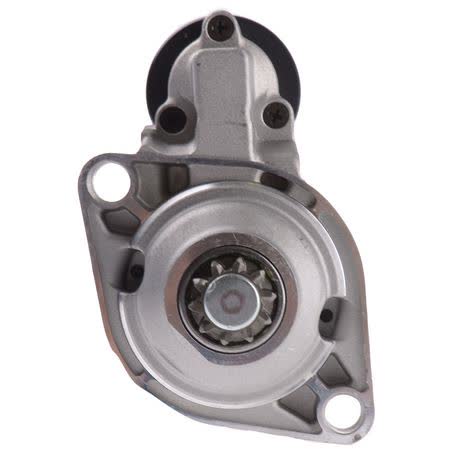

The OEX BXS0144 is a new 12V starter motor with 10 teeth, counter-clockwise rotation, and a Bosch style fitment profile. It is listed as a 2kW unit with a 76mm flange diameter, 112mm mount centres, and a 2 hole starter mount type, so matching the physical dimensions and mounting layout is important before purchase.

This starter motor suits Bosch applications and uses a 28mm pinion diameter with the pinion at rest measured at 53mm. The unit is supplied new, weighs 4.538kg, and is intended for dry clutch applications, which is another useful check when comparing against the original part.

OEX lists this starter motor under part number BXS0144 and describes it as part of its rotating electrical range. The warranty shown is 3 years for passenger vehicle use and 1 year for commercial use, so the intended vehicle application matters when reviewing the warranty terms and choosing the correct replacement.

Key Features

• 12V starter motor
• 10-tooth pinion
• Counter-clockwise rotation
• Bosch style / suits Bosch unit make
• 2kW power rating
• New unit

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: BXS0144
• Voltage: 12V
• Number of teeth: 10
• Rotation: CCW
• Power rating: 2kW
• Flange diameter: 76mm

Fitment guidance

• Suits Bosch applications
• Use the part number BXS0144 to compare against the original starter motor
• Check that the vehicle requires a 12V starter motor with 10 teeth and CCW rotation
• Confirm the mounting layout matches the 2 hole starter mount type and 112mm mount centres
• Check the flange diameter of 76mm, mount hole diameter of 12mm, and pinion diameter of 28mm against the existing unit
• Confirm the application is for a dry clutch setup

Application and Buying Notes

The key checks on this starter are the part number BXS0144, 12V system voltage, 10-tooth pinion, and CCW rotation. Those details need to line up with the original unit, because starter motors can look similar while differing in rotation, tooth count, or mounting pattern.

The mounting measurements are just as important here. This unit is listed with 112mm mount centres, a 76mm flange diameter, 12mm mount hole diameter, and a 2 hole starter mount type, so comparing those dimensions with the removed starter is a practical way to reduce the risk of ordering the wrong part.

It is also worth confirming the vehicle uses a Bosch style starter and that the application is for a dry clutch arrangement. The pinion diameter is 28mm and the pinion at rest is 53mm, which are useful reference points when checking interchange against the original starter motor.

The warranty listing is 3 years for passenger vehicle use and 1 year for commercial use. If the vehicle is used commercially, the warranty term is different, so it is sensible to confirm how the vehicle is classified before fitting the part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0144 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Number of Teeth 10, Pinion Diameter 28mm, Rotation CCW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0144, Brand OEX, Description OEX Starter Motor 12V 10Th CCW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter 12, Pinion at Rest 53mm, Power Rating 2kW, Suits Unit Make Bosch.

OEX Starter Motor 12V 10Th CCW Bosch Style. Part number BXS0144 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0144, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 1997, AUDI A3 1998, AUDI A3 1999, JEEP PATRIOT, JEEP PATRIOT 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number BXS0144, the Bosch style application, and the listed mounting and electrical specifications before ordering. Do not rely on appearance alone, as starter motor rotation, tooth count, flange size, and mount centres must match the vehicle application.

FAQ

What is the part number for this starter motor?

The part number listed is BXS0144. For this listing, part number BXS0144 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS0144 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 10 teeth. For this listing, part number BXS0144 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is listed as counter-clockwise, or CCW. For this listing, part number BXS0144 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It uses a 2 hole starter mount type, with 112mm mount centres and a 76mm flange diameter. For this listing, part number BXS0144 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger vehicle use and 1 year for commercial use. For this listing, part number BXS0144 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.
