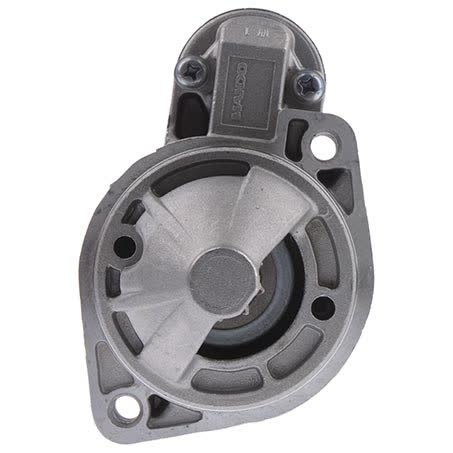

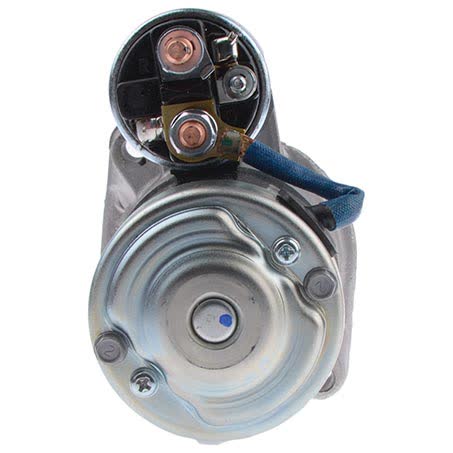

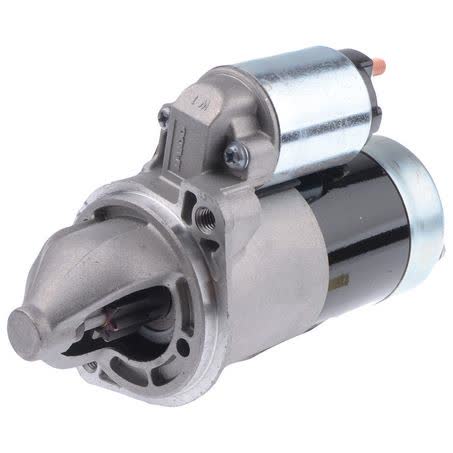

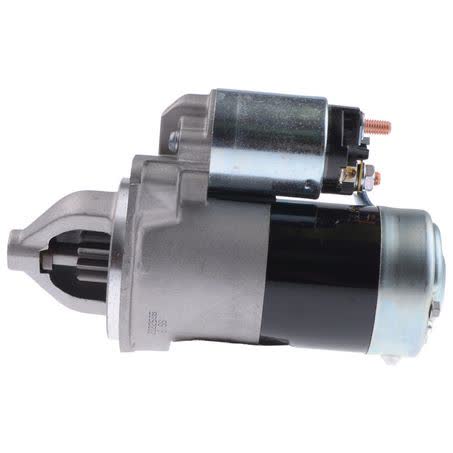

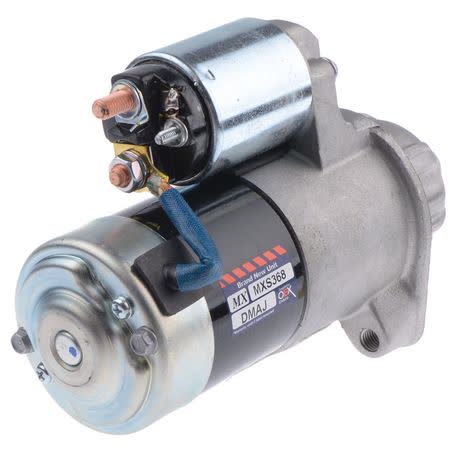

OEX Starter Motor 12V 9T CW Mitsubishi Style MXS368

The OEX starter motor listed here is a 12V unit with 9 teeth, clockwise rotation and a 1.2kW power rating. It is identified as part number MXS368 and is supplied as a new starter motor for the Australian automotive aftermarket.

Key physical details include a 2-hole starter mount, 105mm mount centres, 83mm flange diameter, M10 mount hole diameter and an overall length of 220mm. The pinion measures 26mm in diameter and sits 25mm at rest, which are useful checks when comparing against the removed unit.

This starter motor is marked as suitable for Mitsubishi applications and the supplied fitment information also references Mercedes-Benz passenger and commercial models. Because starter fitment can vary by application detail, the part number, mounting layout and electrical specification should be checked carefully before ordering.

Key Features

• 12V starter motor
• 9-tooth pinion
• Clockwise rotation
• 1.2kW power rating
• New unit
• 2-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 9
• Part number: MXS368
• Starter mount type: 2 hole

Fitment information supplied

• Mitsubishi application support is stated in the product details.
• Supplied fitment references also include Mercedes-Benz applications, with grouped listings for C-Class, CLK, MB, SLK, Sprinter 2-T, Sprinter 3-T, Sprinter 4-T and Vito.
• Sample application data includes Mercedes-Benz C-Class model years 1996 through 2006.
• Fitment should still be confirmed against the removed starter, the mounting pattern, the electrical specification and the part number MXS368 before purchase.

Application and Buying Notes

When comparing this starter, start with the verified details: 12V, 9 teeth, clockwise rotation and 1.2kW output. Those four checks, together with the 2-hole mounting pattern and 105mm mount centres, are usually the fastest way to rule a unit in or out before you go any further.

Physical dimensions matter on starter motors, especially where clearance is tight. This unit is 220mm long, has an 83mm flange diameter, M10 mount holes and a 26mm pinion with 25mm pinion at rest, so matching the removed unit’s shape and mounting layout is just as important as matching the brand name.

The listing identifies the unit as OEX part number MXS368 and notes a Mitsubishi style application, with Mercedes-Benz fitment references also supplied. Because starter applications can differ between model years, driveline setups and engine variants, confirm the vehicle application carefully rather than relying on vehicle badge alone.

Warranty support is listed as 3 years for passenger applications and 1 year for commercial applications. If you are fitting to a work vehicle, or you are replacing a starter after repeated starting faults, it is worth checking the charging system, battery condition and cable connections before fitting the replacement unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS368 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 25mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.2kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS368, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style, Flange Diameter 83mm, Mount Hole Diameter M10, Overall Length 220mm, Pinion Diameter 26mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Mitsubishi Style. Part number MXS368 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS368, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997, MERCEDES-BENZ C-CLASS 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking part number MXS368, the 12V 9-tooth clockwise specification, the 2-hole 105mm mount centres, and the exact vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The supplied part number is MXS368. For this listing, part number MXS368 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number MXS368 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 9 teeth. For this listing, part number MXS368 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise, shown as CW. For this listing, part number MXS368 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a 2-hole starter mount with 105mm mount centres and M10 mount holes. For this listing, part number MXS368 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty listed is 3 years for passenger applications and 1 year for commercial applications. For this listing, part number MXS368 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 1996, MERCEDES-BENZ C-CLASS 1997. These details should still be checked against the original unit before ordering.
