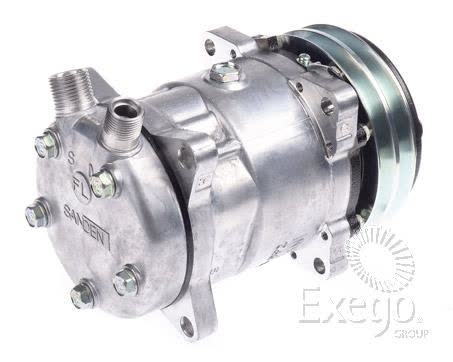

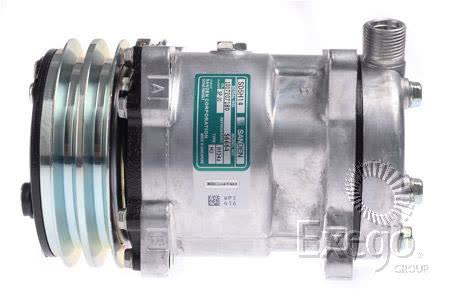

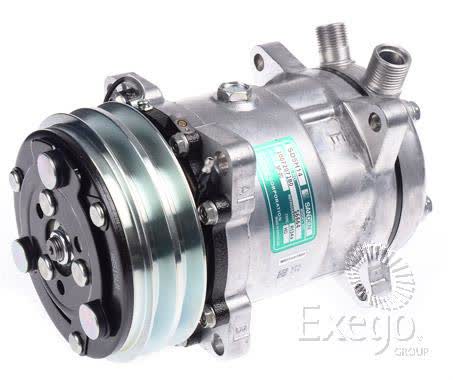

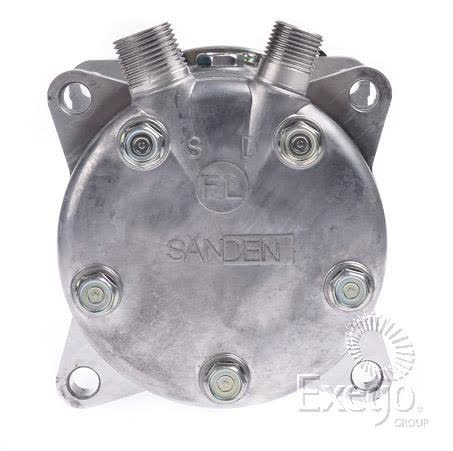

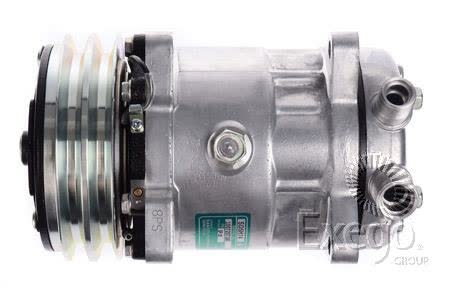

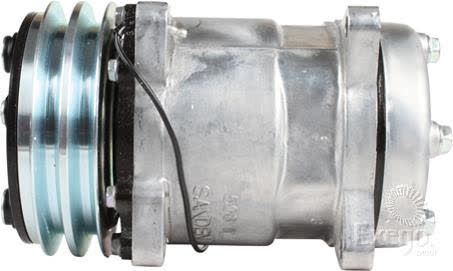

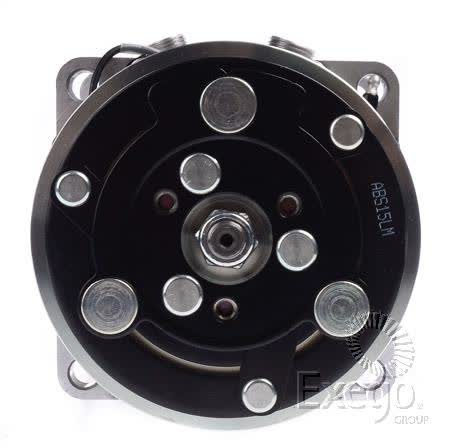

Sanden Air Conditioning Compressor 12V Ear Mount SD5H14HD Part No. CXS6664

The Sanden SD5H14HD air conditioning compressor is a 12V ear mount unit supplied under part number CXS6664. It is listed with original equipment number 75R8382, 132mm clutch diameter, AA pulley section, and vertical O-ring fitting type, so it is intended for applications that match those mounting and connection details.

This compressor is specified with a gauge line of 39.55mm, oil capacity of 210ml, and oil type SP 20. The unit weighs 7.78kg and is supplied without a dust cover. Those details matter when checking space, hose orientation, and the exact compressor style already fitted to the vehicle or machine.

Application notes point to Kenworth fitments including C510 QSK 19L, K100E/L700 60 Series 14.0L from 01/1989 onwards, K104 60 Series 12.7L, T604 14.6L, T350 ISC 8.3L from 01/2001 to 01/2008, plus T300 ISC 8.3L, T401 L10 10.0L, and T904 ISX 14.9L from 01/1996 to 12/2004. The key check is to compare the part number, mounting style, and compressor series before ordering.

Sanden identifies this unit as series SD5H14HD, with a one year warranty and a single-piece supply unit of measure. If you are replacing a failed compressor, matching the ear mount configuration and the O-ring fitting arrangement is just as important as matching the vehicle model name.

Key Features

• 12V Sanden air conditioning compressor
• Ear mount compressor design
• Series SD5H14HD
• Part number CXS6664
• Original equipment number 75R8382
• Vertical O-ring fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 12V
• Compressor mounting: Ear mount
• Series: SD5H14HD
• Part No.: CXS6664
• Original Equipment Number: 75R8382

Listed application details

• Kenworth C510 QSK 19L
• Kenworth K100E/L700 60 Series 14.0L from 01/1989 onwards
• Kenworth K104 60 Series 12.7L
• Kenworth T604 14.6L
• Kenworth T350 ISC 8.3L from 01/2001 to 01/2008
• Kenworth T300 ISC 8.3L
• Kenworth T401 L10 10.0L
• Kenworth T904 ISX 14.9L from 01/1996 to 12/2004

Application and Buying Notes

When checking this compressor for a replacement job, start with the hard identifiers: CXS6664, SD5H14HD, and OE number 75R8382. Those numbers are the safest way to confirm you are looking at the same compressor family, especially where a vehicle may have had previous repairs or non-original parts fitted.

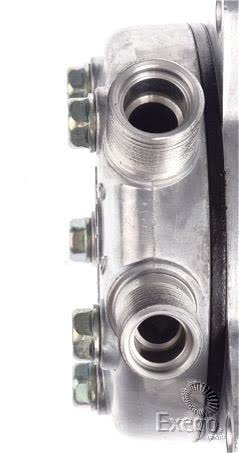

The mounting and connection details need equal attention. This unit is an ear mount compressor with a vertical O-ring fitting type, 132mm clutch diameter, AA pulley section, and a 39.55mm gauge line. If the bracket, clutch spacing, pulley section, or hose end does not match the current setup, the compressor may not be a direct swap.

The application notes cover specific Kenworth models and engine combinations, including C510 QSK 19L, K100E/L700 60 Series 14.0L from 01/1989 onwards, K104 60 Series 12.7L, T604 14.6L, T350 ISC 8.3L from 01/2001 to 01/2008, T300 ISC 8.3L, T401 L10 10.0L, and T904 ISX 14.9L from 01/1996 to 12/2004. Those references are useful, but the final check should always be made against the fitted compressor and the vehicle build details.

Because this compressor is supplied without a dust cover, it is worth confirming whether the existing arrangement uses one and whether that is required for the installation. The unit weighs 7.78kg, so handling and bracket support should be considered during replacement, particularly where access is tight or the old compressor has seized.

One year warranty is listed for this item. Even with that in place, the practical compatibility check remains the same: compare the part number, OE number, mounting style, clutch diameter, pulley section, and hose fitting style before buying, then confirm the job against the vehicle or machine application at the point of removal.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS6664 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 75R8382, Series SD5H14HD, Voltage 12, Gauge Line 39.55mm, Dust Cover Y/N No.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS6664, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD5H14HD, Clutch Diameter 132mm, Fitting Type Vertical O Ring, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP 20, Oil Capacity 210ml.

Sanden Air Conditioning Compressor 12V Ear Mount SD5H14HD. Part number CXS6664 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS6664, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using part number CXS6664, original equipment number 75R8382, and the listed SD5H14HD ear mount, vertical O-ring application details before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS6664.

What voltage is this Sanden compressor?

It is a 12V compressor.

What mounting style does it use?

It is listed as an ear mount compressor.

What fitting type is specified?

The fitting type is vertical O-ring.

Which oil type and oil capacity are listed?

The listed oil type is SP 20 and the oil capacity is 210ml.

What warranty is listed for this compressor?

A one year warranty is listed.
