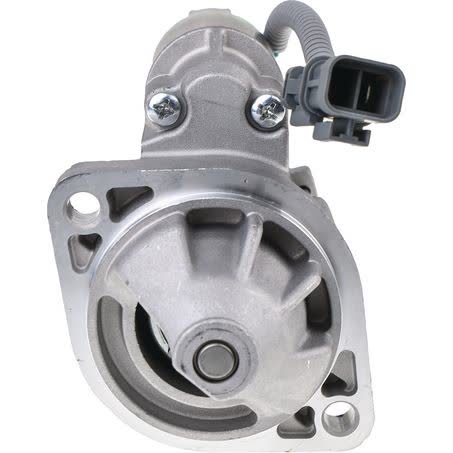

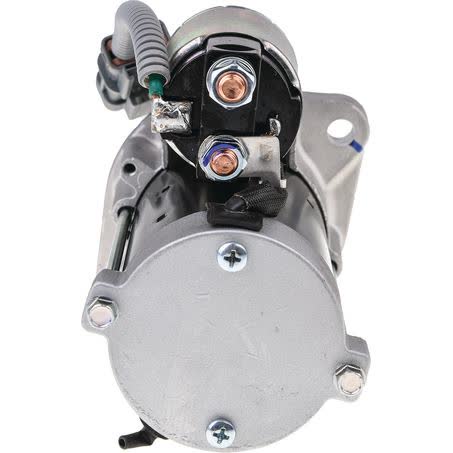

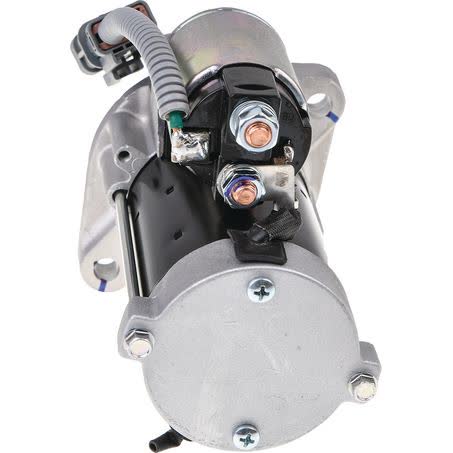

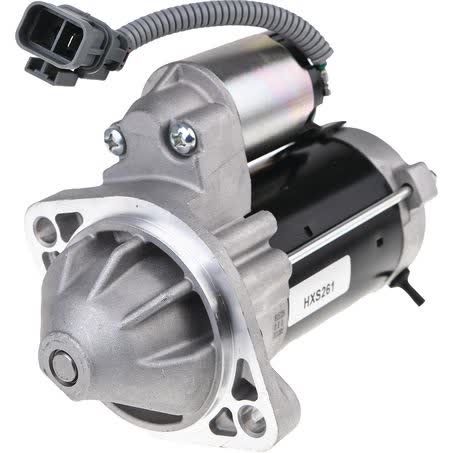

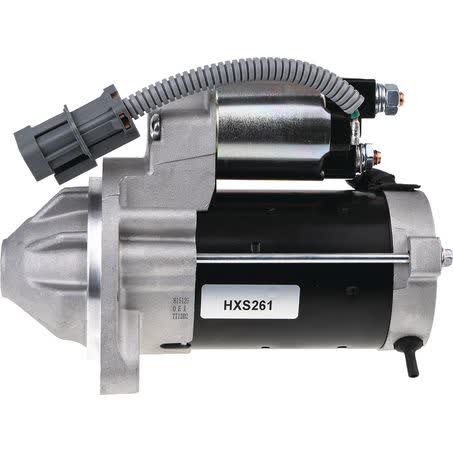

OEX Starter Motor 12V 9TH CW Hitachi Style HXS261

The OEX Starter Motor HXS261 is a 12V, clockwise rotation unit with 9 teeth, built in a Hitachi style to suit applications that call for this configuration. It is a new starter motor, not a remanufactured unit, and it carries a 1.4kW power rating with a 2-hole starter mount.

Key dimensions include a 110mm mount centres A measurement, 82mm flange diameter, 10mm mount hole diameter, 192mm overall length, 35mm pinion diameter and 12mm pinion at rest. The unit weighs 3.02kg and is listed as dry clutch compatible.

This starter motor is sold under part number HXS261 and is intended as a quality replacement option in the Australian automotive aftermarket. The OEX range is positioned for reliable replacement use where the application calls for a 12V Hitachi-style starter with the listed tooth count, rotation and mounting dimensions.

Key Features

• 12V starter motor
• 9-tooth pinion
• Clockwise rotation
• Hitachi style unit
• New starter motor
• 2-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: HXS261
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.4kW
• Starter mount type: 2 hole

Fitment guidance

• Listed fitment includes Ford Maverick.
• Listed fitment includes Komatsu FG35/FG45/FG46 applications.
• Listed fitment includes Massey Ferguson MF 1030 and MF 1035 applications.
• Listed fitment includes Nissan Industrial and Nissan Industrial Forklift applications.
• Listed fitment includes Nissan Navara and Nissan Patrol applications.
• Listed fitment includes TCM FG35.40 applications.

Application and Buying Notes

Before ordering, match the part number HXS261, the 12V rating, 9-tooth pinion, clockwise rotation and Hitachi style against the vehicle or machine currently fitted. Those details are the quickest way to avoid a mismatch when replacing a starter motor.

The mounting and size details matter as much as the electrical rating. This unit has a 2-hole mount, 110mm mount centres A, 82mm flange diameter, 10mm mount hole diameter and 192mm overall length, so the physical fit needs to align with the existing starter and bellhousing space.

The listed 1.4kW power rating and dry clutch application are relevant when checking replacement suitability. If the original unit differs in tooth count, rotation, pinion diameter or mount style, do not assume interchangeability even if the vehicle make appears in the fitment list.

Warranty coverage is 3 years for passenger use and 1 year for commercial use on this new unit. If the starter is for commercial, industrial or forklift use, confirm the application carefully before purchase so the warranty category and fitment details both make sense for your job.

For mixed-fitment items like this, the safest approach is to compare the existing starter’s tag, pinion count, rotation and dimensions with the listed measurements here. A close visual match is not enough on its own when the starter is a Hitachi-style unit with a specific 9-tooth configuration.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS261 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion at Rest 12mm, Power Rating 1.4kW, Suits Unit Make Hitachi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. HXS261, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 82mm, Mount Hole Diameter 10, Overall Length 192mm, Pinion Diameter 35mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number HXS261 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS261, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number HXS261 and the application details, including 12V, 9 teeth, CW rotation, Hitachi style, 2-hole mount and the stated dimensions, before ordering.

FAQ

What is the part number for this starter motor?

The part number is HXS261. For this listing, part number HXS261 is the main reference point. Listed voltage is 12. Published fitment references include FORD MAVERICK, FORD MAVERICK 1988, FORD MAVERICK 1989. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number HXS261 is the main reference point. Listed voltage is 12. Published fitment references include FORD MAVERICK, FORD MAVERICK 1988, FORD MAVERICK 1989. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number HXS261 is the main reference point. Listed voltage is 12. Published fitment references include FORD MAVERICK, FORD MAVERICK 1988, FORD MAVERICK 1989. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number HXS261 is the main reference point. Listed voltage is 12. Published fitment references include FORD MAVERICK, FORD MAVERICK 1988, FORD MAVERICK 1989. These details should still be checked against the original unit before ordering.

What rotation does it use?

It is clockwise rotation, shown as CW. For this listing, part number HXS261 is the main reference point. Listed voltage is 12. Published fitment references include FORD MAVERICK, FORD MAVERICK 1988, FORD MAVERICK 1989. These details should still be checked against the original unit before ordering.

What warranty applies to this unit?

The warranty listed is 3 years for passenger use and 1 year for commercial use. For this listing, part number HXS261 is the main reference point. Listed voltage is 12. Published fitment references include FORD MAVERICK, FORD MAVERICK 1988, FORD MAVERICK 1989. These details should still be checked against the original unit before ordering.
