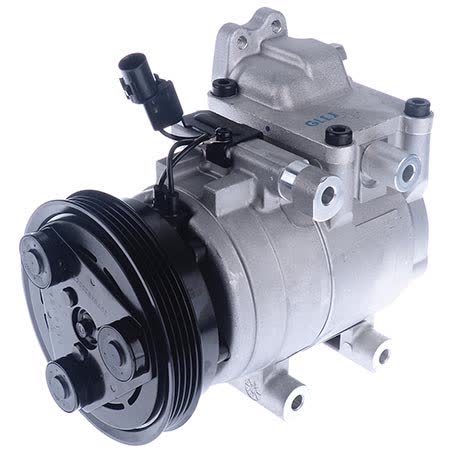

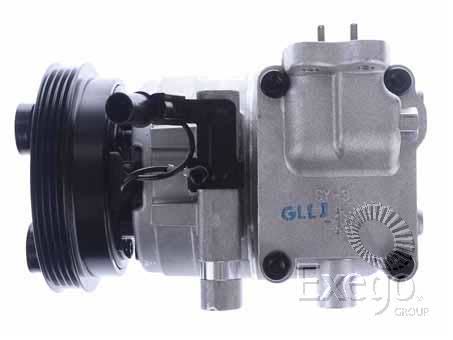

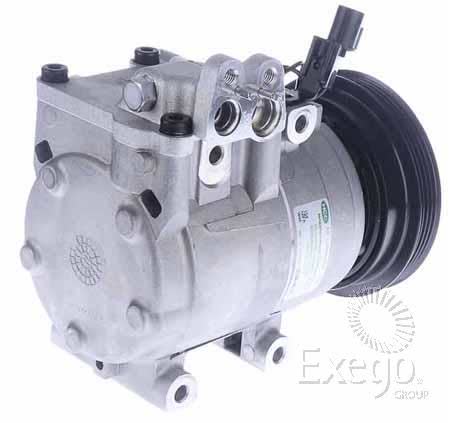

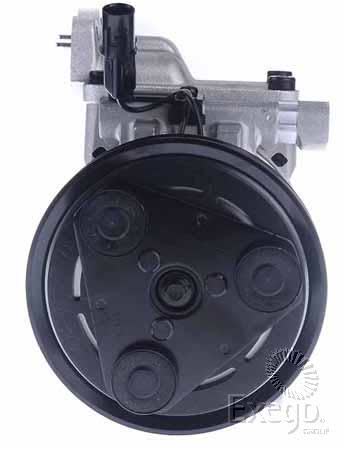

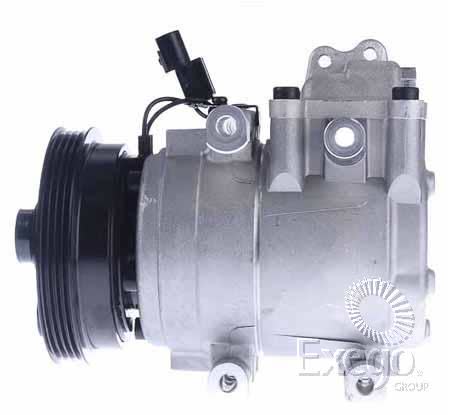

Hanon System HCC Air Conditioning Compressor 12V Direct Mount HS15 CXH029

This Hanon System HCC air conditioning compressor is a 12V direct mount HS15 unit, supplied under part number CXH029. It is listed with original equipment number 97701-2C100, 128mm clutch diameter, 4 groove pulley section, and a pad left hand fitting type.

The compressor is recorded with 150cc oil capacity and uses FD46XG oil. It is supplied as an each unit, weighs 7.3kg, and is noted as having no dust cover. These details matter when you are matching the compressor to the existing air conditioning setup and checking that the drive and mounting arrangement line up correctly.

Verified application details include Hyundai Elantra XD 1.8L and 2.0L from 01/2000 to 12/2006, and Hyundai Tiburon GK 2.0L from 03/2002 to 04/2004. The product is also shown against Halla unit make, which is useful when confirming the style of compressor already fitted to the vehicle.

Key Features

• 12V air conditioning compressor
• Direct mount HS15 series
• Part number CXH029
• Original equipment number 97701-2C100
• 128mm clutch diameter
• 4 groove pulley section

Specifications

• Brand: Hanon System
• Type: Air conditioning compressor
• Unit of measure: Each
• Warranty: One year
• Compressor mounting: Direct mount
• Series: HS15
• Voltage: 12V
• Clutch diameter: 128mm

Verified vehicle application

• Hyundai Elantra XD 1.8L and 2.0L, 01/2000 to 12/2006
• Hyundai Tiburon GK 2.0L, 03/2002 to 04/2004

Application and Buying Notes

Before ordering, match the part number CXH029 and check the original equipment number 97701-2C100 against the unit being replaced. On compressors, the mounting style, clutch diameter, pulley grooves and fitting type need to line up with the existing system, and this unit is listed as a direct mount HS15 with a 128mm clutch and 4 groove pulley.

The vehicle application is specific. The confirmed listings are Hyundai Elantra XD 1.8L and 2.0L from 01/2000 to 12/2006, and Hyundai Tiburon GK 2.0L from 03/2002 to 04/2004. If your vehicle is outside those ranges, do not assume compatibility from the brand or general compressor shape alone.

Oil details also matter on an air conditioning compressor. This unit is noted with 150cc oil capacity and FD46XG oil type, so the existing system should be checked carefully during replacement work. If the old compressor has failed, the condition of the system should still be assessed before installation so the replacement is not put straight into contaminated or unsuitable conditions.

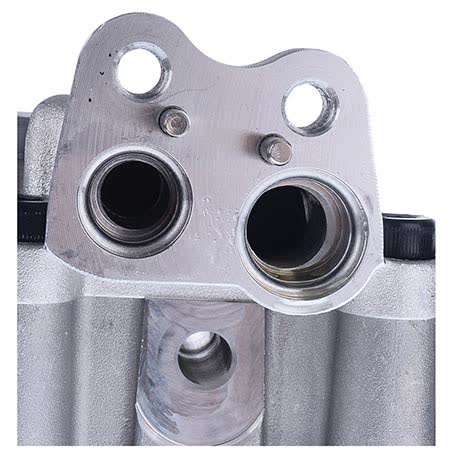

The 7.3kg weight, Halla unit make reference, and pad left hand fitting type are all useful cross-checks when comparing the old and new parts side by side. A compressor can look close at a glance but still differ in mounting or port arrangement, so checking these identifiers before purchase helps avoid delays and unnecessary returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXH029 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 97701-2C100, Series HS15, Voltage 12, Oil Capacity 150cc, Weight 7.3kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXH029, Brand HANON SYSTEM, Description HCC Air Conditioning Compressor 12V Direct Mount HS15, Clutch Diameter 128mm, Fitting Type Pad Left Hand, Pulley Section 4 Groove, Suits Unit Make Halla, Note Oil type: FD46XG, Dust Cover Y/N No.

HCC Air Conditioning Compressor 12V Direct Mount HS15. Part number CXH029 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXH029, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI ELANTRA, HYUNDAI ELANTRA 2000, HYUNDAI ELANTRA 2001, HYUNDAI ELANTRA 2002, KIA SPORTAGE, KIA SPORTAGE 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking the part number CXH029, original equipment number 97701-2C100, and the listed vehicle application details before ordering. If any mounting, pulley, or fitting detail differs from your existing unit, verify compatibility with your installer or parts interpreter before fitting.

FAQ

What vehicles are listed for this compressor?

The verified applications are Hyundai Elantra XD 1.8L and 2.0L from 01/2000 to 12/2006, and Hyundai Tiburon GK 2.0L from 03/2002 to 04/2004.

What is the part number?

The part number listed is CXH029.

What is the original equipment number?

The original equipment number listed is 97701-2C100.

What voltage is this compressor?

It is a 12V air conditioning compressor.

What mounting and pulley details are supplied?

It is listed as a direct mount HS15 compressor with a pad left hand fitting type, 128mm clutch diameter, and 4 groove pulley section.

What oil specification is noted?

The compressor is noted with 150cc oil capacity and oil type FD46XG.
