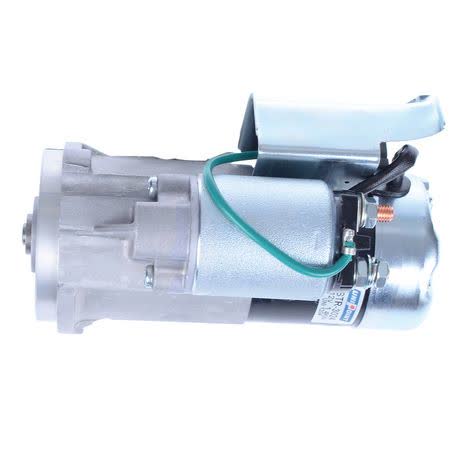

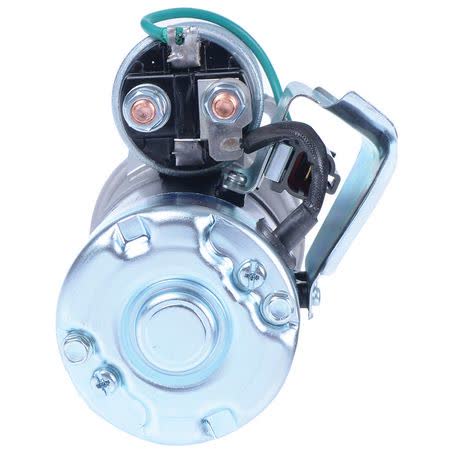

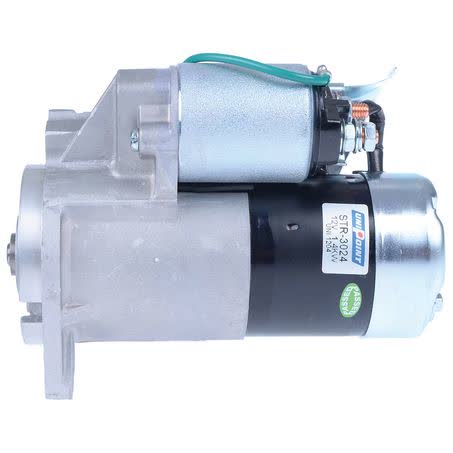

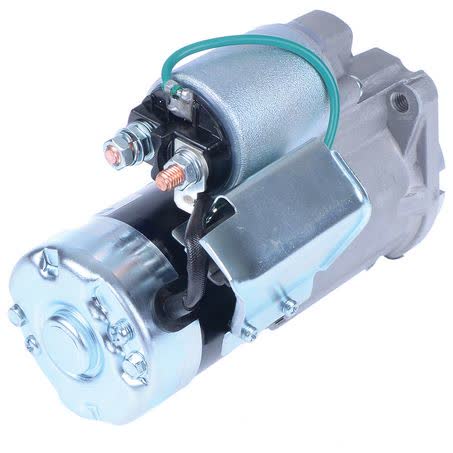

OEX Starter Motor 12V 9 Tooth CW Hitachi Style HXS060

The OEX HXS060 is a new 12V starter motor with clockwise rotation, a 9 tooth pinion and a 1.4kW power rating. It is listed as a Hitachi style unit with a 2 hole starter mount, 109mm mount centres and M10 mount hole diameter, so matching the physical mounting and electrical details is important before purchase.

This starter motor has an overall length of 210mm, a flange diameter of 82mm, a pinion diameter of 29mm and a pinion at rest measurement of 15mm. It weighs 4.053kg and is supplied as each unit. Those figures are useful when comparing the replacement against the original starter already fitted to the vehicle.

OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with manufacture in ISO certified factories. This unit is backed by a 3 year passenger or 1 year commercial warranty, which gives a clear warranty basis for buyers using the correct application details and part number.

Key Features

• 12V starter motor
• Clockwise rotation
• 9 tooth pinion
• Hitachi style application
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Part number: HXS060
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.4kW
• Starter mount type: 2 hole

Fitment guidance

• Fitment is listed against some Holden and Nissan applications, including Holden Jackaroo and Nissan 300ZX models across multiple years.
• Other fitment groups shown include Nissan Datsun 300C, Nissan Maxima, Nissan Maxima / Maxima QX, Nissan Navara, Nissan Pathfinder and Nissan Terrano.
• Use the part number HXS060 and the Hitachi style, 12V, 9 tooth, CW mounting details to confirm the correct replacement before ordering.

Application and Buying Notes

When checking this starter motor against the one on the vehicle, the most useful match points are the part number HXS060, the 12V system, clockwise rotation and the 9 tooth pinion. The 2 hole mounting pattern, 109mm mount centres and M10 mount holes also need to line up with the existing starter and bellhousing arrangement.

The physical size details matter as much as the electrical rating. This unit measures 210mm overall, has an 82mm flange diameter and a 29mm pinion diameter, with 15mm pinion at rest. If any of those figures differ from the original starter, it is worth rechecking the application before fitting.

Because fitment is listed across several Holden and Nissan groups, including Holden Jackaroo and Nissan 300ZX examples, the safest approach is to confirm the vehicle application, engine setup and starter style against the part number. Starter motors can look similar from the outside while differing in tooth count, rotation or mounting dimensions.

This is a new OEX starter motor, not a remanufactured unit, and it is supplied with a warranty of 3 years for passenger use or 1 year for commercial use. Make sure the intended use matches the warranty category and keep the installation details aligned with the product specifications if the vehicle is used commercially.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS060 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 109mm, Number of Teeth 9, Pinion at Rest 15mm, Power Rating 1.4kW, Suits Unit Make Hitachi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.053kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXS060, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 82mm, Mount Hole Diameter M10, Overall Length 210mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number HXS060 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS060, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982, HOLDEN JACKAROO 1983, NISSAN 300ZX, NISSAN 300ZX 1984. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using the HXS060 part number, the Hitachi style application, and the listed 12V, 9 tooth, clockwise, 2 hole mounting specifications before ordering.

FAQ

What is the part number for this starter motor?

The part number is HXS060. For this listing, part number HXS060 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number HXS060 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number HXS060 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW. For this listing, part number HXS060 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

This unit is listed as new. For this listing, part number HXS060 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number HXS060 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN JACKAROO, HOLDEN JACKAROO 1981, HOLDEN JACKAROO 1982. These details should still be checked against the original unit before ordering.
