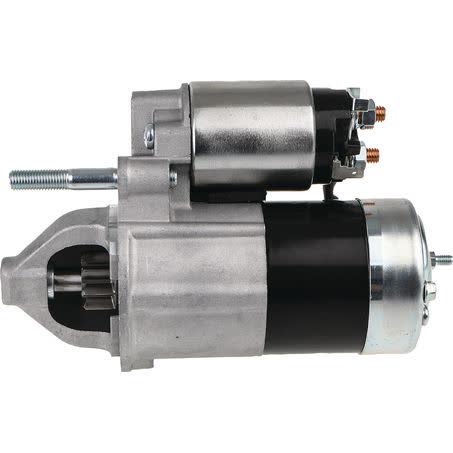

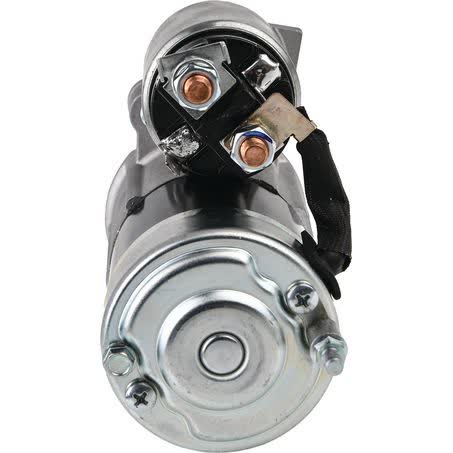

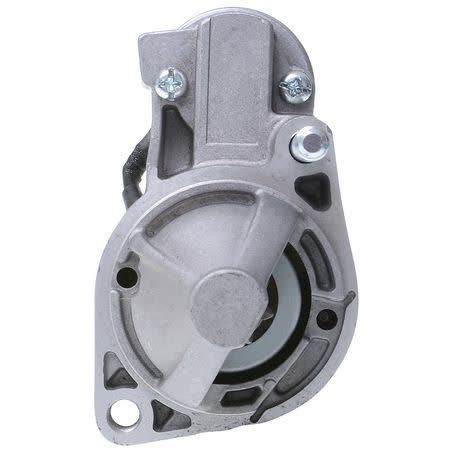

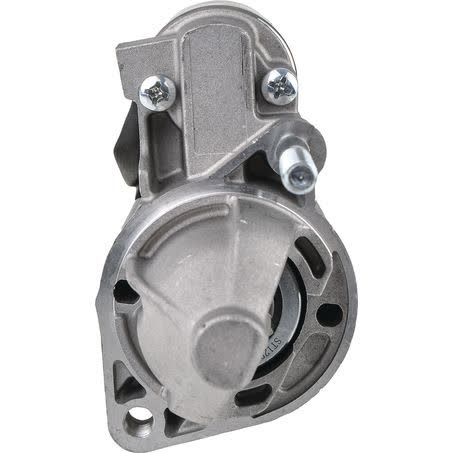

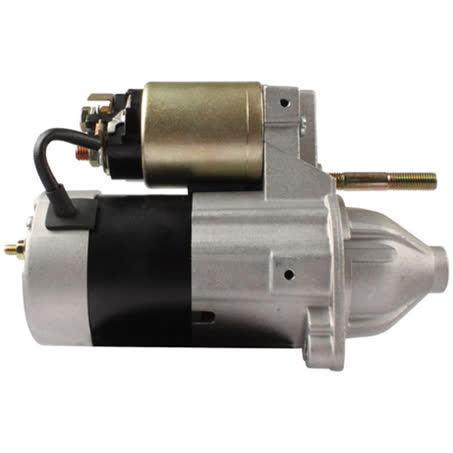

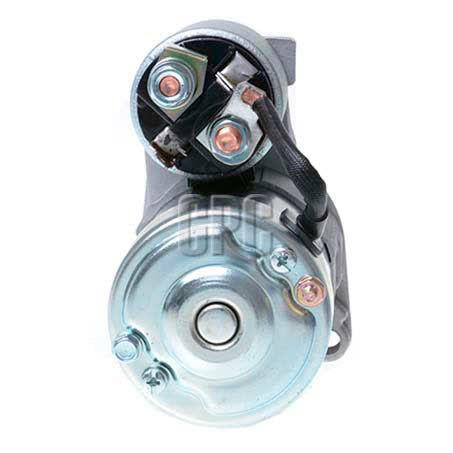

OEX Starter Motor 12V 8TH CW Mitsubishi Style MXS812

The OEX Starter Motor MXS812 is a 12V starter motor with 8 teeth, clockwise rotation and a Mitsubishi style fitment profile. It is a new unit, rated at 1.2kW, with a 2 hole starter mount and a 70mm flange diameter, making the key physical checks straightforward before purchase.

This starter motor has an overall length of 195mm, a pinion diameter of 28mm and a pinion at rest measurement of 17mm. The mount centres are listed at 98mm and the mount hole diameter is M10x1.25 / 10, so matching the mounting pattern and hardware is an important part of checking suitability.

OEX products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with production from ISO certified factories. This unit is backed by a 3 year passenger warranty and 1 year commercial warranty, which gives a clear warranty reference for private and business use.

The part number is MXS812 and the unit is sold each. As with any starter motor purchase, the safest approach is to confirm the part number, tooth count, rotation, voltage and mounting dimensions against the existing unit before ordering.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• 1.2kW power rating
• New unit
• Mitsubishi style application

Specifications

• Brand: OEX
• Part No.: MXS812
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 8
• Flange diameter: 70mm
• Overall length: 195mm

Fitment guidance

• Suits unit make: Mitsubishi
• Fitment references include Hyundai Sonata, Hyundai Tiburon, Hyundai Trajet, Hyundai Tucson, Kia Sportage and related model years shown in the supplied application list.
• Application data also includes Hyundai Sonata 1998 to 2005, Hyundai Tiburon 2001 to 2002, and Kia Sportage 2005 to 2007.
• Confirm the existing starter has the same 12V specification, 8 tooth pinion, clockwise rotation and 2 hole mounting pattern before ordering.

Application and Buying Notes

Starter motors need to match more than just the vehicle badge, so the most useful checks on this OEX MXS812 are the 12V rating, 8 tooth pinion, clockwise rotation and 2 hole mount type. The 98mm mount centres, 70mm flange diameter and M10x1.25 / 10 mount hole diameter are practical measurements to compare against the old unit.

The Mitsubishi style description and the supplied fitment references point you in the right direction, but the safest confirmation is still the part number and the dimensions on the vehicle’s original starter. A unit that is close in appearance can still differ in tooth count, pinion position or mounting layout.

If you are replacing a starter on a Hyundai Sonata, Hyundai Tiburon, Hyundai Trajet, Hyundai Tucson or Kia Sportage application listed here, match the year and model information as closely as possible to your existing part. The product is new and weighs 2.74kg, which may also help when comparing against the removed unit.

For commercial use, the warranty is listed as 1 year, while passenger use is listed as 3 years. Keep the invoice and confirm the vehicle application before fitting, because starter motor compatibility depends on the exact combination of voltage, rotation, mounting pattern and drive gear specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS812 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 98mm, Number of Teeth 8, Pinion at Rest 17mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS812, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.25 / 10, Overall Length 195mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS812 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS812, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999, HYUNDAI SONATA 2000, KIA SPORTAGE, KIA SPORTAGE 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking part number MXS812, 12V specification, 8 tooth count, clockwise rotation and the mounting dimensions against the existing starter motor and vehicle application before purchasing.

FAQ

What is the part number for this starter motor?

The part number is MXS812. For this listing, part number MXS812 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

This unit is listed as new. For this listing, part number MXS812 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999. These details should still be checked against the original unit before ordering.

What voltage is the starter motor?

It is a 12V starter motor. For this listing, part number MXS812 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS812 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

The rotation is clockwise (CW). For this listing, part number MXS812 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999. These details should still be checked against the original unit before ordering.

What warranty is listed for this part?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS812 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1998, HYUNDAI SONATA 1999. These details should still be checked against the original unit before ordering.
